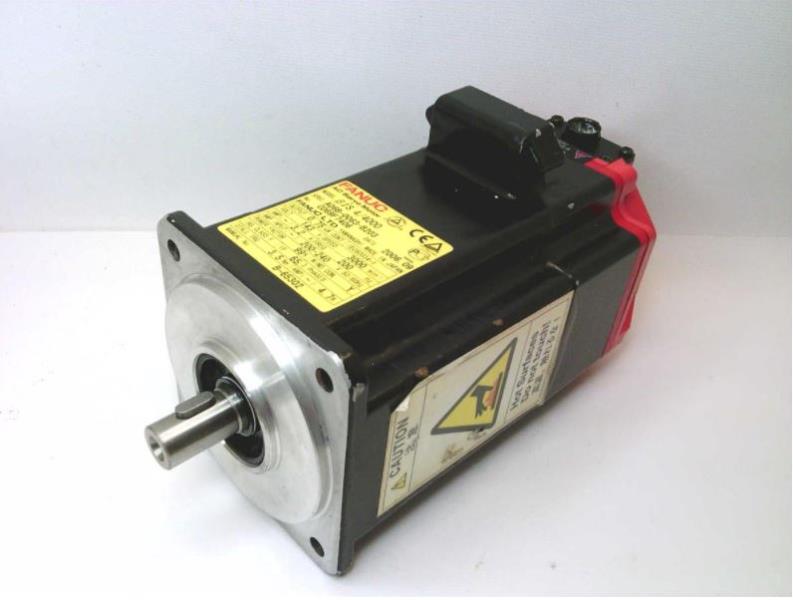

FANUC A06B-0063-B203#0100 AC Servo Motor
SKU: A06B-0063-B203#0100
This product is not available for online purchase.
Use Request a quote to get pricing.
Description
The A06B-0063-B203#0100 - SEALED AC SERVO MDL BiS4/4000 exemplifies high-quality design and reliable performance for precision applications in industrial settings. This servo motor features a sealed construction for protection against environmental contaminants, along with a straight (ST) configuration and keyed shaft for effective compatibility and installation. Its B128iA incremental encoder enhances positional accuracy and control, resulting in improved efficiency and reduced operational errors. Part of the A06B-0063 series, this unit is available for purchase with core exchange required and repair services offered. It is important to note that the warranty does not cover damage from liquids. Inquire about lead times upon request for this robust solution tailored for demanding applications.
-
Buying Options
-
Description
The A06B-0063-B203#0100 - SEALED AC SERVO MDL BiS4/4000 exemplifies high-quality design and reliable performance for precision applications in industrial settings. This servo motor features a sealed construction for protection against environmental contaminants, along with a straight (ST) configuration and keyed shaft for effective compatibility and installation. Its B128iA incremental encoder enhances positional accuracy and control, resulting in improved efficiency and reduced operational errors. Part of the A06B-0063 series, this unit is available for purchase with core exchange required and repair services offered. It is important to note that the warranty does not cover damage from liquids. Inquire about lead times upon request for this robust solution tailored for demanding applications.
-
Part Number Breakdown
Part number breakdown — A06B-0063-B203#0100
βi Series AC Servo Motor
Motor model 0063βiS 4/4000 Shaft & brake (△) 2Straight shaft with a key groove Pulse coder (▽) 3Pulsecoder βA 64B(βiS 0.2, βiS 0.3) / Pulsecoder βiA 64(βiS 0.4 to βiS 1) / Pulsecoder βiA 128(βiS 2 to βiS 22) Option suffix 0100IP67 specification Specifications
ratedOutputKw 0.75 maxSpeedRpm 4000 stallTorqueNm 3.5 stallCurrentArms 4.7 rotorInertiaKgCm2 5.15 weightKg 4.3 Alarm codes (141)
Motor-related alarms are displayed by the connected amplifier / CNC. Full troubleshooting reference for this servo motor:
- Alarm SV0027 — Invalid digital servo parameter setting
- Alarm SV0361 — Pulsecoder phase error (built-in)
- Alarm SV0364 — Soft phase alarm (built-in)
- Alarm SV0365 — LED error (built-in)
- Alarm SV0366 — Pulse error (built-in)
- Alarm SV0367 — Count error (built-in)
- Alarm SV0368 — Serial data error (built-in)
- Alarm SV0369 — Data transfer error (built-in)
- Alarm SV0380 — LED error (separate)
- Alarm SV0381 — Pulsecoder phase error (separate)
- Alarm SV0382 — Count error (separate)
- Alarm SV0383 — Pulse error (separate)
See all 141 alarm codes for this series →
