Siemens 6SL3120-2TE13-0AA3
SKU: 6SL3120-2TE13-0AA3-FS
We have 1 in stock
Estimated delivery: May 13th - May 15th
Order for next-day shipment.
- Regular price
-
$1,628.00
- Sale price
- $1,628.00
New
$1,628
1 in stock
Ships today
IAC Certified Refurbished
$875
1 in stock
Ships today
Description
The Siemens 6SL3120-2TE13-0AA3 is a SINAMICS S120 line module designed to supply and manage power within multi-axis servo drive systems. As part of Siemens’ modular S120 platform, this unit plays a critical role in distributing DC link power to connected motor modules, ensuring stable operation in demanding motion control applications.
Engineered for centralized power handling, this line module supports regenerative operation, allowing braking energy from connected axes to be efficiently managed within the system. This makes it well-suited for high-performance automation environments such as CNC machines, material handling systems, and complex multi-axis equipment, where precise motion control and energy efficiency are essential.
The 6SL3120-2TE13-0AA3 is intended for installation in a complete SINAMICS S120 drive assembly and must be used with compatible control units and motor modules. As a legacy Siemens component, it is commonly sourced as a replacement to maintain compatibility in existing systems where minimizing downtime and preserving machine architecture are priorities.
What is the primary function of this SINAMICS module?
This module serves as a line module within a SINAMICS S120 drive system.
Is this module suitable for multi-axis servo systems?
Yes, it is designed for centralized power distribution.
Does this module support regenerative energy handling?
Yes, it supports controlled regeneration and power flow.
Is this module interchangeable with other S120 line modules?
Interchangeability depends on system power requirements.
Does this module operate independently?
No, it must be installed within a complete SINAMICS system.
-
Buying Options
-
Description
The Siemens 6SL3120-2TE13-0AA3 is a SINAMICS S120 line module designed to supply and manage power within multi-axis servo drive systems. As part of Siemens’ modular S120 platform, this unit plays a critical role in distributing DC link power to connected motor modules, ensuring stable operation in demanding motion control applications.
Engineered for centralized power handling, this line module supports regenerative operation, allowing braking energy from connected axes to be efficiently managed within the system. This makes it well-suited for high-performance automation environments such as CNC machines, material handling systems, and complex multi-axis equipment, where precise motion control and energy efficiency are essential.
The 6SL3120-2TE13-0AA3 is intended for installation in a complete SINAMICS S120 drive assembly and must be used with compatible control units and motor modules. As a legacy Siemens component, it is commonly sourced as a replacement to maintain compatibility in existing systems where minimizing downtime and preserving machine architecture are priorities.
What is the primary function of this SINAMICS module?
This module serves as a line module within a SINAMICS S120 drive system.Is this module suitable for multi-axis servo systems?
Yes, it is designed for centralized power distribution.Does this module support regenerative energy handling?
Yes, it supports controlled regeneration and power flow.Is this module interchangeable with other S120 line modules?
Interchangeability depends on system power requirements.Does this module operate independently?
No, it must be installed within a complete SINAMICS system. -
Specifications
Technical Specifications

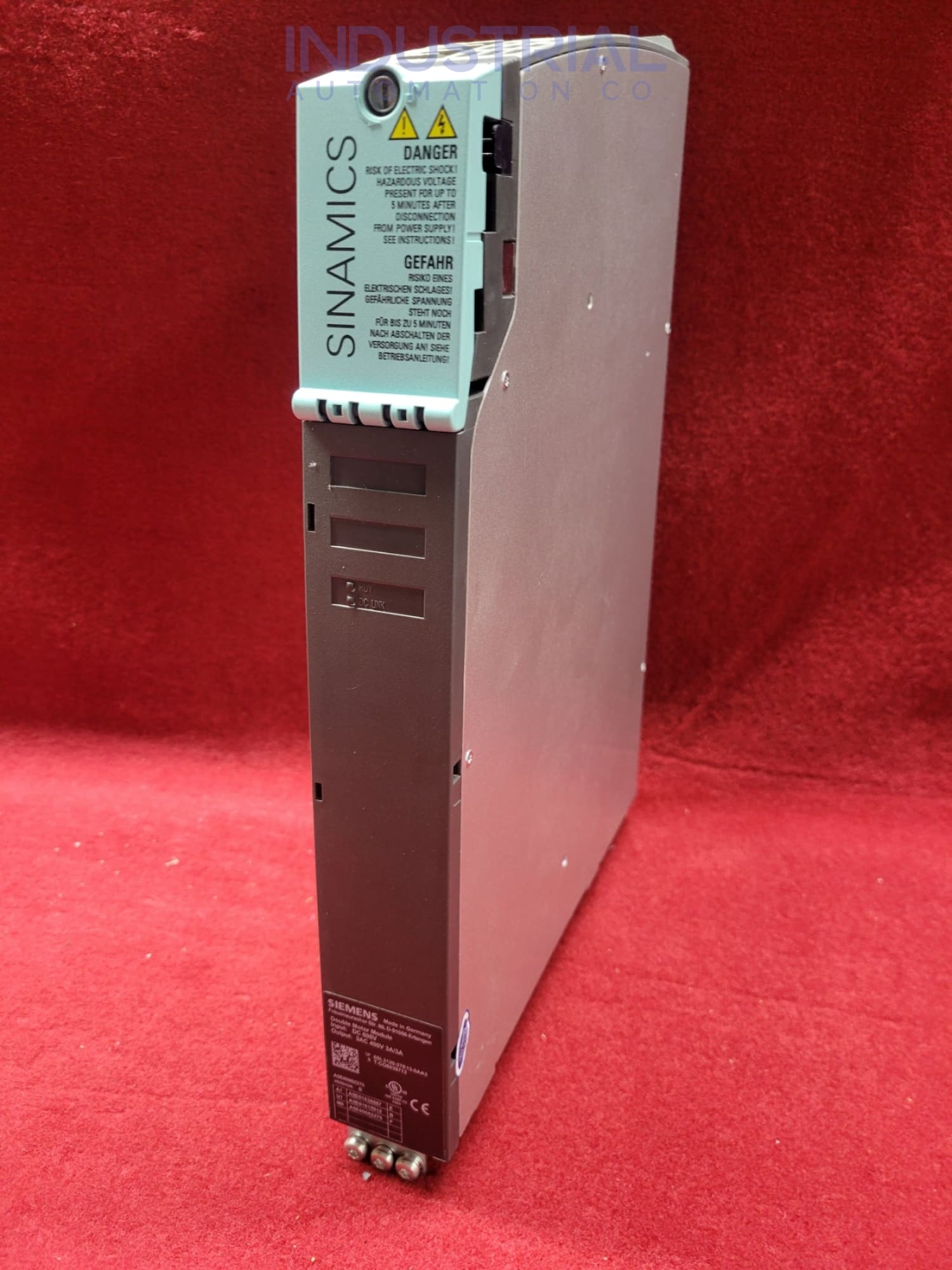

Siemens 6SL3120-2TE13-0AA3 Sinamics S120 Double Motor Module
The Siemens 6SL3120-2TE13-0AA3 is a servo drive from the Sinamics S120 series. These servos are widely used in high performance drive applications in mechanical and systems engineering. Industries such as printing presses, packaging machines, handling and assembly systems, plastic machines, lifting gear, textile machines, and machine tools often utilize the Sinamics S120 drives. The S120 series also offers safety integrated functionality, making it suitable for a wide range of applications. Siemens is a leading company in the field of automation, with Sinamics being the largest drives family in the world.
The 6SL3120-2TE13-0AA3 double motor module has a DC input of 600V and an AC output of 400V, 3A/3A. It features a compact booksize frame and internal air cooling, as well as optimized pulse patterns and support for extended safety integrated functions. It also includes a DRIVE-CLiQ cable, which allows for easy integration into a variety of systems.
One of the key advantages of the Sinamics S120 series is its ability to provide high performance and reliability, even in demanding environments. The internal air cooling system and optimized pulse patterns help to ensure that the drive operates efficiently and effectively, even under heavy load. Additionally, the support for extended safety integrated functions makes it possible to use the drive in applications where safety is a critical concern.
Please note that this particular model has been discontinued by the manufacturer. However, Siemens offers a wide range of alternative servo drive solutions, including other models from the Sinamics S120 series.
Primary brand Siemens Main function Inverter unit Product series / family name SINAMICS S120 series Network frequency (output; servo control mode) 0-650 Hz
(input) 47-63 HzFunctions Double mot. module in booksize format Design forced cooling AF (1 fan) Supply voltage (DC) 510Vdc-720Vdc (575Vdc / 600Vdc nom.) Frequency (output; V/f control mode) 0-600
(output; vector control mode) 0-300Type of network DC input Rated current 3A x 2 (Irated)
2.6A x 2 (based-load current IH)Rated active power (kW) 2 x 1.6kW (Irated)
2 x 1.4kW (IH)Rated power (HP) 2 x 1.5HP / 1-1/2HP (Irated)
2 x 1HP (IH)Rated voltage (AC) 380Vac-480Vac Degree of protection IP20 Dimensions Frame size Booksize Ambient air temperature for operation (without derating) 0...+40 °C Ambient air temperature for storage -25...+55 °C Contents DRV.-CLiQ cable -
