Indramat DDS02.1-W150-D

Indramat DDS02.1-W150-D

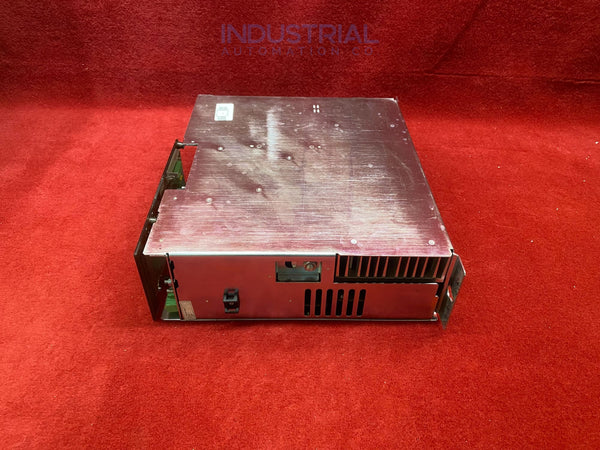

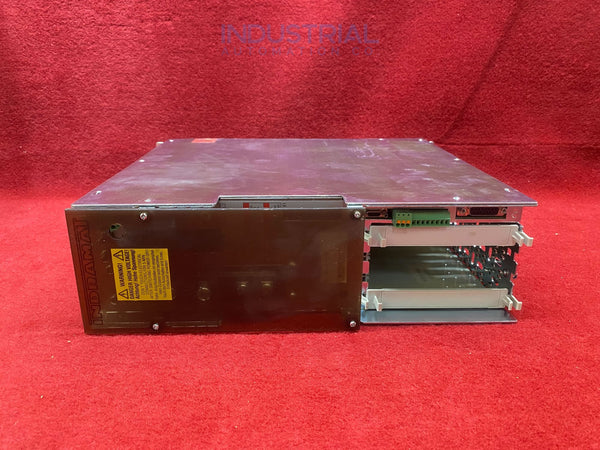

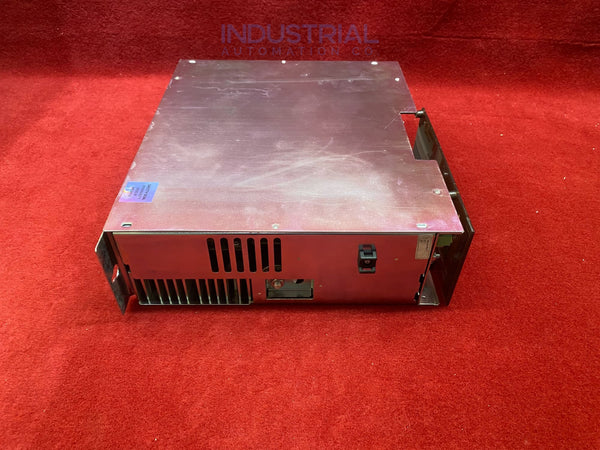

The Indramat DDS02.1-W150-D is an AC servo control drive in the Indramat DDS Series. It provides exact and efficient control over synchronous and asynchronous motors in multiple industrial applications. The drive can work in high-humidity environments.

Technical Specifications :< /h2>

The Indramat DDS02.1-W150-D is a high-performance servo drive controller for synchronous and asynchronous motors. The unit is designed for a DC bus voltage range of 24 to 300 V DC and is capable of a peak current of 150 A and a continuous current of 50 A.

This servo drive can work in a hot environment, normally working at 0°C to +45°C of temperature and maximum up to 55°C. The temperature range for storing the drive is recommended from -30°C to +85°C. It can meet the demand of complex applications in the industry where humidity levels are relatively 95 % higher.

The Indramat DDS02.1-W150-D has multiple control modes (speed, torque, and position control, providing). Indramat€™s Drive Top software is used in the drive, which offers a user-friendly interface for setting parameters and performing diagnostics.

The drive has a compact and unique design (7.5kg weight) that can be fit in constrained space without consuming large volume. The drive has an IP-20 protection rating to compete against dust and debris in the industrial environment.

Applications :< /h2>

The Indramat DDS02.1-W150-D servo drive controller has multiple applications in the industry. In CNC machinery, a drive ensures accurate positioning and control. The drive has high-performance (Speed, position, torque) control, ideal for robotics and automation. Tasks that can be performed are assembly, material handling, and welding.

The drive has applications in automated guided vehicles (AGVs), conveyors, and hoists. Packaging and textile (knitting, weaving) machines also benefit from the precise control offered by this servo drive, enabling accurate and efficient packaging processes.

The DDS02.1-W150-D ensures that it meets the demands of complex industrial environments, providing accurate control and enhancing the efficiency and productivity of its machinery.

Functional Capabilities :< /h2>

The Indramat DDS02.1-W150-D servo drive controller has versatile integration capabilities. The drive has a digital servo motor feedback system that provides feedback wirelessly. The drive supports multiple communication modules, including serial real-time communication systems (SERCOS), analog and digital.

The power dissipation can be measured from the standstill current of the connected motor to get an exact value. To achieve maximum performance by enhancing efficiency, productivity, and overall system performance.

Frequently Asked Questions :

What are the communication interfaces supported by the Indramat DDS02.1-W150-D?

The Indramat DDS02.1-W150-D supports several communication interfaces, including SERCOS, analog, and digital options. These interfaces enable seamless integration into various industrial automation systems.

What is the Peak current of Indramat DDS02.1-W150-D?

The DDS02.1-W150-D is designed with a peak current of 150A and a continuous current of 50A. With a high peak current, it can drive heavy motor loads easily.

What types of motors can be controlled by the Indramat DDS02.1-W150-D?

The Indramat DDS02.1-W150-D is capable of controlling both synchronous and asynchronous motors. It supports various control modes (speed, torque, and position control).

Product Specifications Table
