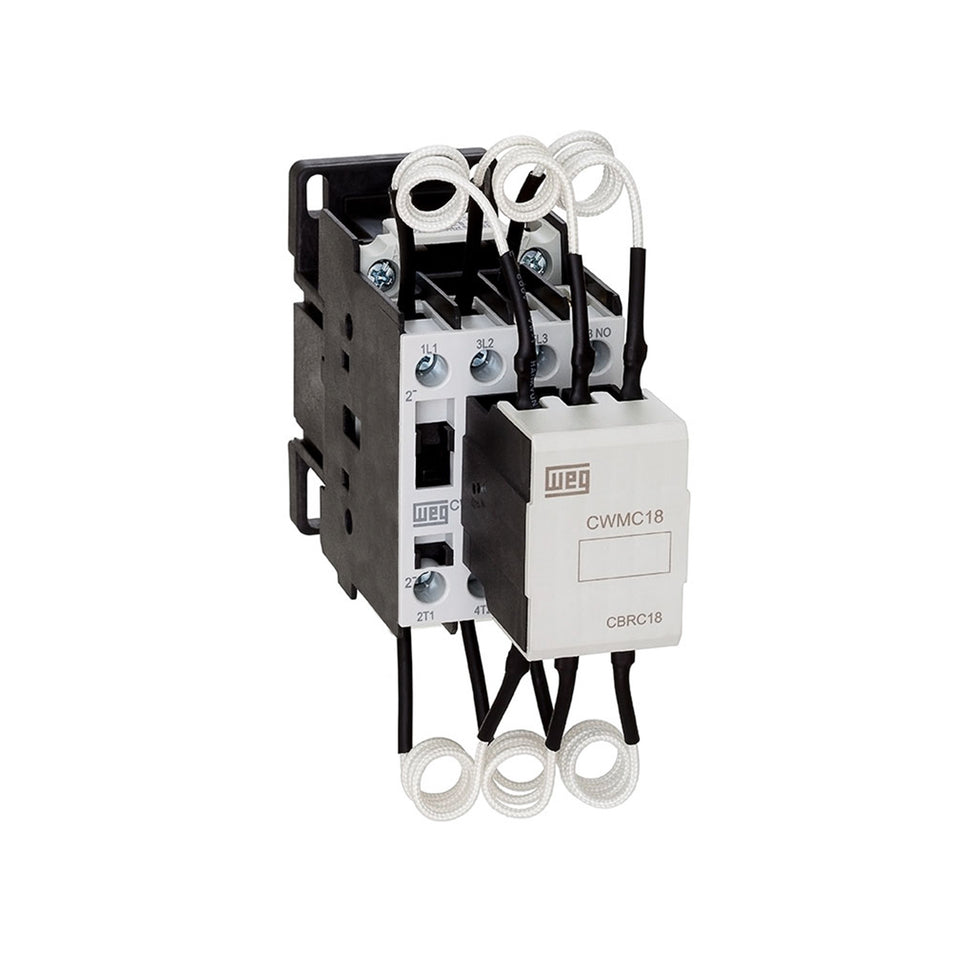

WEG CWMC18-10-30X30
SKU: CWMC18-10-30X30-FS
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
The WEG CWMC18-10-30X30 (WEG material number 12615376) is a CWMC-series contactor for capacitor switching. Key specifications: rated current 18 A / (AC-6b - T = 55°C) 22 A, reference CWMC, main contact 3 NO.
Part of the WEG CWMC - Contactors for switching capacitors range.
WEG CWMC18-10-30X30 Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | CWMC18-10-30X30 |
| WEG material number | 12615376 |
| Product type | Capacitor Switching Contactor |
| Series | CWMC |
| Rated insulation voltage Ui (pollution degree 3) - IEC 60947-4-1 | 1000 V |
| Rated insulation voltage Ui (pollution degree 3) - UL, CSA | 600 V |
| Rated operational frequency - minimum | 25 Hz |
| Rated operational frequency - maximum | 400 Hz |
| Mechanical lifespan (AC) | 10 million |
| Mechanical lifespan (DC) | 10 million |
| Electrical lifespan | Not available |
| Degree of protection IP (IEC 60529) - Main circuit | IP10 |
| Degree of protection IP (IEC 60529) - Control circuit | IP20 |
| Rated current | 18 A / (AC-6b - T = 55°C) 22 A |
| Rated current In - AC-4 | Not available |
| Rated operational current Ie AC-1 (θ = 55 °C) | Not available |
| Rated operational voltage Ue - IEC 60947-4-1 | 690 V |
| Rated operational voltage Ue - UL/CSA | 600 V |
| Height | 117 mm (4.61 in) |
| Width | 45 mm (1.77 in) |
| Depth | 126,4 mm (4.98 in) |
| Gross weight | 300 g |
| Reference | CWMC |
| Main contact | 3 NO |
| WEG catalog category | Controls > Contactors > Contactors for capacitors switching > CWMC - Contactors for switching capacitors |
Industrial Automation Co. offers the WEG CWMC18-10-30X30 in new condition. Request a quote for current pricing, availability, and lead time.
-
