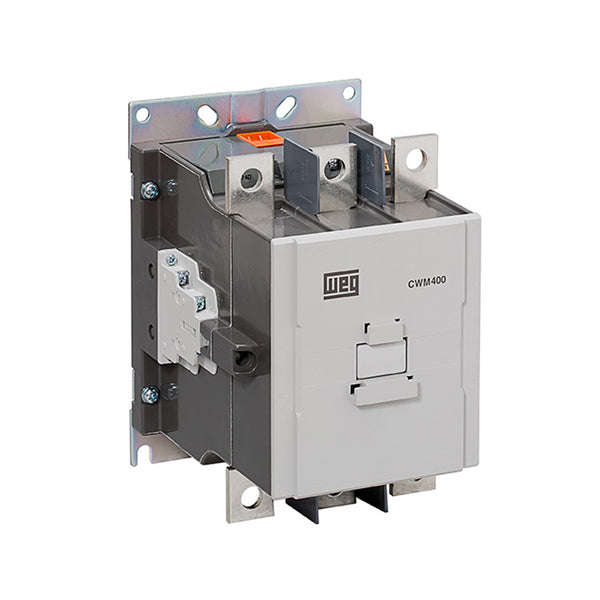

WEG CWM400-22-30D81
SKU: CWM400-22-30D81-FS
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
The WEG CWM400-22-30D81 (WEG material number 11747367) is a CWM-series three-pole power contactor. Key specifications: rated current 400 A, reference CWM, main contact 3 NO.
Advanced technology, safety and simple installation characterize WEG contactors, which feature enclosed construction to VDE 0106, UL approval and readily accessible connections for one or two conductors.
WEG CWM400-22-30D81 Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | CWM400-22-30D81 |
| WEG material number | 11747367 |
| Product type | Contactor |
| Series | CWM |
| Rated insulation voltage Ui (pollution degree 3) - IEC 60947-4-1 | 1000 V |
| Rated insulation voltage Ui (pollution degree 3) - UL, CSA | 600 V |
| Rated operational frequency - minimum | 50 Hz |
| Rated operational frequency - maximum | 60 Hz |
| Mechanical lifespan (AC) | 5 million |
| Mechanical lifespan (DC) | 5 million |
| Electrical lifespan | 0.5 million |
| Degree of protection IP (IEC 60529) - Main circuit | IP00 |
| Degree of protection IP (IEC 60529) - Control circuit | IP20 |
| Rated current | 400 A |
| Rated current In - AC-4 | 300 A |
| Rated operational current Ie AC-1 (θ = 55 °C) | 520 A |
| Rated operational voltage Ue - IEC 60947-4-1 | 690 V |
| Rated operational voltage Ue - UL/CSA | 600 V |
| Height | 243 mm (9.57 in) |
| Width | 209 mm (8.23 in) |
| Depth | 200,7 mm (7.90 in) |
| Gross weight | 11.667 kg |
| Reference | CWM |
| Main contact | 3 NO |
| WEG catalog category | Controls > Contactors > Power contactors > CWM - Contactors |
Industrial Automation Co. offers the WEG CWM400-22-30D81 in new condition. Request a quote for current pricing, availability, and lead time.
-
