SKU: FRN300G1S-4U
Dieses Produkt ist nicht für den Online-Kauf verfügbar.
Verwenden Sie „Angebot anfordern“, um den Preis zu erhalten

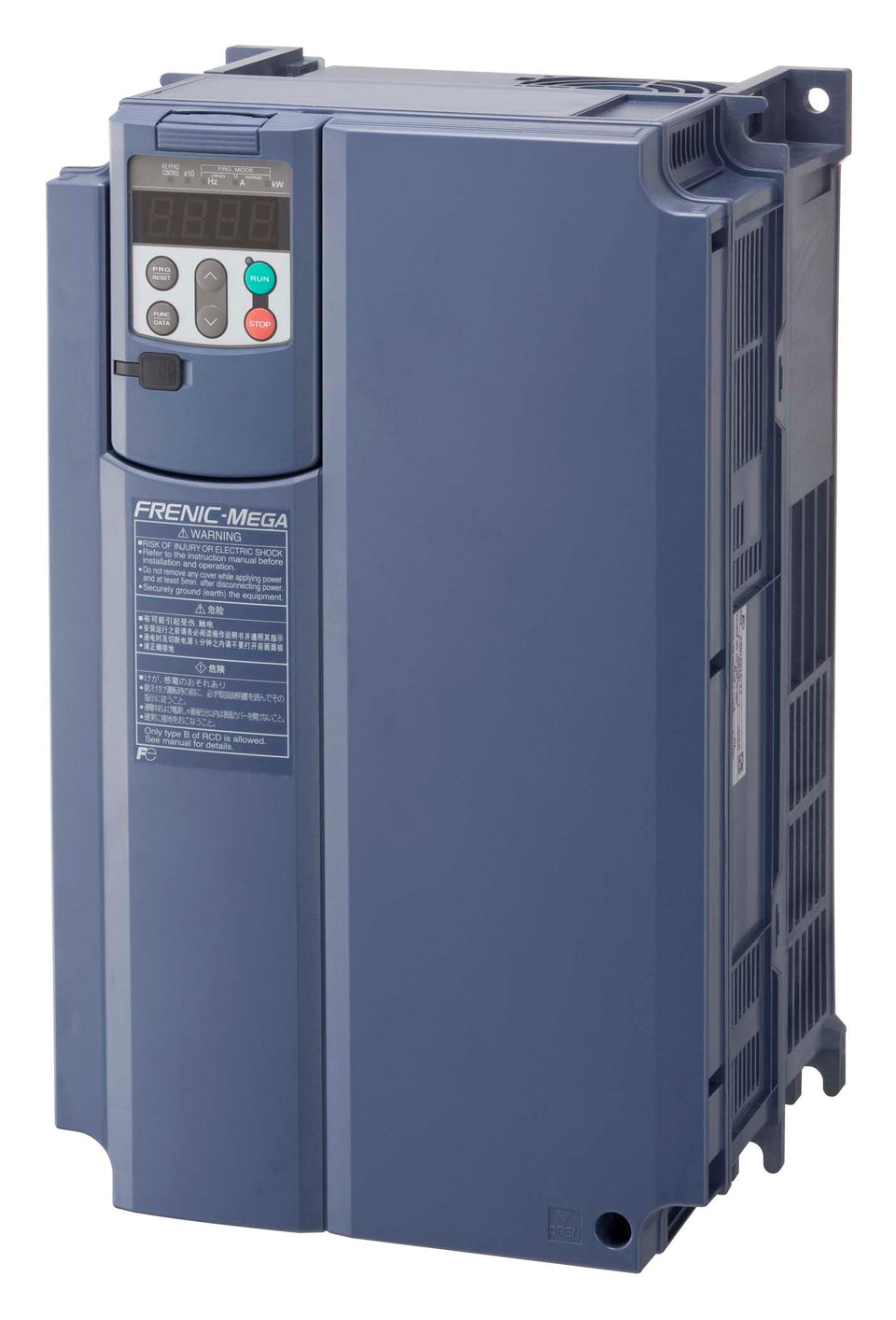

A high-performance AC drive platform engineered for industrial machinery, cranes, and process equipment, the Fuji Electric FRN300G1S-4U is a FRENIC-MEGA (G1) series high-performance variable frequency drive (VFD) for 460V three-phase applications, rated at 300 HP / 377A (Light Duty), 300 HP / 377A (Medium Duty), 250 HP / 304A (Heavy Duty).
The FRENIC-MEGA (G1) is Fuji Electric's flagship high-performance drive platform, delivering advanced vector control across a wide speed range. In sensorless vector mode, it achieves up to 150% starting torque at 0.5 Hz without an encoder. Closed-loop vector control with an optional encoder card achieves up to 200% starting torque and ±0.01% speed regulation. Torque control mode is also supported for tension-controlled winding applications.
The built-in PLC function enables simple sequencing and logic directly in the drive, reducing panel component count. Additional features: instantaneous power failure ride-through, multi-duty ratings (Light/Medium/Heavy), DC bus sharing, droop control, S-curve acceleration, and comprehensive diagnostics. RS-485 Modbus RTU standard; optional PROFIBUS-DP, DeviceNet, EtherNet/IP, and CC-Link cards.
High-performance applications for the FRN300G1S-4U include winders, uncoilers, and tension-controlled applications, large industrial compressors and process blowers, and machine tool and machining center spindles. Its multi-duty rating structure provides maximum application flexibility. UL/cUL listed and CE marked.
A high-performance AC drive platform engineered for industrial machinery, cranes, and process equipment, the Fuji Electric FRN300G1S-4U is a FRENIC-MEGA (G1) series high-performance variable frequency drive (VFD) for 460V three-phase applications, rated at 300 HP / 377A (Light Duty), 300 HP / 377A (Medium Duty), 250 HP / 304A (Heavy Duty).
The FRENIC-MEGA (G1) is Fuji Electric's flagship high-performance drive platform, delivering advanced vector control across a wide speed range. In sensorless vector mode, it achieves up to 150% starting torque at 0.5 Hz without an encoder. Closed-loop vector control with an optional encoder card achieves up to 200% starting torque and ±0.01% speed regulation. Torque control mode is also supported for tension-controlled winding applications.
The built-in PLC function enables simple sequencing and logic directly in the drive, reducing panel component count. Additional features: instantaneous power failure ride-through, multi-duty ratings (Light/Medium/Heavy), DC bus sharing, droop control, S-curve acceleration, and comprehensive diagnostics. RS-485 Modbus RTU standard; optional PROFIBUS-DP, DeviceNet, EtherNet/IP, and CC-Link cards.
High-performance applications for the FRN300G1S-4U include winders, uncoilers, and tension-controlled applications, large industrial compressors and process blowers, and machine tool and machining center spindles. Its multi-duty rating structure provides maximum application flexibility. UL/cUL listed and CE marked.
Wir haben das offizielle Datenblatt für dieses Teil noch nicht. Fragen Sie den Assistenten oder fordern Sie das Dokument von unserem Team an.
