FANUC A06B-0227-B001
SKU: A06B-0227-B001-R
Wir haben 1 auf Lager
Voraussichtliche Lieferung: October 5th - October 7th
Jetzt bestellen für Versand am nächsten Tag.
- Normaler Preis
-
€1.163,95
- Sonderpreis
- €1.163,95
IAC Certified Refurbished
€1.163,95
1 auf Lager
Versand heute
Description

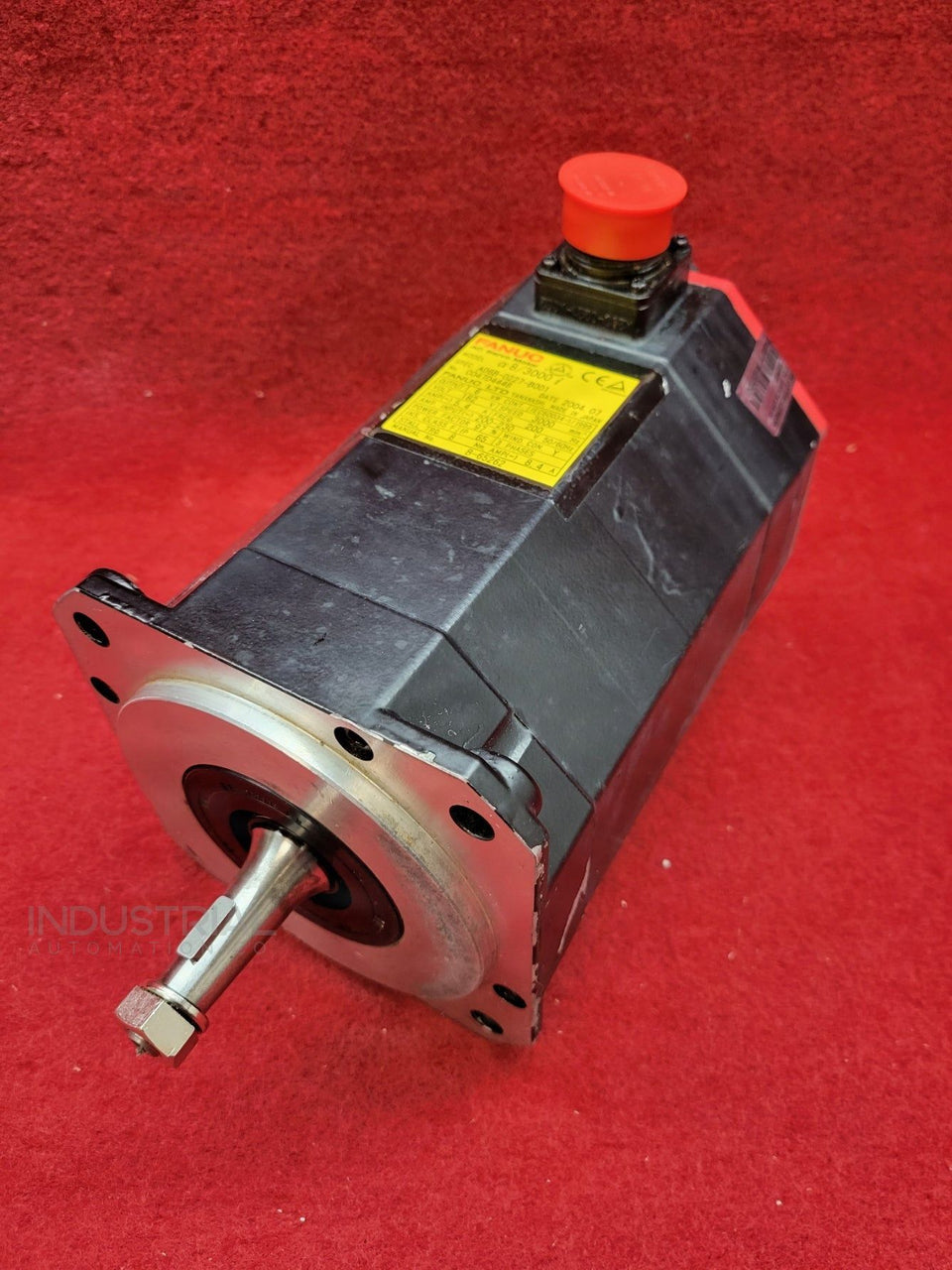

The FANUC A06B-0227-B001 is an Alpha i series AC servo motor, model aiF8/3000. Motors in the aiF line provide medium-inertia feed-axis motion for FANUC CNC machine tools, with high-resolution feedback for accurate contouring.
This variant has a tapered keyed shaft and an i1000-class high-resolution pulse coder. It is a common feed motor on machining centers and lathes running FANUC controls.
Technical Specifications
| Manufacturer | FANUC |
| Part Number | A06B-0227-B001 |
| Series | Alpha i (aiF) AC servo motor |
| Motor Model | aiF8/3000 |
| Rated Stall Torque | 8 Nm |
| Maximum Speed | 3,000 RPM |
| Shaft | Tapered, keyed |
| Holding Brake | No |
| Feedback | i1000-class encoder |
| Application | CNC feed axis |
-
Kaufoptionen
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $175/yr+3 yrs → 5 total $155/yr+5 yrs → 7 total $116/yrBEST VALUE+8 yrs → 10 total $87/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The FANUC A06B-0227-B001 is an Alpha i series AC servo motor, model aiF8/3000. Motors in the aiF line provide medium-inertia feed-axis motion for FANUC CNC machine tools, with high-resolution feedback for accurate contouring.
This variant has a tapered keyed shaft and an i1000-class high-resolution pulse coder. It is a common feed motor on machining centers and lathes running FANUC controls.
Technical Specifications
Manufacturer FANUC Part Number A06B-0227-B001 Series Alpha i (aiF) AC servo motor Motor Model aiF8/3000 Rated Stall Torque 8 Nm Maximum Speed 3,000 RPM Shaft Tapered, keyed Holding Brake No Feedback i1000-class encoder Application CNC feed axis -
Aufschlüsselung der Teilenummer
Part number breakdown — A06B-0227-B001
αi Series AC Servo Motor
Motor model 0227αiF 8/3000 Shaft & brake (△) 0Taper shaft Fan / high-torque brake (○) 0Standard Pulse coder (▽) 1Pulsecoder αiI 1000 Specifications
ratedOutputKw 1.6 maxSpeedRpm 3000 stallTorqueNm 8 stallCurrentArms 8.4 rotorInertiaKgCm2 25.7 weightKg 12.3 Alarm codes (47)
Motor-related alarms are displayed by the connected amplifier / CNC. Full troubleshooting reference for this servo motor:
- Alarm SV0027 — Invalid digital servo parameter setting
- Alarm 417 — Invalid parameter
- Alarm SV0361 — Pulsecoder phase error (built-in)
- Alarm SV0364 — Soft phase alarm (built-in)
- Alarm SV0365 — LED error (built-in)
- Alarm SV0366 — Pulse error (built-in)
- Alarm SV0367 — Count error (built-in)
- Alarm SV0368 — Serial data error (built-in)
- Alarm SV0369 — Data transfer error (built-in)
- Alarm SV0380 — LED error (separate)
- Alarm SV0381 — Pulsecoder phase error (separate)
- Alarm SV0382 — Count error (separate)
See all 47 alarm codes for this series →
Documentation
Decoded from FANUC documentation (B-65262EN/05, B-65262EN/06, B-65270EN/08, B-65270EN/10). Questions? Call 877-727-8757 or email sales@iac.us.com.
-
