Yokogawa FX1006-4-2-L

Yokogawa FX1006-4-2-L

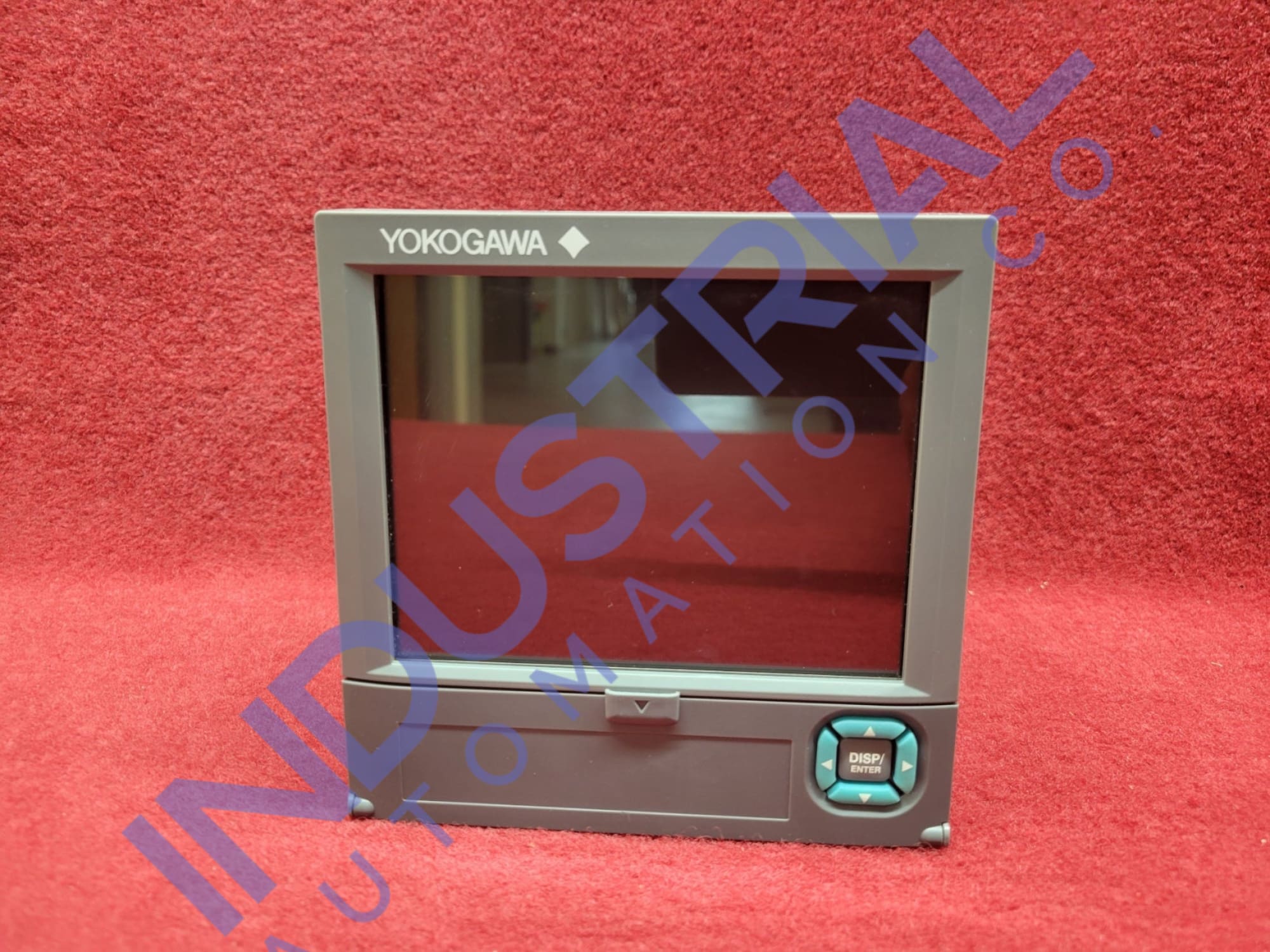

The FX1006-4-2-L Paperless Recorder is manufactured by Yokogawa, a leading provider of industrial automation and control solutions. It features a 5.7-inch TFT color LCD. The display resolution is 240 × 320 dots. This recorder supports up to 6 channels.

The display has 8 brightness levels. Display methods include vertical, horizontal, or wide trend displays. Numerical values can be shown in a digital display. It also supports vertical or horizontal bar graph displays. Historical trend data can be redisplayed from internal memory or external storage.

Storage and Data Management:

The internal memory of the FX1006-4-2-L is flash memory. The capacity of this memory is 400 MB. The memory operates with FIFO file storage. An external storage medium is also supported.

The recorder has a CF card slot. It is compatible with CF cards up to 32GB. The format supported for external storage is FAT32 or FAT16. With both internal and external storage options, users can maintain continuous data logging without interruptions.

This external storage capability enhances data management flexibility. Users can store large amounts of data externally. The combination of internal and external memory ensures comprehensive data storage. It offers redundancy and ease of data access.

Communication Interfaces:

The Ethernet communication interface supports various protocols. These include TCP/IP, UDP, HTTP, FTP, SMTP, SNTP, and Modbus. It can send automatic emails at specified times. The FTP client feature allows automatic data file transfers to an FTP server.

The web server feature displays the FX screen on a web browser. This allows for remote monitoring and control. Modbus functionality is available for both client and server roles. This ensures compatibility with various industrial systems.

The wide range of communication options makes this recorder highly versatile. It integrates easily into existing networks and systems. These communication capabilities facilitate seamless integration with other devices and systems, enhancing operational efficiency.

Environmental and Physical Specifications:

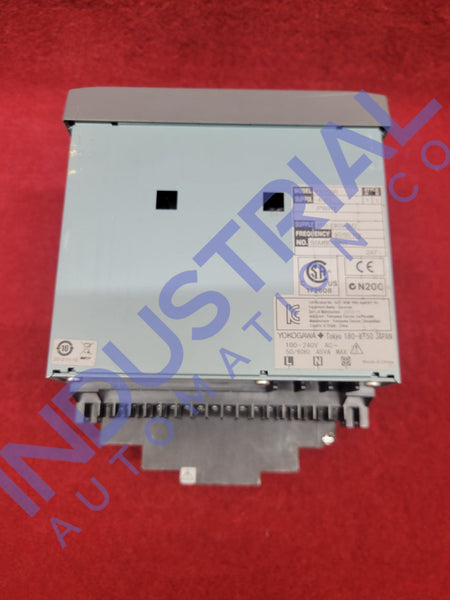

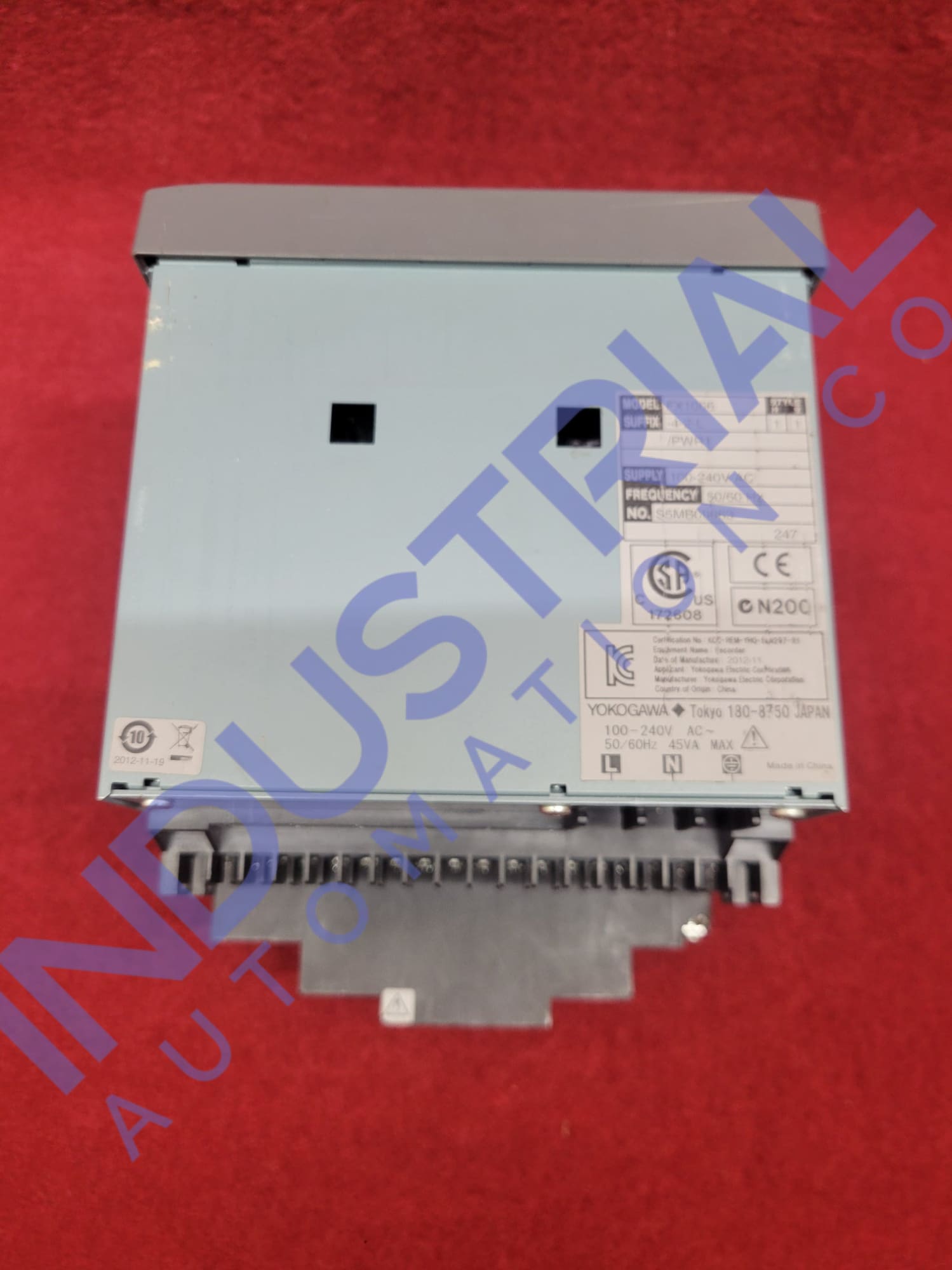

The power supply voltage is between 100 to 240 VAC. The operating frequency is 50/60 Hz. The device is designed for flush panel mounting. This allows for seamless integration into control panels.

The FX1006-4-2-L operates efficiently in a wide range of environments. The operating temperature range is 0 to 50°C. The humidity range for operation is 20 to 80% RH without condensation. Its dimensions are 144 (W) × 144 (H) × 161.7 (D) mm. The compact size is ideal for space-constrained installations.

The weight of the device is 1.3 kg. This lightweight design makes it easy to install and handle. The FX1006-4-2-L combines multiple display and storage options. It integrates advanced communication interfaces and environmental resilience.

The compact design and versatile features make it suitable for various industrial applications. This recorder provides efficient data management and real-time monitoring. With its robust design and comprehensive features, the FX1006-4-2-L meets the demands of modern industrial environments.

Frequently Asked Questions:

What is the display size and resolution of the FX1006-4-2-L Paperless Recorder?

The FX1006-4-2-L Paperless Recorder features a 5.7-inch TFT color LCD with a resolution of 240 × 320 dots. It supports various display methods, including trend, digital, and bar graph displays.

What storage options are available for the FX1006-4-2-L?

The FX1006-4-2-L Paperless Recorder has 400 MB of internal flash memory with FIFO file storage. It also supports external storage via a CF card slot, compatible with CF cards up to 32GB, formatted in FAT32 or FAT16.

What communication protocols does the FX1006-4-2-L support?

The FX1006-4-2-L supports several Ethernet communication protocols, including TCP/IP, UDP, HTTP, FTP, SMTP, SNTP, and Modbus. It can send automatic emails, transfer data files via FTP, and display the FX screen on a web browser.
