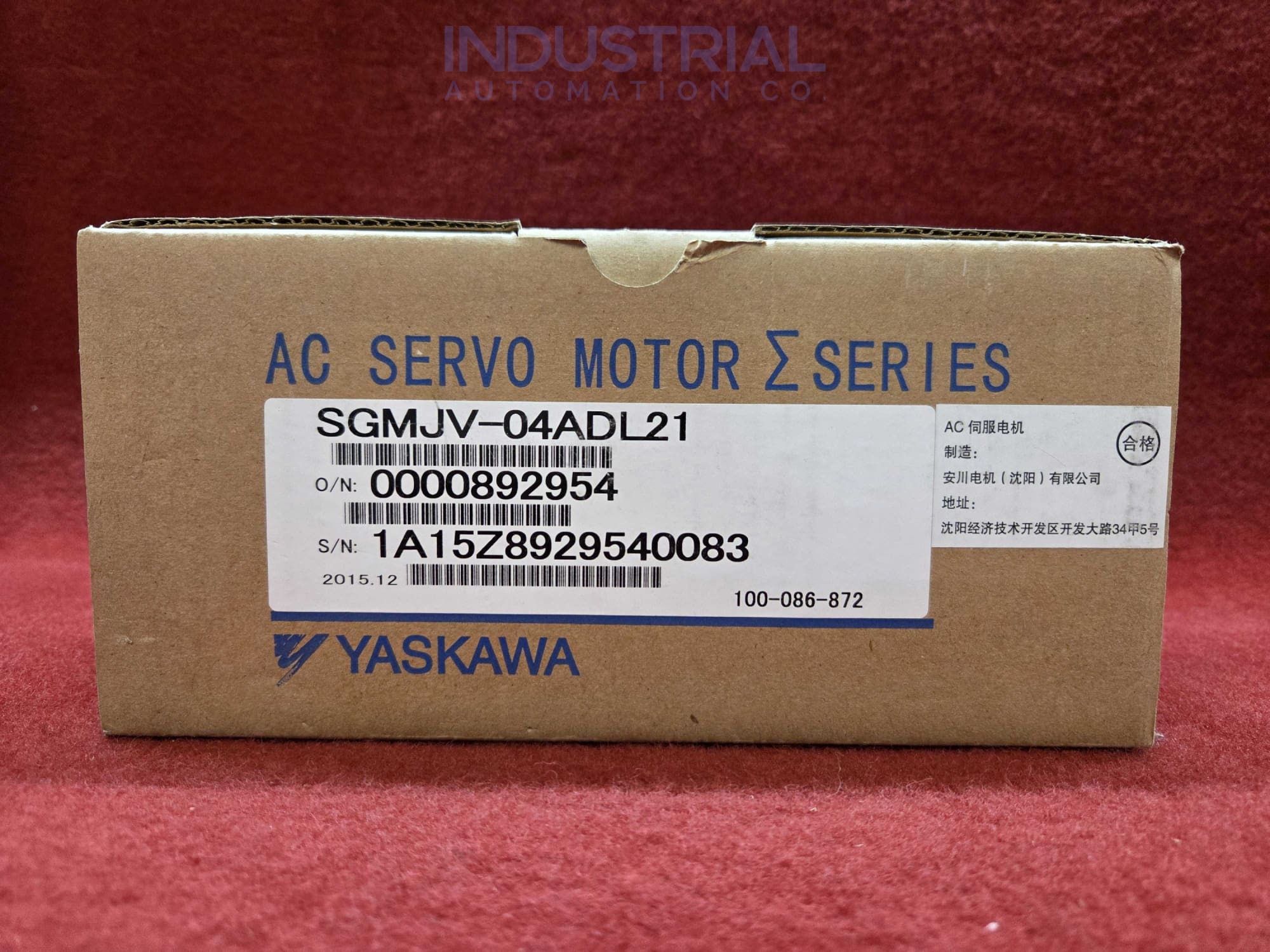

Yaskawa SGMJV-04ADL21
SKU: SGMJV-04ADL21-FS
We have 1 in stock
Estimated delivery: June 6th - June 8th
Order for next-day shipment.
- Regular price
-
$695.00
- Sale price
- $695.00
New
$695
1 in stock
Ships today
Description
The Yaskawa SGMJV-04ADL21 is a compact 400-watt AC servo motor from the acclaimed Sigma-5 Mini series, engineered for high-precision industrial automation. Classified as a "middle inertia" model, it offers the perfect balance of speed and stability, making it ideal for handling fluctuating loads in semiconductor robots, PCB drilling, and packaging machinery. It features a robust 20-bit absolute encoder for microscopic positioning accuracy (over 1 million pulses per revolution) and a space-saving 60mm flange. With a rated speed of 3000 RPM and IP65 protection, it delivers reliable, powerful performance in tight, demanding environments.
-
Buying Options
-
Description
The Yaskawa SGMJV-04ADL21 is a compact 400-watt AC servo motor from the acclaimed Sigma-5 Mini series, engineered for high-precision industrial automation. Classified as a "middle inertia" model, it offers the perfect balance of speed and stability, making it ideal for handling fluctuating loads in semiconductor robots, PCB drilling, and packaging machinery. It features a robust 20-bit absolute encoder for microscopic positioning accuracy (over 1 million pulses per revolution) and a space-saving 60mm flange. With a rated speed of 3000 RPM and IP65 protection, it delivers reliable, powerful performance in tight, demanding environments.
-
Specifications
Yaskawa SGMJV-04ADL21 Research Report Yaskawa SGMJV-04ADL21
Sigma-5 Mini Series 400W AC Servo Middle InertiaExecutive Summary
The SGMJV-04ADL21 is a 400-watt AC servo motor designed for applications requiring a balance of speed and load stability ("Middle Inertia"). It features a 20-bit incremental encoder for high-precision positioning (over 1 million pulses per revolution) and operates on a standard 200V AC input. Its compact flange size (60mm) and robust IP65 protection rating make it ideal for semiconductor manufacturing, circuit board drilling, and food packaging machinery.
Model Number Analysis
Code Segment Value Technical Specification SGMJV Series Sigma-5 Mini Series (Middle Inertia type) 04 Capacity 400 Watts (0.4 kW) Rated Output A Voltage 200V AC Input D Encoder 20-bit Incremental Serial (1,048,576 ppr) L Shaft End Standard Straight Shaft with Keyway and Screw Tap 21 Design Standard Design (No Holding Brake, Standard Oil Seal) Technical Data Sheet
Rated Output400 WRated Torque1.27 Nm (180 oz-in)Peak Torque4.46 Nm (631 oz-in)Rated Speed3000 min⁻¹Max Speed6000 min⁻¹Rotor Inertia0.135 x10⁻⁴ kg·m²Flange Size60 mm (2.36 in)Rated Current2.8 A rmsProtectionIP65Torque-Speed Characteristic Curve
Demonstrates the operating range. The motor can sustain 1.27 Nm indefinitely (Continuous Zone) but can output up to 4.46 Nm for short bursts during acceleration (Intermittent Zone).
Power Context Comparison
Contextualizing 400W output against common mechanical baselines. While compact, the SGMJV provides industrial-grade consistency exceeding that of comparable consumer-grade motors.
Primary Applications
Semiconductor Robots
Utilizes the 20-bit encoder for vibration-free handling of delicate wafers.
PCB Drilling Machines
Leverages 6000 rpm max speed for rapid point-to-point movement.
Food Packaging
IP65 rating protects against environmental dust and moisture in packaging lines.
Material Feeders
Middle inertia design stabilizes load fluctuations during material feeding.
Research Document: Yaskawa SGMJV-04ADL21 | Data sourced from Sigma-5 Series Product Manual. -
