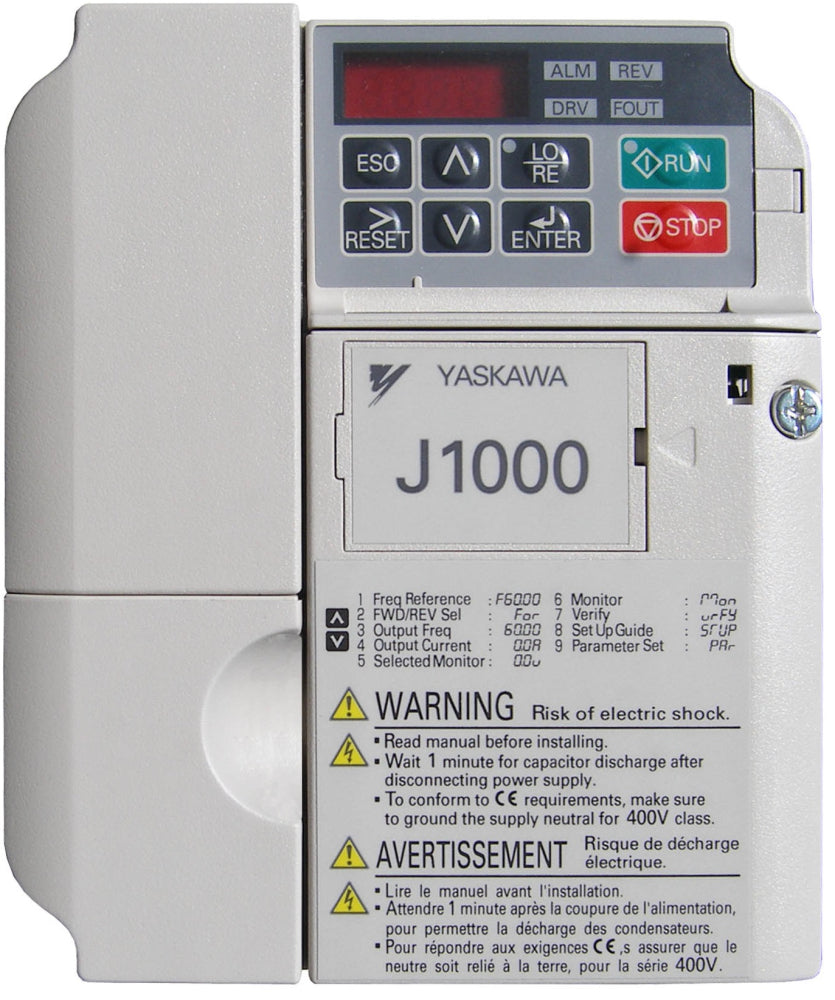

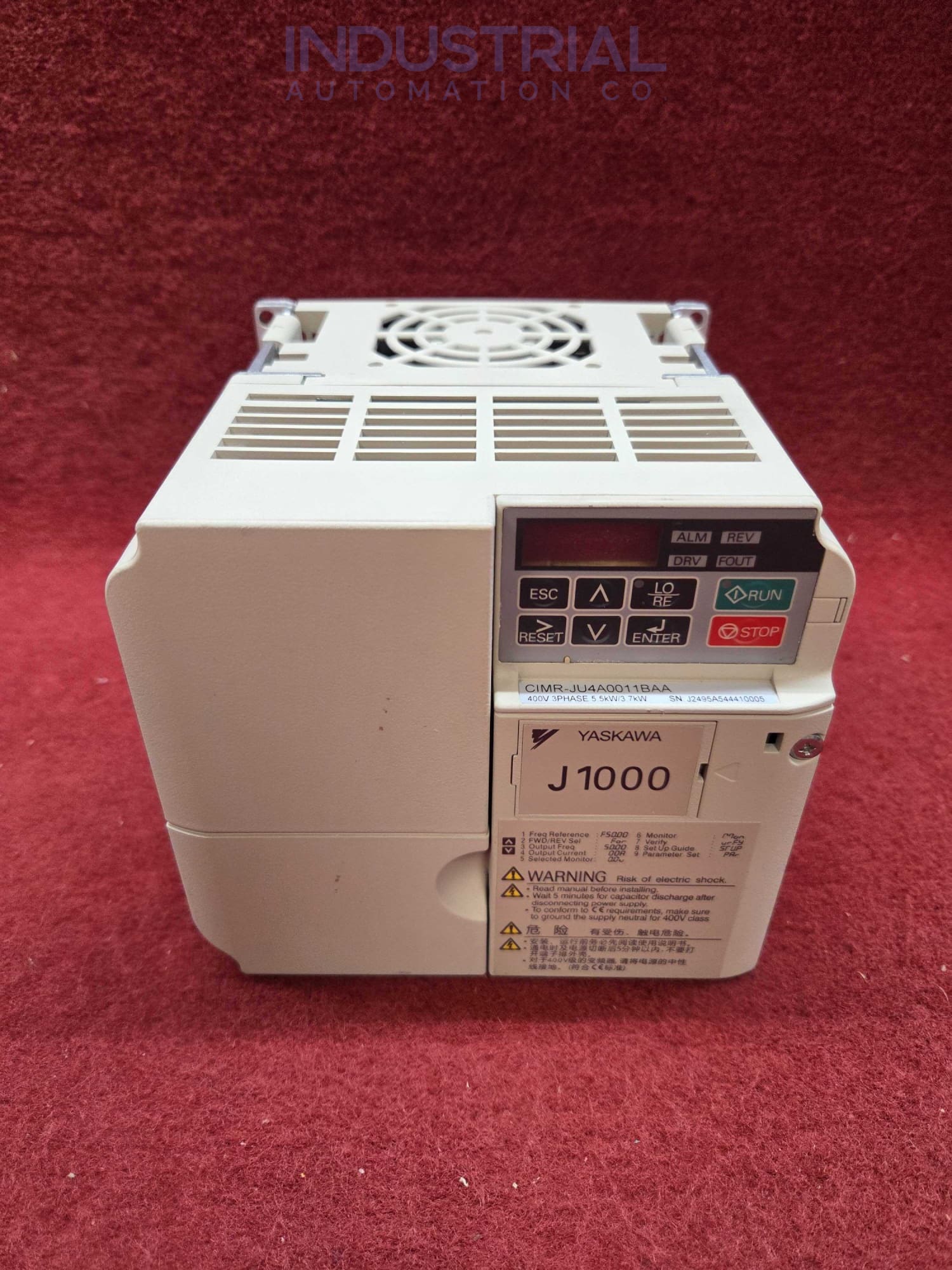

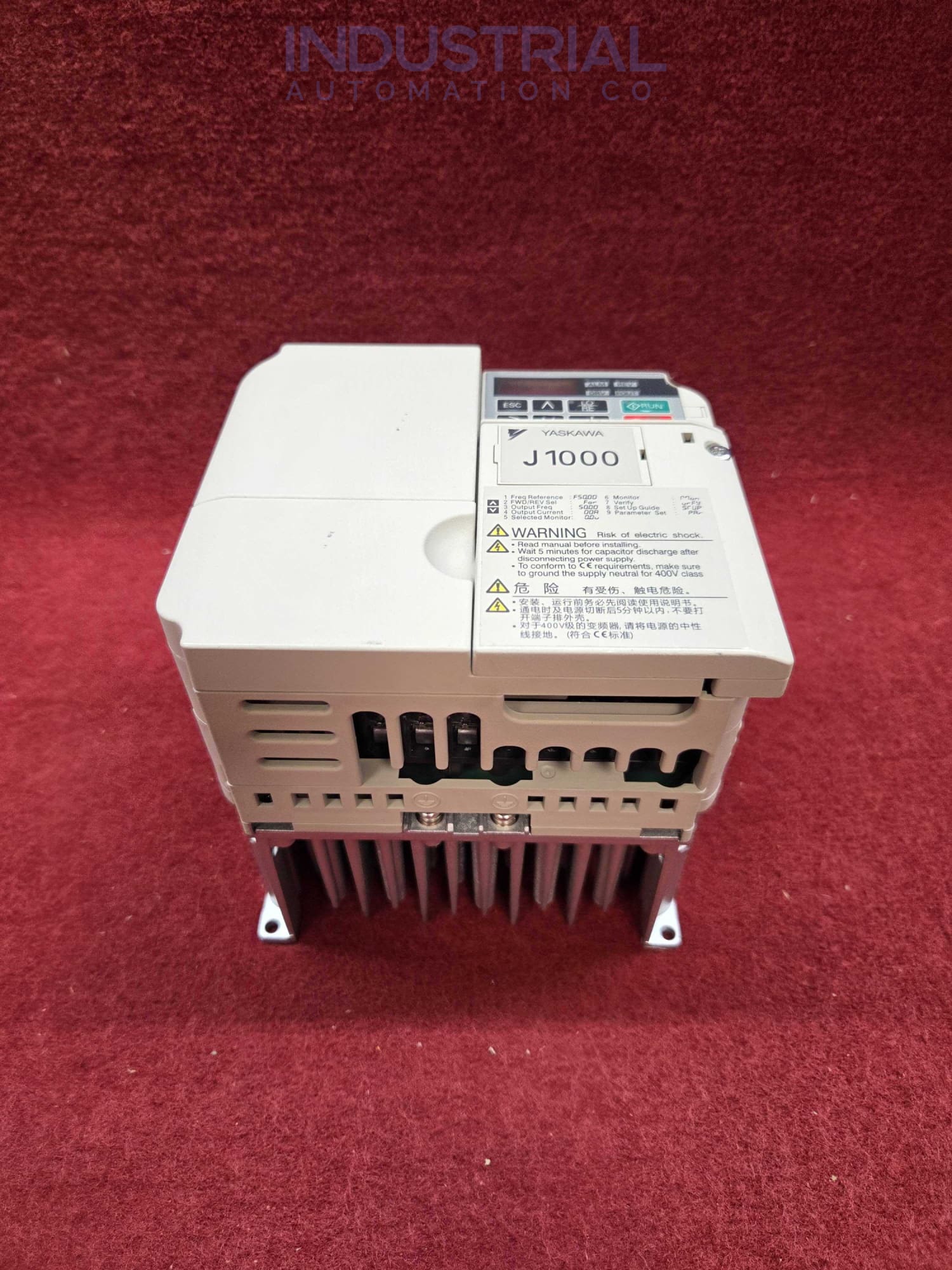

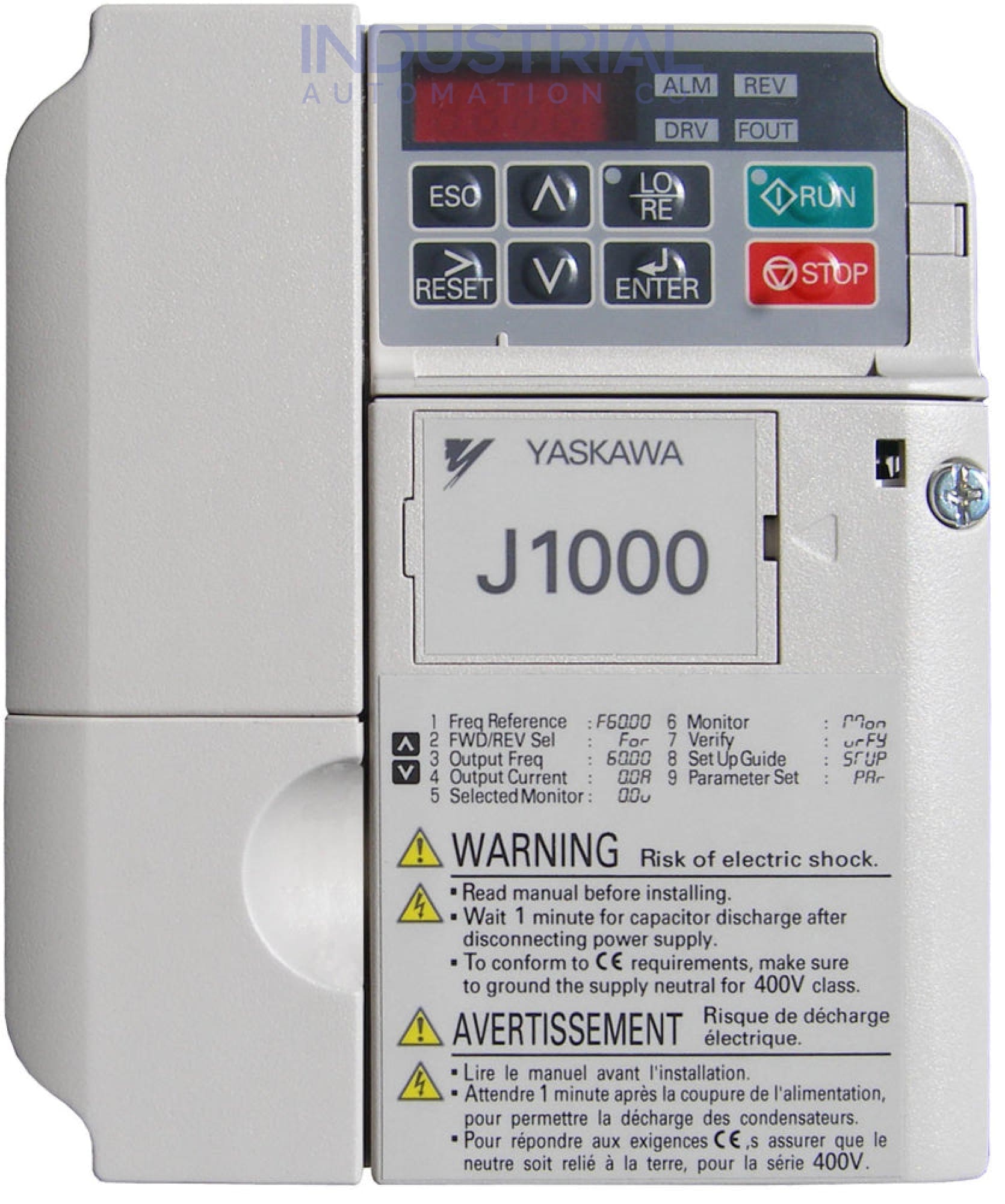

Yaskawa CIMR-JU4A0011BAA
SKU: CIMR-JU4A0011BAA-NS
We have 1 in stock
Estimated delivery: June 25th - June 27th
Order for next-day shipment.
- Regular price
-
$990.00
- Sale price
- $990.00
New Surplus
$990
1 in stock
Ships today
Description
Manufacturer Part Number CIMR-JU4A0011BAA
Manufacturer Yaskawa
Product Series J1000
Family Series Yaskawa Drives, J1000 Series
Description Drive, AC, 5HP, 480V, 3PH, 9.2A, CT 7.5HP, 11.1A, VT, IP20 5in.Hx5.51in.Wx5.63in.D
Input Phase 3
HP (Constant Torque Rating) 5 hp
HP (Variable Torque Rating) 7.5 hp
Amps (Constant Torque Rating) 9.2 A
Amps (Variable Torque Rating) 11.1 A
Braking Type DC Injection, Dynamic Braking Transistor Included
Closed Loop No
AC Line Regenerative No
Operator Controls Built In
Motor Control-Max Level V/Hz (Scalar)
Mounting Panel
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 400 Hz
Protection Rating IP20
Dynamic Braking Trans Included
Height 5 "
Width 5.51 "
Depth 5.63 "
Net Weight 6.12 lbs
Gross Weight 6.12 lbs
-
Buying Options
-
Description
Manufacturer Part Number CIMR-JU4A0011BAA
Manufacturer Yaskawa
Product Series J1000
Family Series Yaskawa Drives, J1000 Series
Description Drive, AC, 5HP, 480V, 3PH, 9.2A, CT 7.5HP, 11.1A, VT, IP20 5in.Hx5.51in.Wx5.63in.D
Input Phase 3
HP (Constant Torque Rating) 5 hp
HP (Variable Torque Rating) 7.5 hp
Amps (Constant Torque Rating) 9.2 A
Amps (Variable Torque Rating) 11.1 A
Braking Type DC Injection, Dynamic Braking Transistor Included
Closed Loop No
AC Line Regenerative No
Operator Controls Built In
Motor Control-Max Level V/Hz (Scalar)
Mounting Panel
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 400 Hz
Protection Rating IP20
Dynamic Braking Trans Included
Height 5 "
Width 5.51 "
Depth 5.63 "
Net Weight 6.12 lbs
Gross Weight 6.12 lbs -
