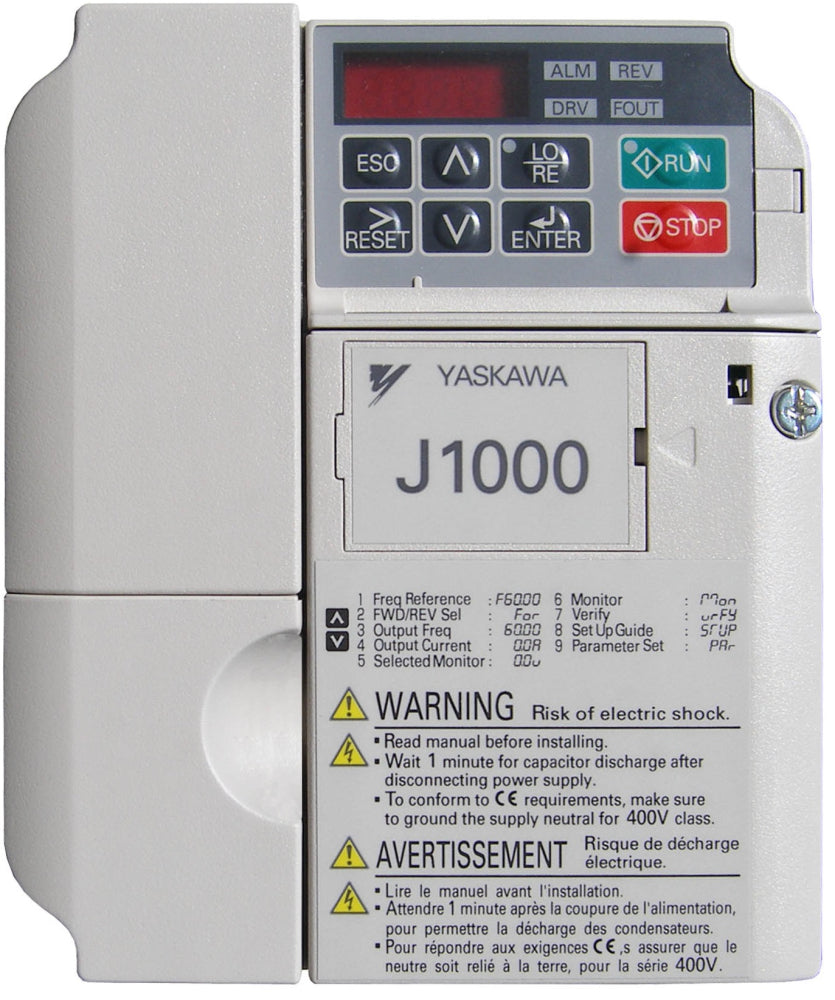

Yaskawa CIMR-JU4A0009BAA
SKU: CIMR-JU4A0009BAA
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
Manufacturer Part Number CIMR-JU4A0009BAA
Manufacturer Yaskawa
Product Series J1000
Family Series Yaskawa Drives, J1000 Series
Description Drive, AC, 4HP, 480V, 3PH, 7.2A, CT 5HP, 8.8A, VT, IP20 5in.Hx4.25in.Wx6.06in.D
Input Phase 3
HP (Constant Torque Rating) 4 hp
HP (Variable Torque Rating) 5 hp
Amps (Constant Torque Rating) 7.2 A
Amps (Variable Torque Rating) 8.8 A
Braking Type DC Injection, Dynamic Braking Transistor Included
Closed Loop No
AC Line Regenerative No
Operator Controls Built In
Motor Control-Max Level V/Hz (Scalar)
Mounting Panel
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 400 Hz
Protection Rating IP20
Dynamic Braking Trans Included
Height 5 "
Width 4.25 "
Depth 6.06 "
Net Weight 3.16 lbs
Gross Weight 4.22 lbs
-
