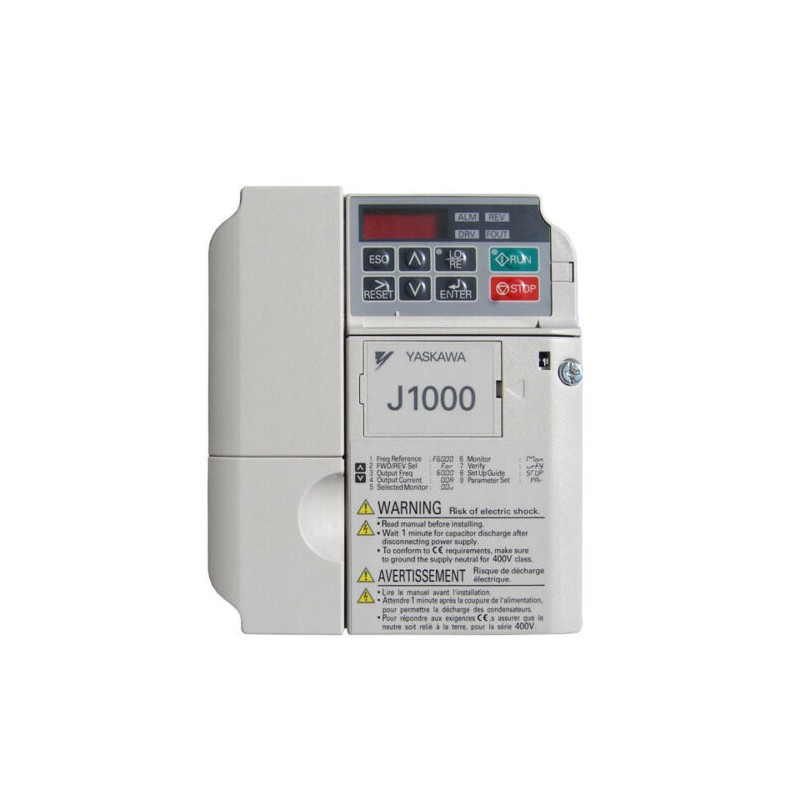

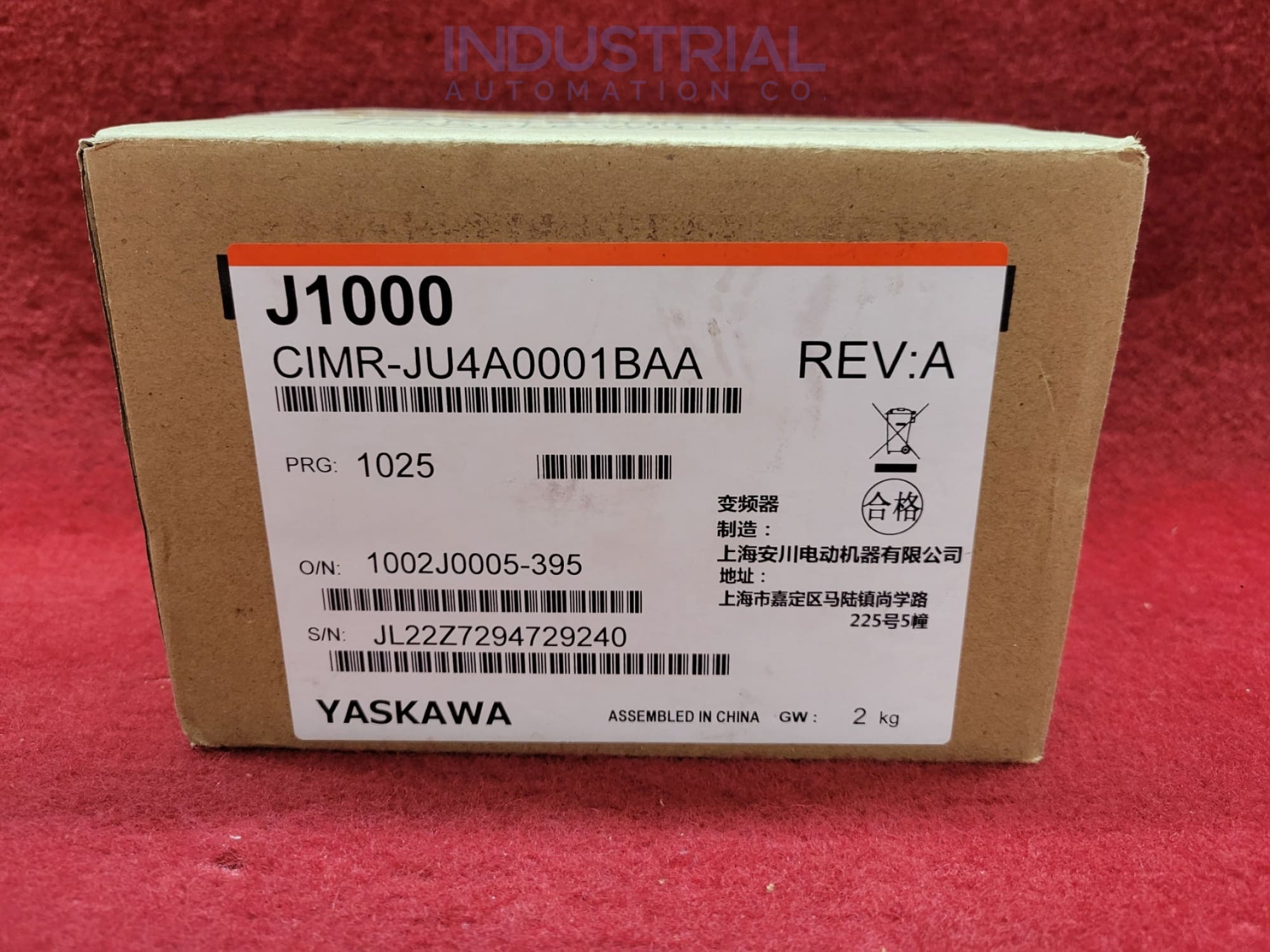

Manufacturer Part Number CIMR-JU4A0001BAA
Manufacturer Yaskawa
Product Series J1000
Family Series Yaskawa Drives, J1000 Series
Description Drive, AC, 1/2HP, 480V, 3PH, 1.2A, CT 1/2HP, 1.2A, VT, IP20 5in.Hx4.25in.Wx3.19in.D
Input Phase 3
HP (Constant Torque Rating) 0.5 hp
HP (Variable Torque Rating) 0.5 hp
Amps (Constant Torque Rating) 1.2 A
Amps (Variable Torque Rating) 1.2 A
Braking Type DC Injection, Dynamic Braking Transistor Included
Closed Loop No
AC Line Regenerative No
Operator Controls Built In
Motor Control-Max Level V/Hz (Scalar)
Mounting Panel
Nominal Input Voltage 380 VAC, 415 VAC, 480 VAC
AC Voltage 380-480 VAC
Frequency 400 Hz
Protection Rating IP20
Dynamic Braking Trans Included
Height 5 "
Width 4.25 "
Depth 3.19 "
Net Weight 1.62 lbs
Gross Weight 2.645 lbs
