Siemens 6SN1123-1AA00-0HA1
SKU: 6SN1123-1AA00-0HA1-R
We have 2 in stock
Estimated delivery: September 2nd - September 4th
Order for next-day shipment.
- Regular price
-
$330.00
- Sale price
- $330.00
IAC Certified Refurbished
$330
2 in stock
Ships today
Description

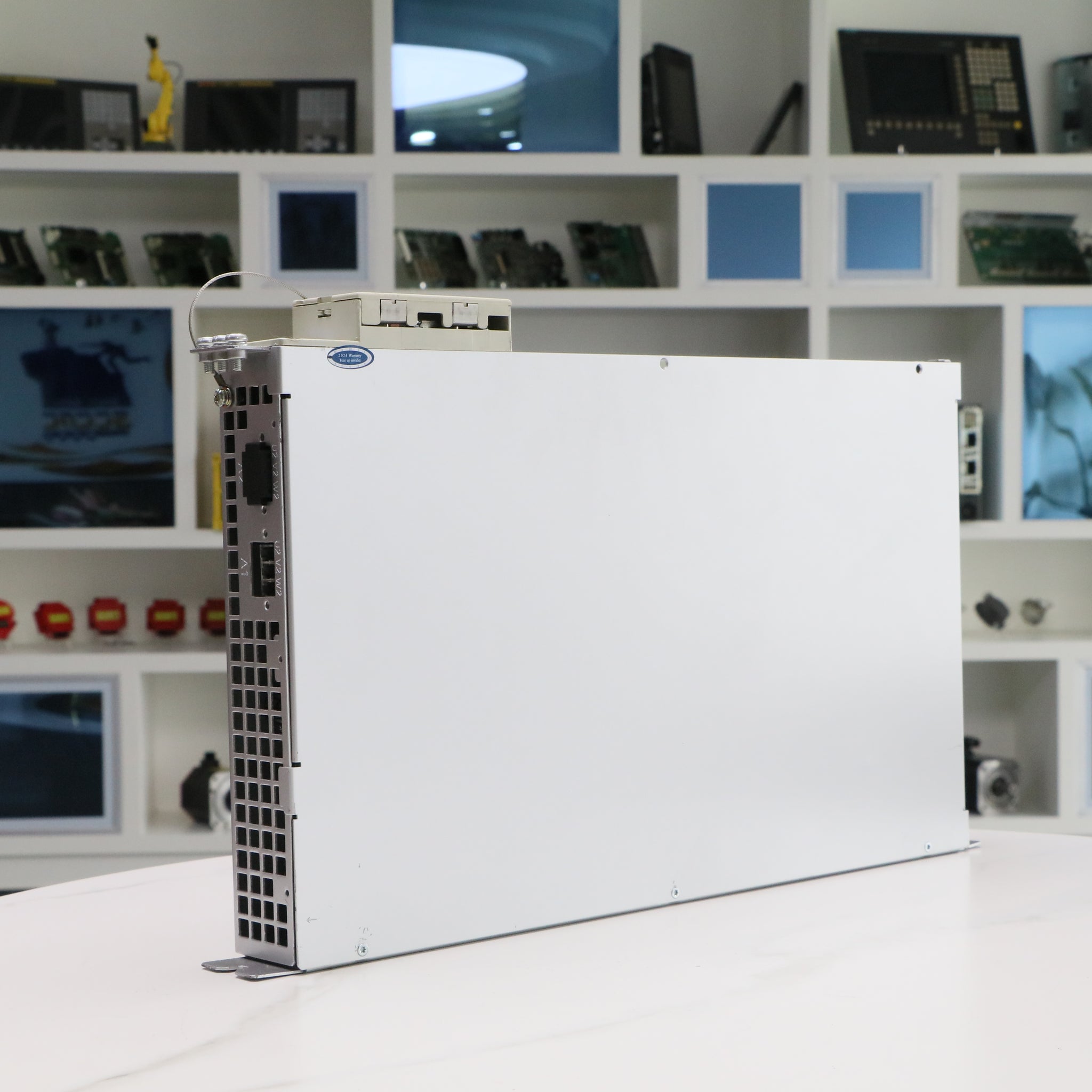

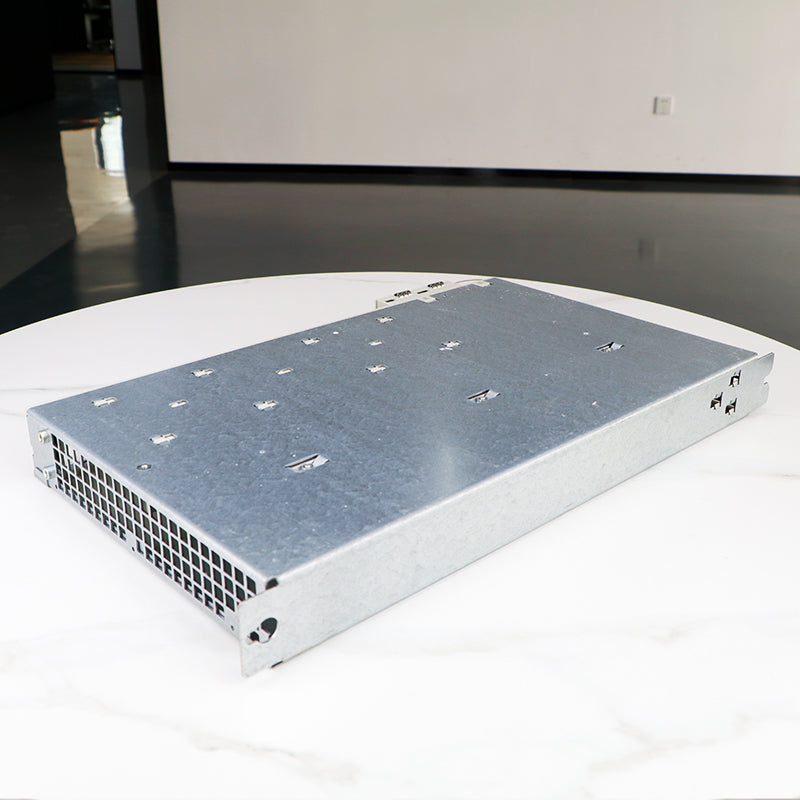

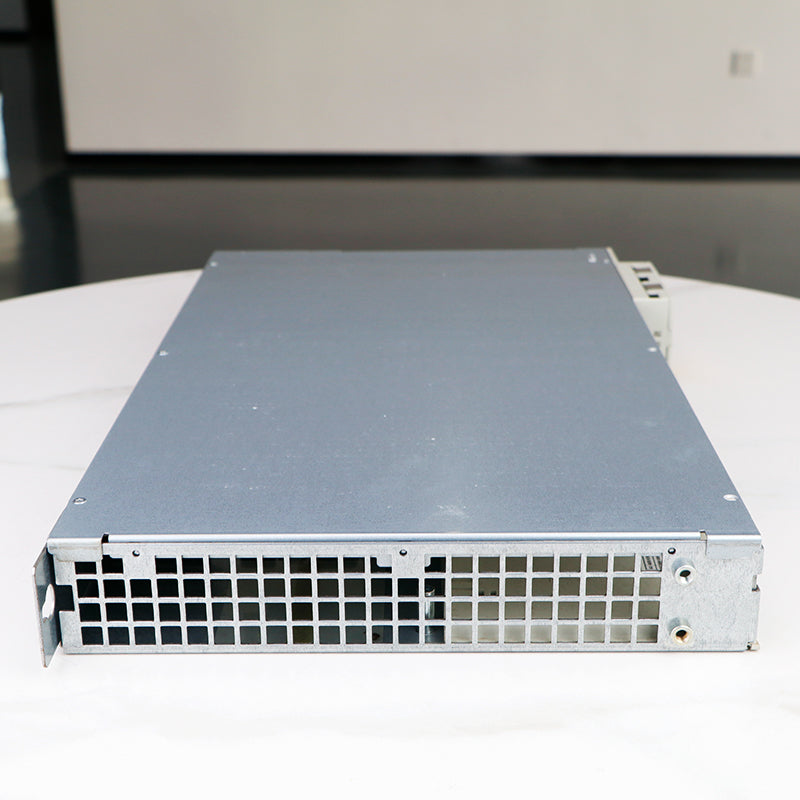

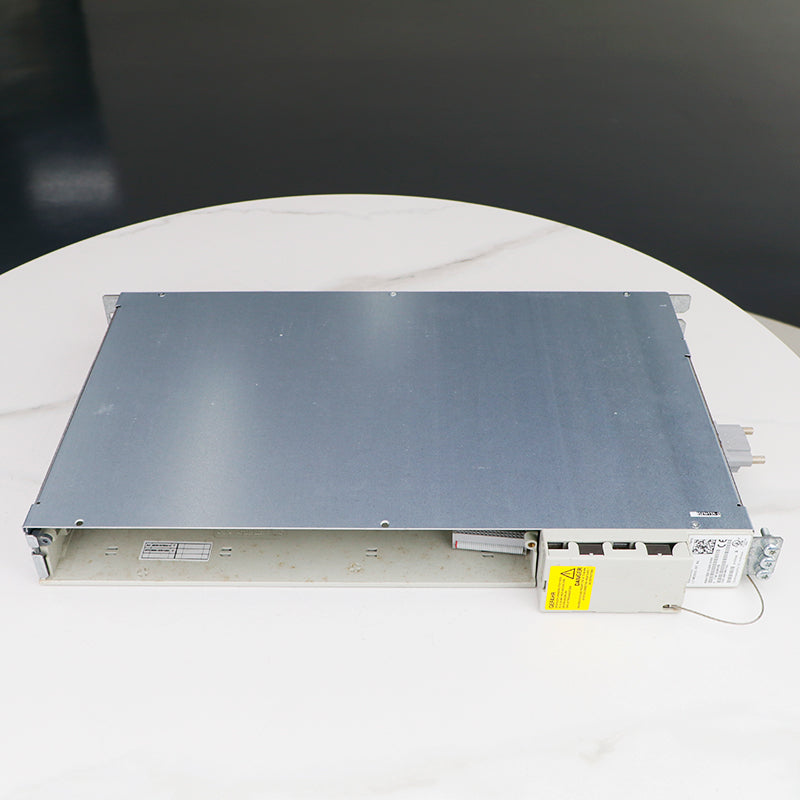

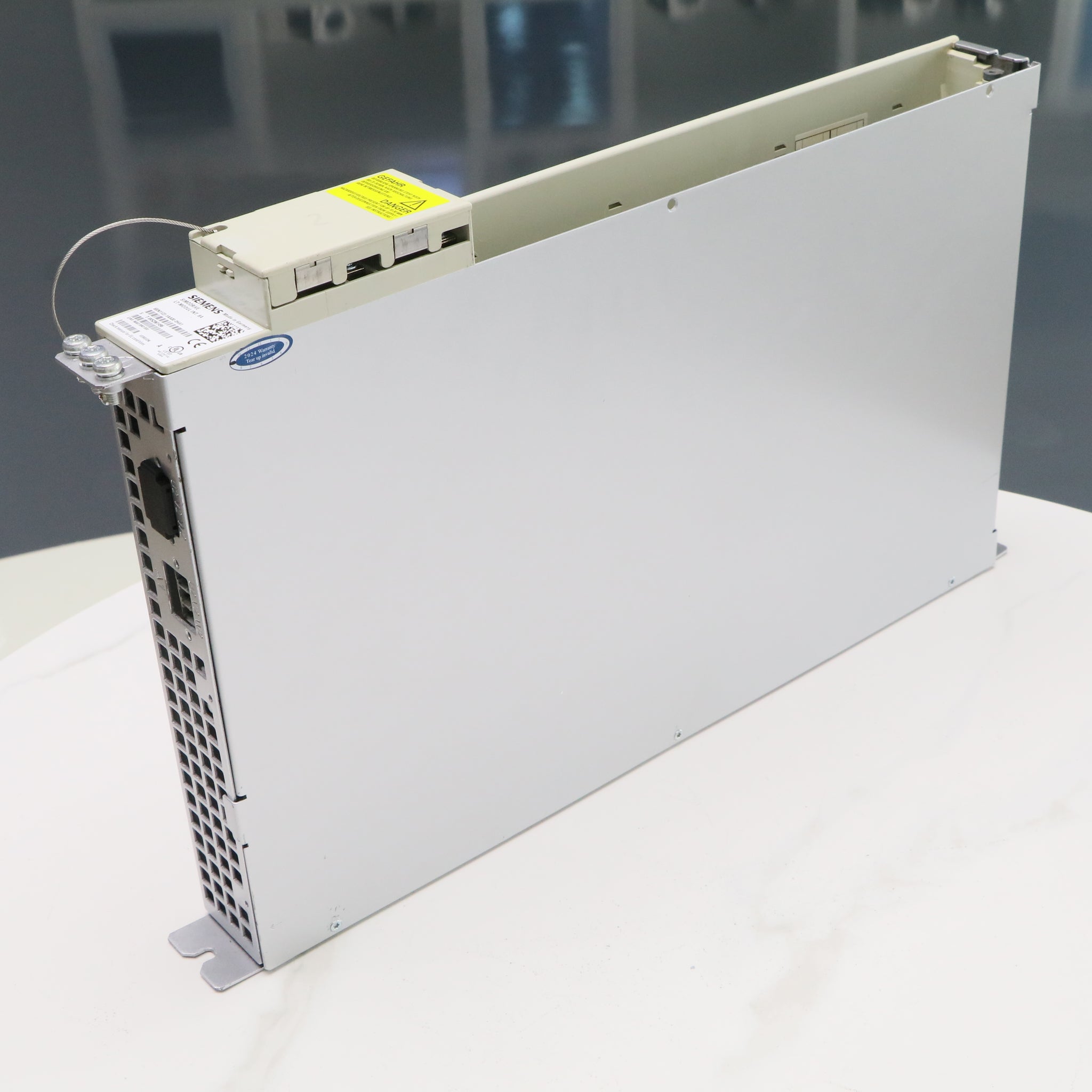

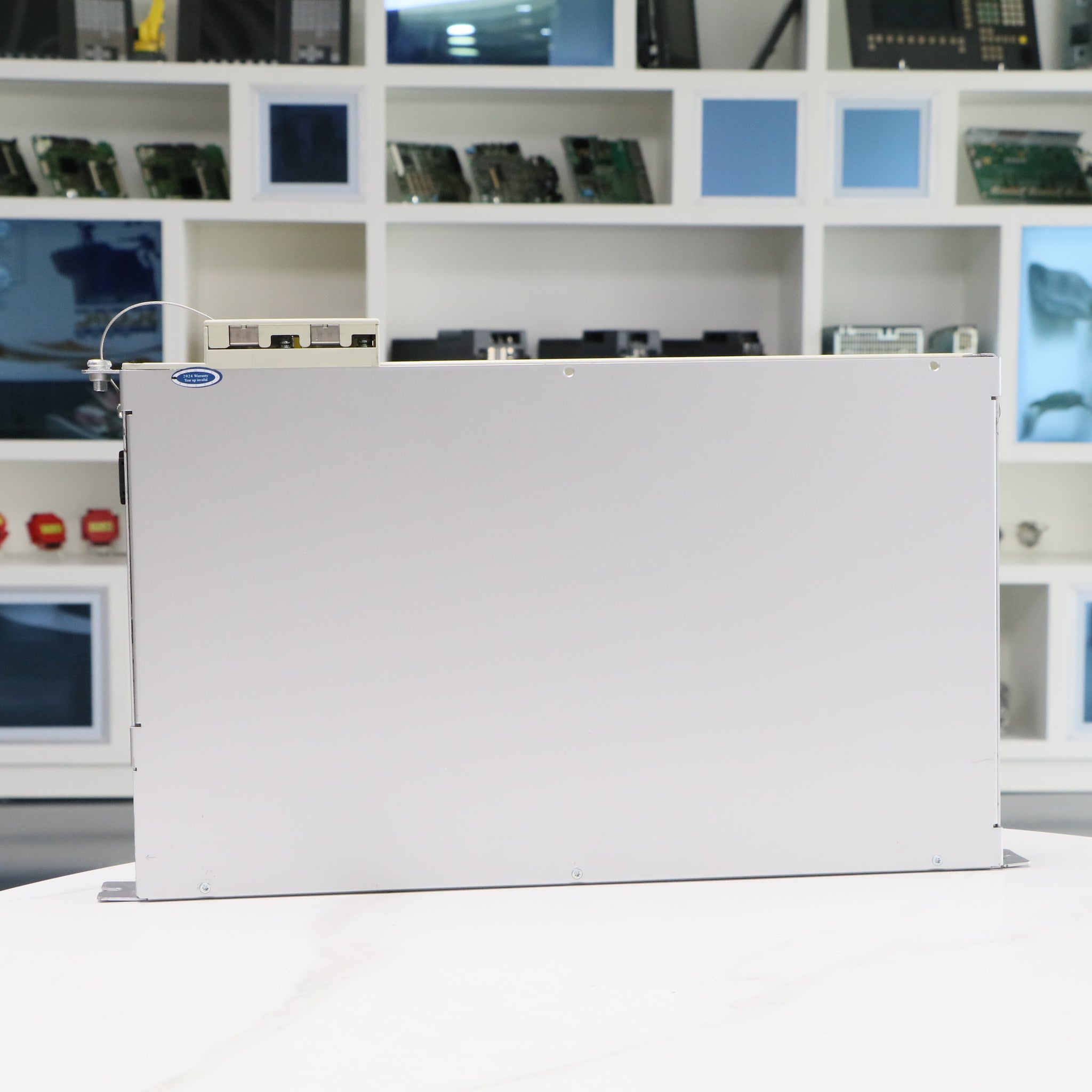

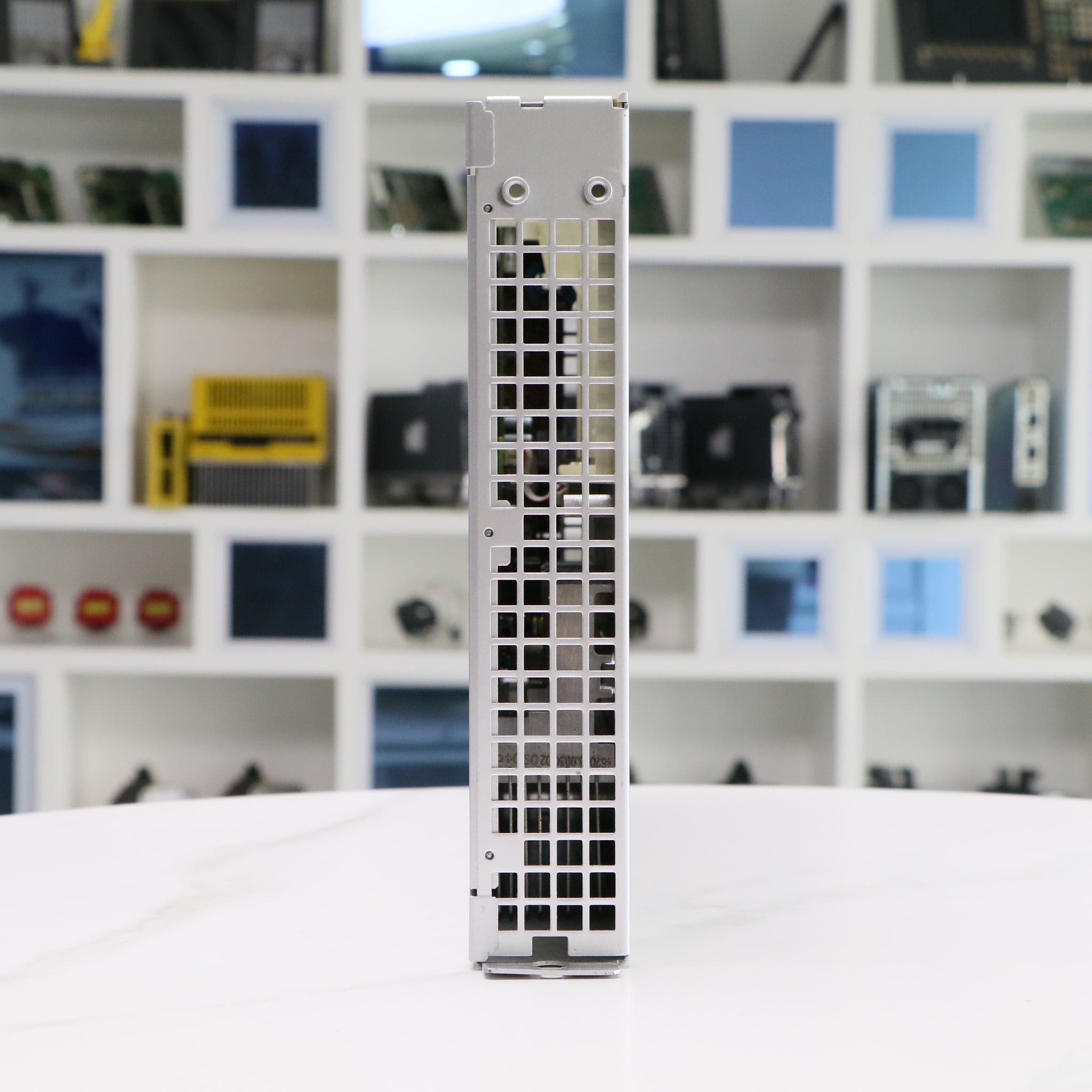

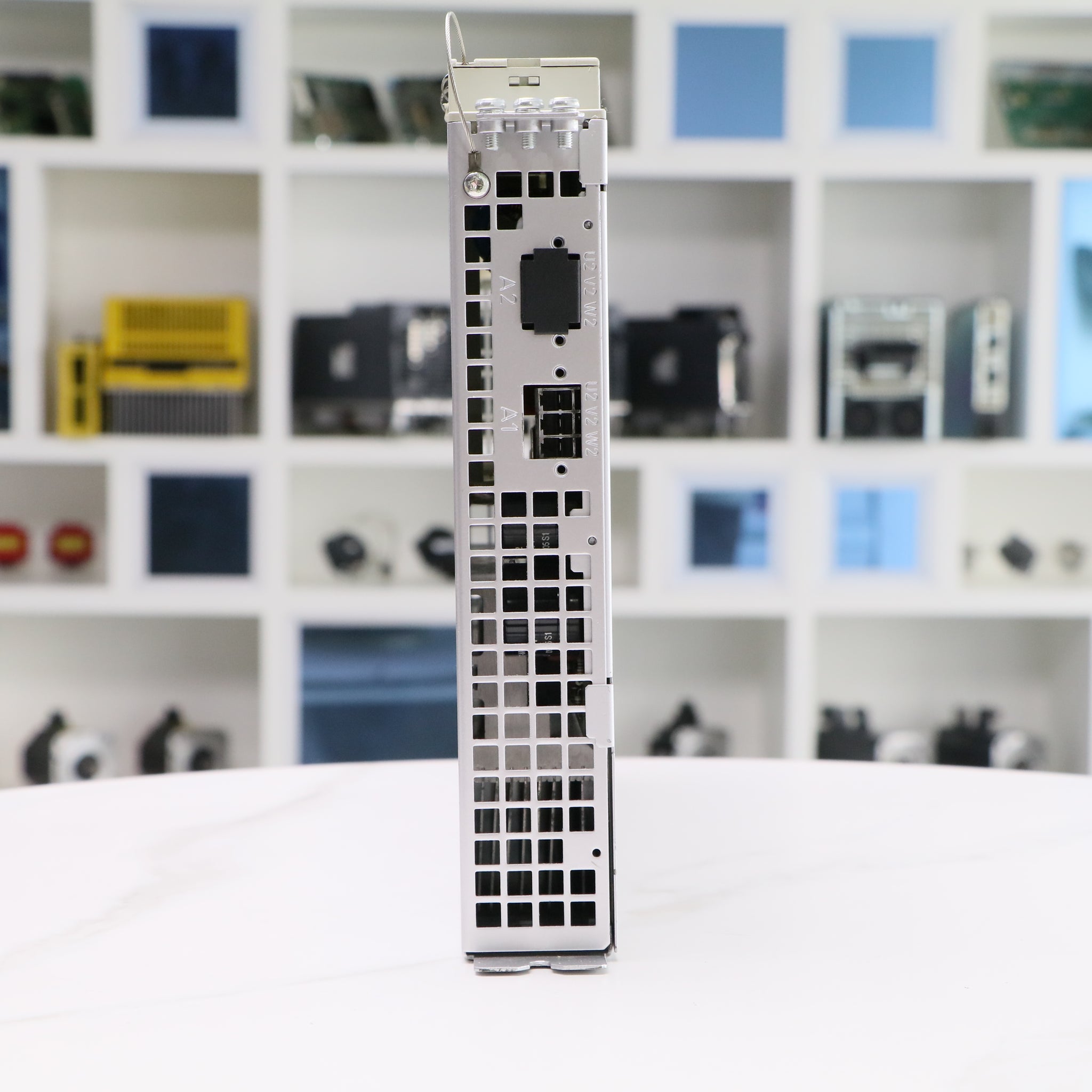

The Siemens 6SN1123-1AA00-0HA1 is a SIMODRIVE 611 power module, 1-axis, rated 8 A with internal cooling. The power module contains the IGBT output stage of the drive: it receives DC link power from the SIMODRIVE 611 infeed module and, driven by the plugged-in control unit (611-D, 611 universal, or 611-A), supplies the motor. SIMODRIVE 611 power modules are core service parts on SINUMERIK-controlled CNC machine tools.
Technical Specifications
| Series | SIMODRIVE 611 |
| Type | Power module |
| Number of axes | 1 |
| Rated current | 8 A |
| Cooling | Internal cooling |
| Rated motor currents | 1FT5 = 4 A, 1FT6 = 3 A, induction = 3 A |
| DC link voltage | 600 V DC (from SIMODRIVE 611 infeed module) |
| Control unit | Accepts SIMODRIVE 611-D, 611 universal, or 611-A plug-in control units |
| Typical application | Feed and main spindle drives on CNC machine tools |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $50/yr+3 yrs → 5 total $44/yr+5 yrs → 7 total $33/yrBEST VALUE+8 yrs → 10 total $25/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SN1123-1AA00-0HA1 is a SIMODRIVE 611 power module, 1-axis, rated 8 A with internal cooling. The power module contains the IGBT output stage of the drive: it receives DC link power from the SIMODRIVE 611 infeed module and, driven by the plugged-in control unit (611-D, 611 universal, or 611-A), supplies the motor. SIMODRIVE 611 power modules are core service parts on SINUMERIK-controlled CNC machine tools.
Technical Specifications
Series SIMODRIVE 611 Type Power module Number of axes 1 Rated current 8 A Cooling Internal cooling Rated motor currents 1FT5 = 4 A, 1FT6 = 3 A, induction = 3 A DC link voltage 600 V DC (from SIMODRIVE 611 infeed module) Control unit Accepts SIMODRIVE 611-D, 611 universal, or 611-A plug-in control units Typical application Feed and main spindle drives on CNC machine tools -
Part Number Breakdown
Part number reference — 6SN1123-1AA00-0HA1

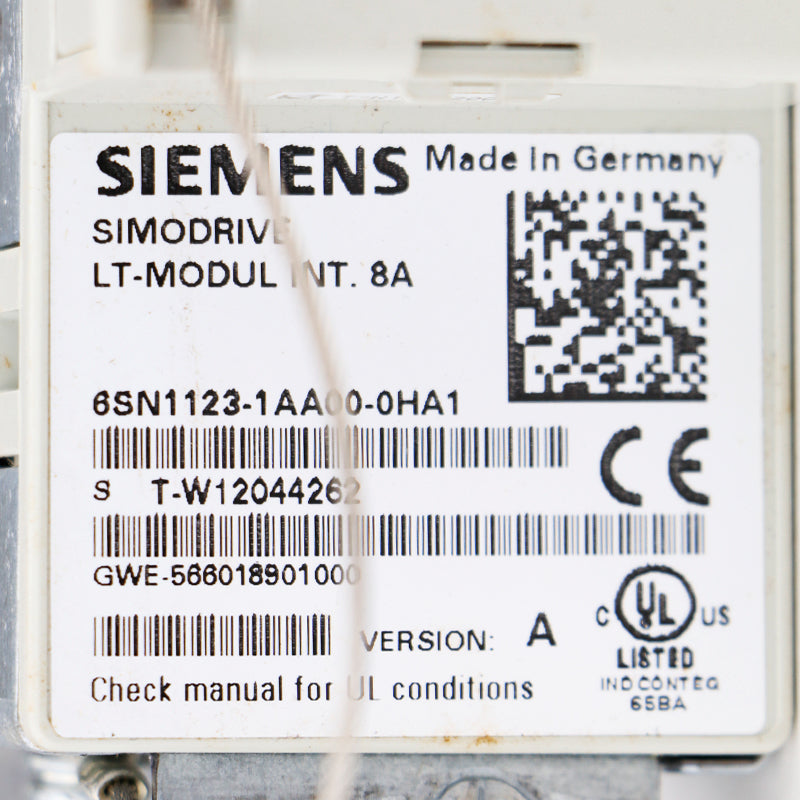

SIMODRIVE 611 POWER MODULE, 1 AXIS, 8 A, INTERNAL COOLING, MOTOR RATED CURRENT: 1FT5 = 4A, 1FT6 = 3A INDUCTION MOTOR = 3 A
Official Siemens catalog description.
Product family SIMODRIVE 611 Power Module Series SIMODRIVE 611 Type power module Fault codes (96)
Troubleshooting reference for the SIMODRIVE 611 digital Drive System:
- Fault 300007 — Axis %1 drive %2 not present or inactive
- Fault 300008 — Axis %1 drive %2 measuring circuit %3 is not available
- Fault 300009 — Axis %1 drive %2 measuring circuit %3 wrong measuring circuit type (type %4 used)
- Fault 300010 — Axis %1 drive %2 active without NC axis assignment
- Fault 300011 — Axis %1 drive %2 hardware version of spindle not supported
- Fault 300012 — Axis %1 drive %2 hardware version of control module not supported
- Fault 300020 — Drive %1 removed for diagnostics
- Fault 300100 — Drive power failure
- Fault 300101 — Bus communications failure
- Fault 300200 — Drive bus hardware fault
- Fault 300201 — Axis %1 drive %2 timeout during access, error location %3
- Fault 300202 — Axis %1 drive %2 CRC error, error location %3
See all 96 fault codes for this series →
