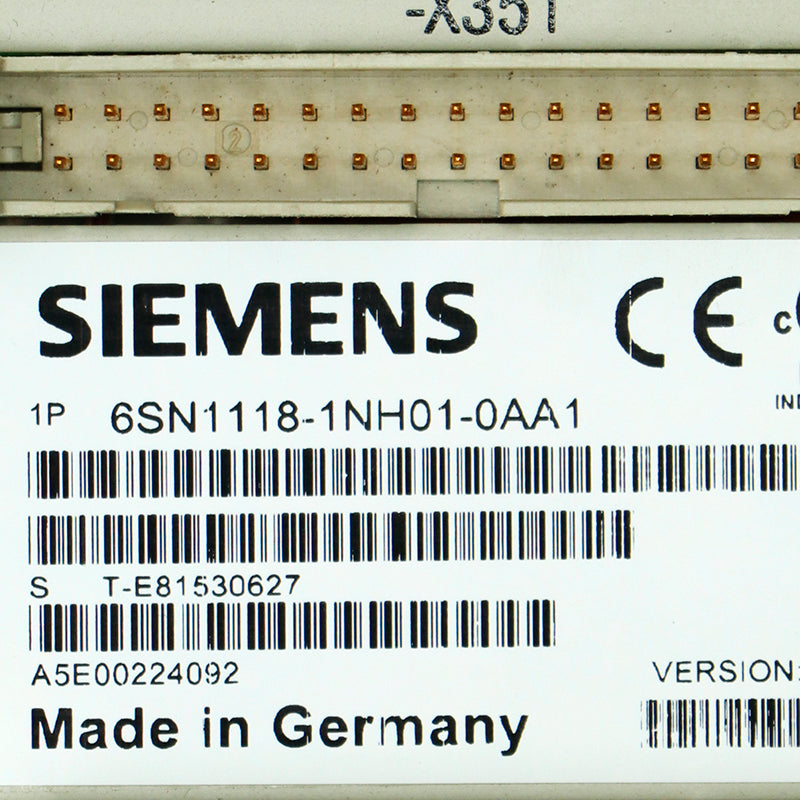

Siemens 6SN1118-1NH01-0AA1
SKU: 6SN1118-1NH01-0AA1-R
We have 1 in stock
Estimated delivery: September 1st - September 3rd
Order for next-day shipment.
- Regular price
-
$755.00
- Sale price
- $755.00
IAC Certified Refurbished
$755
1 in stock
Ships today
Description

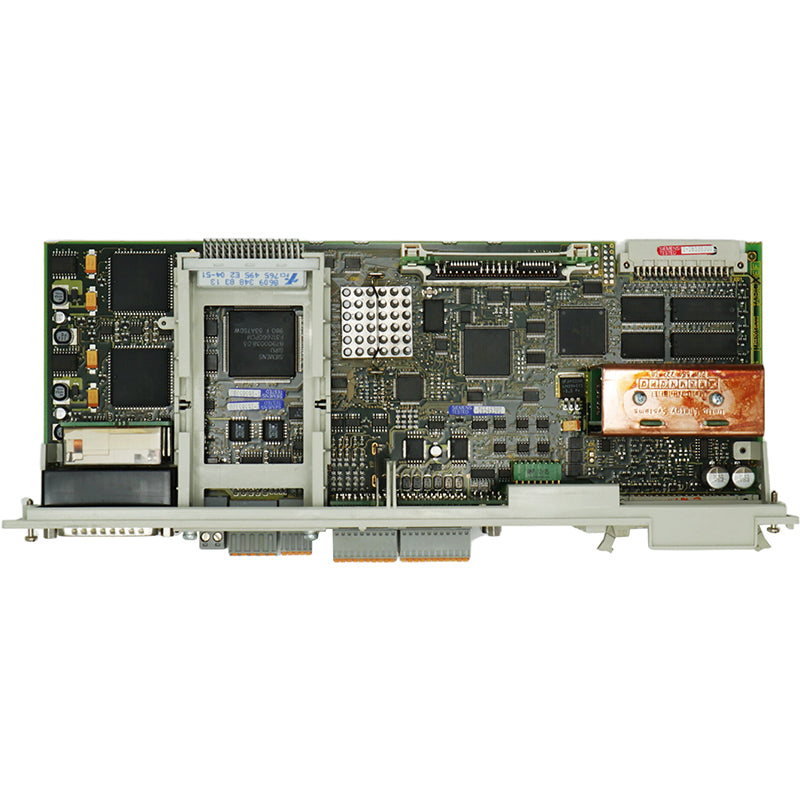

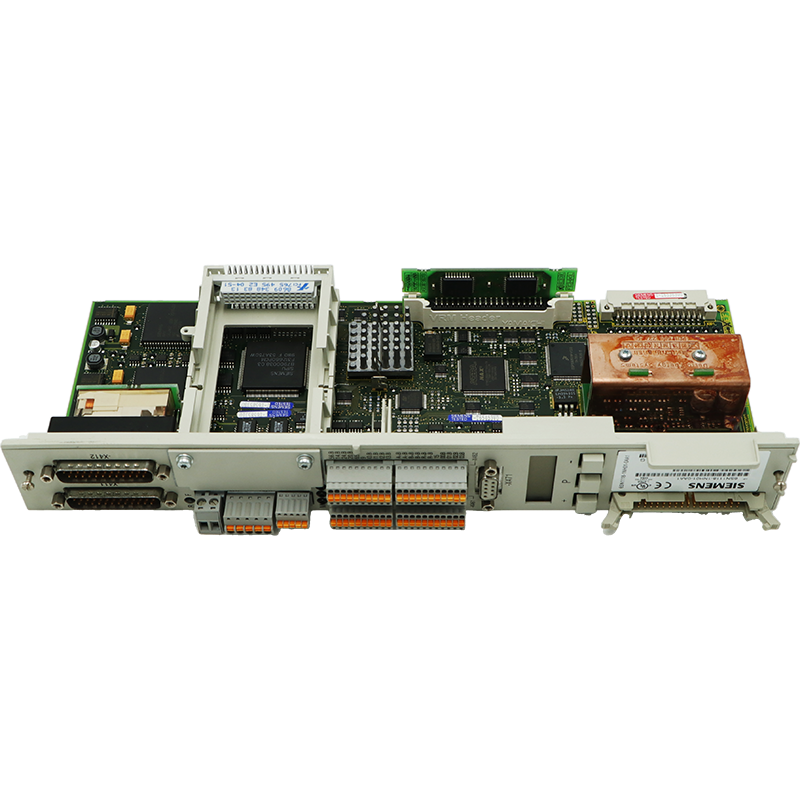

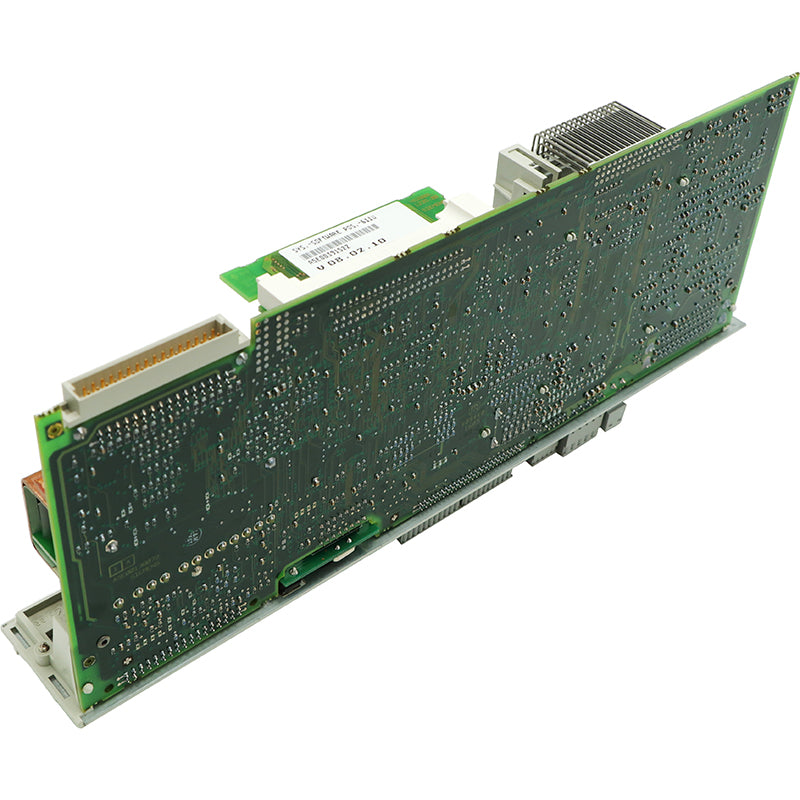

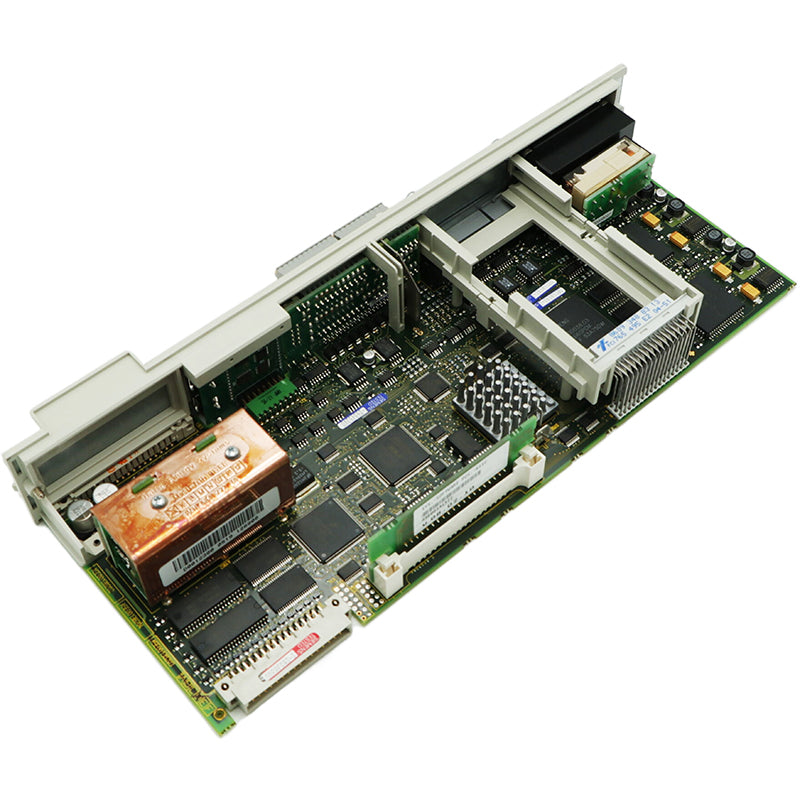

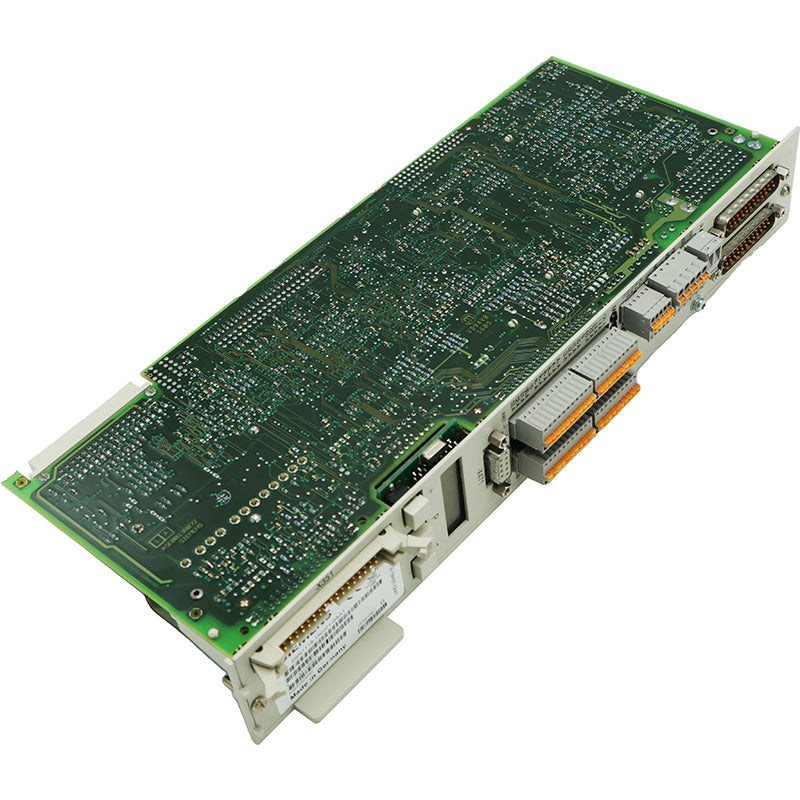

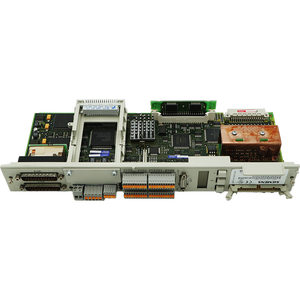

The Siemens 6SN1118-1NH01-0AA1 is a SIMODRIVE 611 universal HR 2-axis control unit with positioning functionality. It accepts incremental encoders with sin/cos 1 Vpp signals and absolute encoders with EnDat interface, and supports speed setpoint, torque setpoint, and positioning operation, expandable with option modules.
The 611 universal series operates stand-alone within a SIMODRIVE 611 drive group and is widely used to keep legacy machine tool and general motion applications running.
Technical Specifications
| Series | SIMODRIVE 611 universal HR |
| Type | Closed-loop control unit with positioning |
| Number of axes | 2 |
| Encoder interfaces | Incremental sin/cos 1 Vpp; absolute EnDat |
| Operating modes | Speed setpoint, torque setpoint, positioning |
| Expansion | Option modules (e.g. PROFIBUS DP, terminal expansion) |
| Format | Plug-in unit for SIMODRIVE 611 power module |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $113/yr+3 yrs → 5 total $101/yr+5 yrs → 7 total $76/yrBEST VALUE+8 yrs → 10 total $57/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SN1118-1NH01-0AA1 is a SIMODRIVE 611 universal HR 2-axis control unit with positioning functionality. It accepts incremental encoders with sin/cos 1 Vpp signals and absolute encoders with EnDat interface, and supports speed setpoint, torque setpoint, and positioning operation, expandable with option modules.
The 611 universal series operates stand-alone within a SIMODRIVE 611 drive group and is widely used to keep legacy machine tool and general motion applications running.
Technical Specifications
Series SIMODRIVE 611 universal HR Type Closed-loop control unit with positioning Number of axes 2 Encoder interfaces Incremental sin/cos 1 Vpp; absolute EnDat Operating modes Speed setpoint, torque setpoint, positioning Expansion Option modules (e.g. PROFIBUS DP, terminal expansion) Format Plug-in unit for SIMODRIVE 611 power module -
Part Number Breakdown
Part number reference — 6SN1118-1NH01-0AA1
SIMODRIVE 611 UNIVERSAL HR 2-AXIS CONTROL-LOOP BLOCK INCREMENTAL ENCODER SIN/COS 1 VPP ABSOLUTE VALUE ENCODER ENDAT SPEED/TORQUE SETPOINT POSITIONING EXPANDABLE BY OPTIONS
Official Siemens catalog description.
Product family SIMODRIVE 611 Control Unit Series SIMODRIVE 611 Type control unit Specifications
designation SIMODRIVE 611 universal HRS control board, 2-axis, for encoders sin/cos 1 Vpp, positioning axes 2 feedbackType incremental encoders sin/cos 1 Vpp controlMode positioning moduleType control board Source: Siemens catalog sios-103471998-pju.pdf.
Fault codes (96)
Troubleshooting reference for the SIMODRIVE 611 digital Drive System:
- Fault 300007 — Axis %1 drive %2 not present or inactive
- Fault 300008 — Axis %1 drive %2 measuring circuit %3 is not available
- Fault 300009 — Axis %1 drive %2 measuring circuit %3 wrong measuring circuit type (type %4 used)
- Fault 300010 — Axis %1 drive %2 active without NC axis assignment
- Fault 300011 — Axis %1 drive %2 hardware version of spindle not supported
- Fault 300012 — Axis %1 drive %2 hardware version of control module not supported
- Fault 300020 — Drive %1 removed for diagnostics
- Fault 300100 — Drive power failure
- Fault 300101 — Bus communications failure
- Fault 300200 — Drive bus hardware fault
- Fault 300201 — Axis %1 drive %2 timeout during access, error location %3
- Fault 300202 — Axis %1 drive %2 CRC error, error location %3
See all 96 fault codes for this series →
