Siemens 6SN1118-0DM23-0AA0
SKU: 6SN1118-0DM23-0AA0-R
We have 1 in stock
Estimated delivery: September 3rd - September 5th
Order for next-day shipment.
- Regular price
-
$725.00
- Sale price
- $725.00

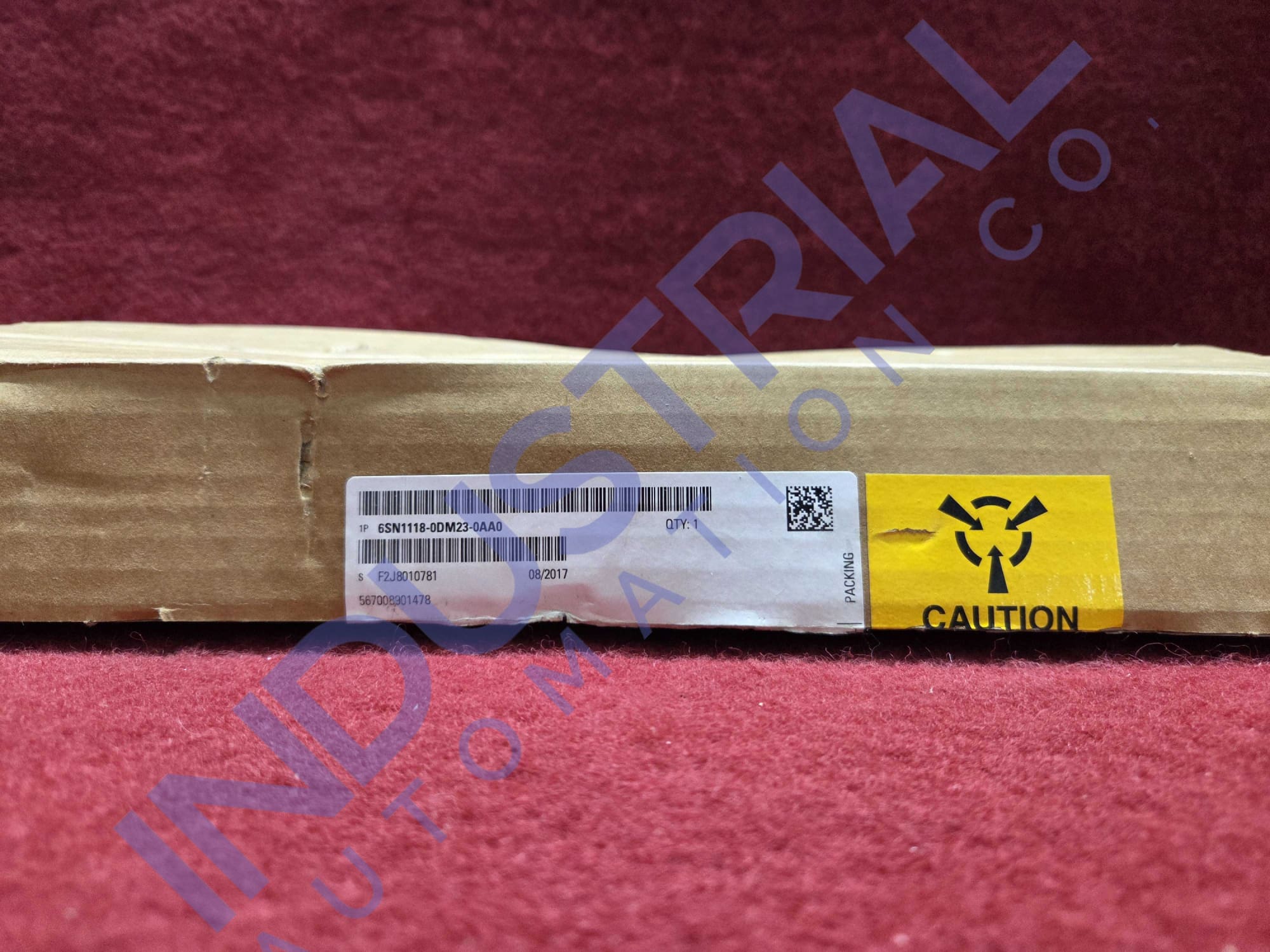

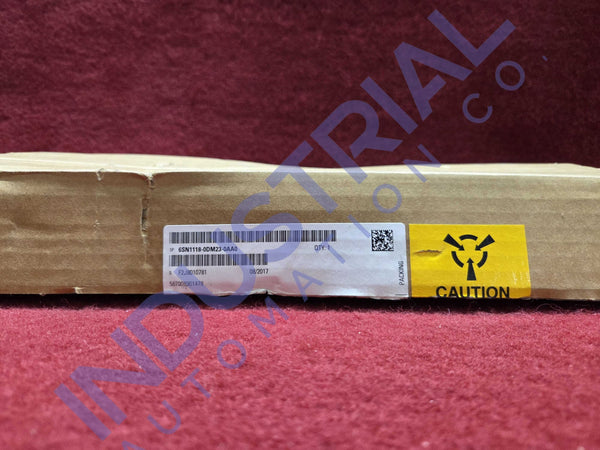

New Open Box
Available
Request a quote

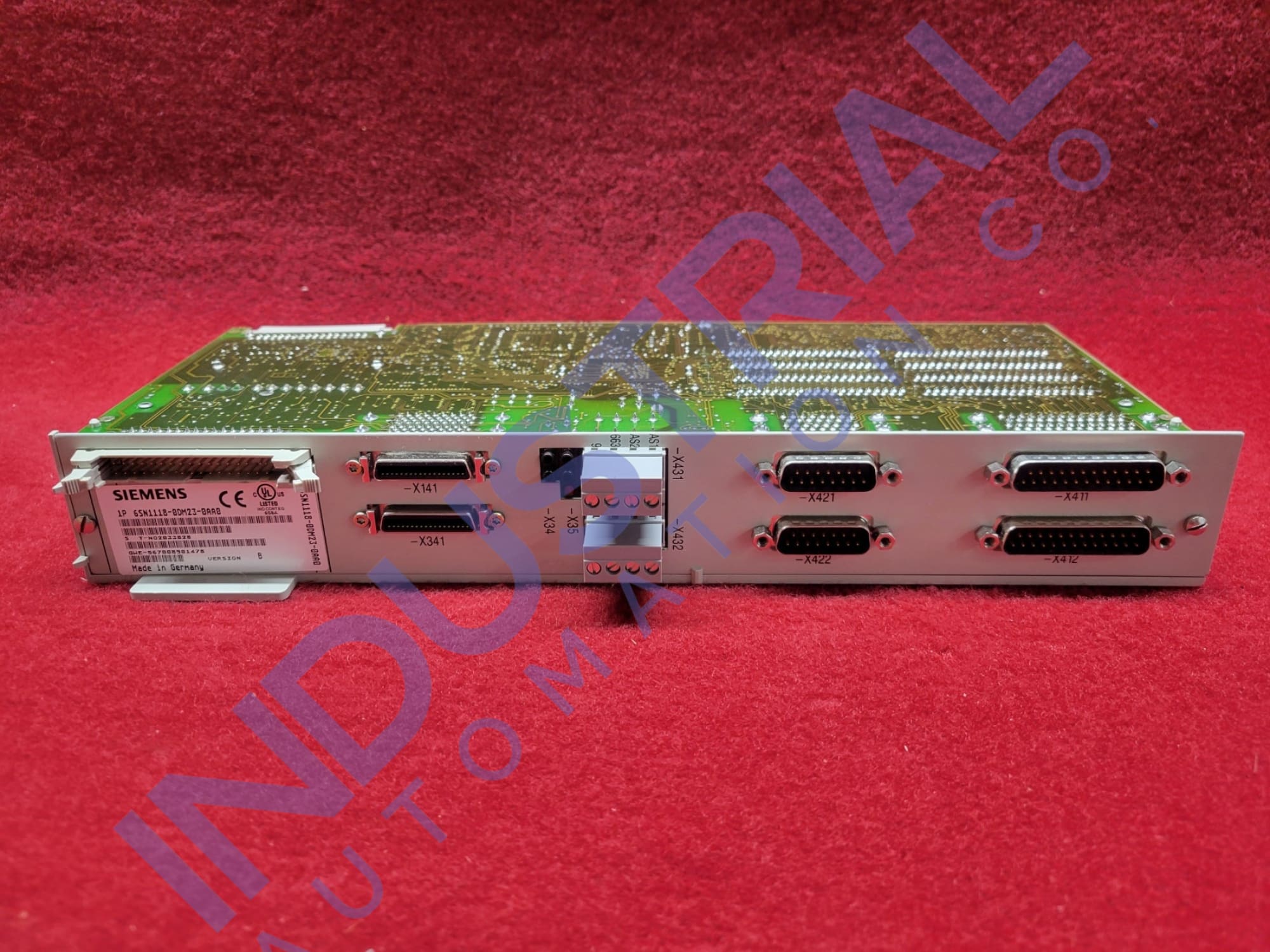

IAC Certified Refurbished
$725
1 in stock
Ships today
Description
The Siemens 6SN1118-0DM23-0AA0 is a SIMODRIVE 611-D closed-loop control plug-in unit for 2 axes, standard closed-loop control version 2, with direct measuring system (SPG-S). It supports a maximum of 2 feed drive (FDD) axes or 1 main spindle drive (MSD) axis, mounting into a SIMODRIVE 611 power module under SINUMERIK CNC control.
Technical Specifications
| Series | SIMODRIVE 611-D (digital) |
| Type | Closed-loop control plug-in unit, standard control 2 |
| Number of axes | 2 |
| Axis configuration | Max. 2 axes FDD (feed) or 1 axis MSD (main spindle) |
| Measuring system | Direct measuring system SPG-S |
| Format | Plug-in unit for SIMODRIVE 611 power module |
| Control system | SINUMERIK 840D / 810D digital CNC |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $109/yr+3 yrs → 5 total $97/yr+5 yrs → 7 total $73/yrBEST VALUE+8 yrs → 10 total $54/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SN1118-0DM23-0AA0 is a SIMODRIVE 611-D closed-loop control plug-in unit for 2 axes, standard closed-loop control version 2, with direct measuring system (SPG-S). It supports a maximum of 2 feed drive (FDD) axes or 1 main spindle drive (MSD) axis, mounting into a SIMODRIVE 611 power module under SINUMERIK CNC control.
Technical Specifications
Series SIMODRIVE 611-D (digital) Type Closed-loop control plug-in unit, standard control 2 Number of axes 2 Axis configuration Max. 2 axes FDD (feed) or 1 axis MSD (main spindle) Measuring system Direct measuring system SPG-S Format Plug-in unit for SIMODRIVE 611 power module Control system SINUMERIK 840D / 810D digital CNC -
Part Number Breakdown
Part number reference — 6SN1118-0DM23-0AA0
SIMODRIVE 611-D CLOSED-LOOP CONTROL PLUG-IN UNIT, 2 AXES, STANDARD CLOSED- LOOP CONTROL 2, WITH DIRECT MEASURING SYSTEM SPG-S, MAX. 2 AXES FDD OR 1 AXIS MSD
Official Siemens catalog description.
Product family SIMODRIVE 611 Control Unit Series SIMODRIVE 611 Type control unit Fault codes (96)
Troubleshooting reference for the SIMODRIVE 611 digital Drive System:
- Fault 300007 — Axis %1 drive %2 not present or inactive
- Fault 300008 — Axis %1 drive %2 measuring circuit %3 is not available
- Fault 300009 — Axis %1 drive %2 measuring circuit %3 wrong measuring circuit type (type %4 used)
- Fault 300010 — Axis %1 drive %2 active without NC axis assignment
- Fault 300011 — Axis %1 drive %2 hardware version of spindle not supported
- Fault 300012 — Axis %1 drive %2 hardware version of control module not supported
- Fault 300020 — Drive %1 removed for diagnostics
- Fault 300100 — Drive power failure
- Fault 300101 — Bus communications failure
- Fault 300200 — Drive bus hardware fault
- Fault 300201 — Axis %1 drive %2 timeout during access, error location %3
- Fault 300202 — Axis %1 drive %2 CRC error, error location %3
See all 96 fault codes for this series →
