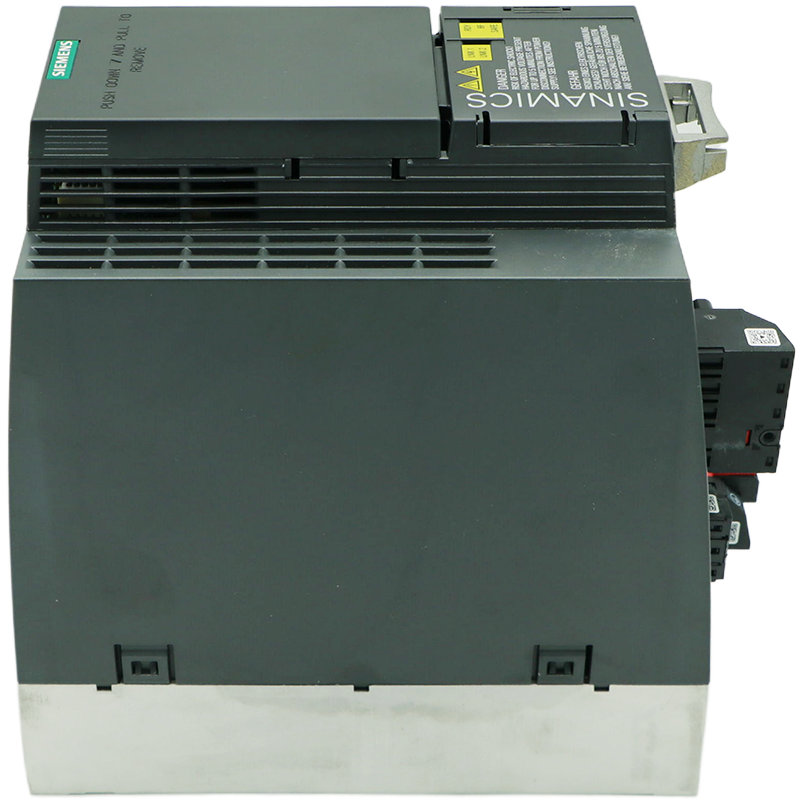

Siemens 6SL3210-1KE21-7UF1
SKU: 6SL3210-1KE21-7UF1-FS
We have 1 in stock
Estimated delivery: September 1st - September 3rd
Order for next-day shipment.
- Regular price
-
$1,464.00
- Sale price
- $1,464.00
New
$1,464
1 in stock
Ships today
New Open Box
Available
Request a quote
Description

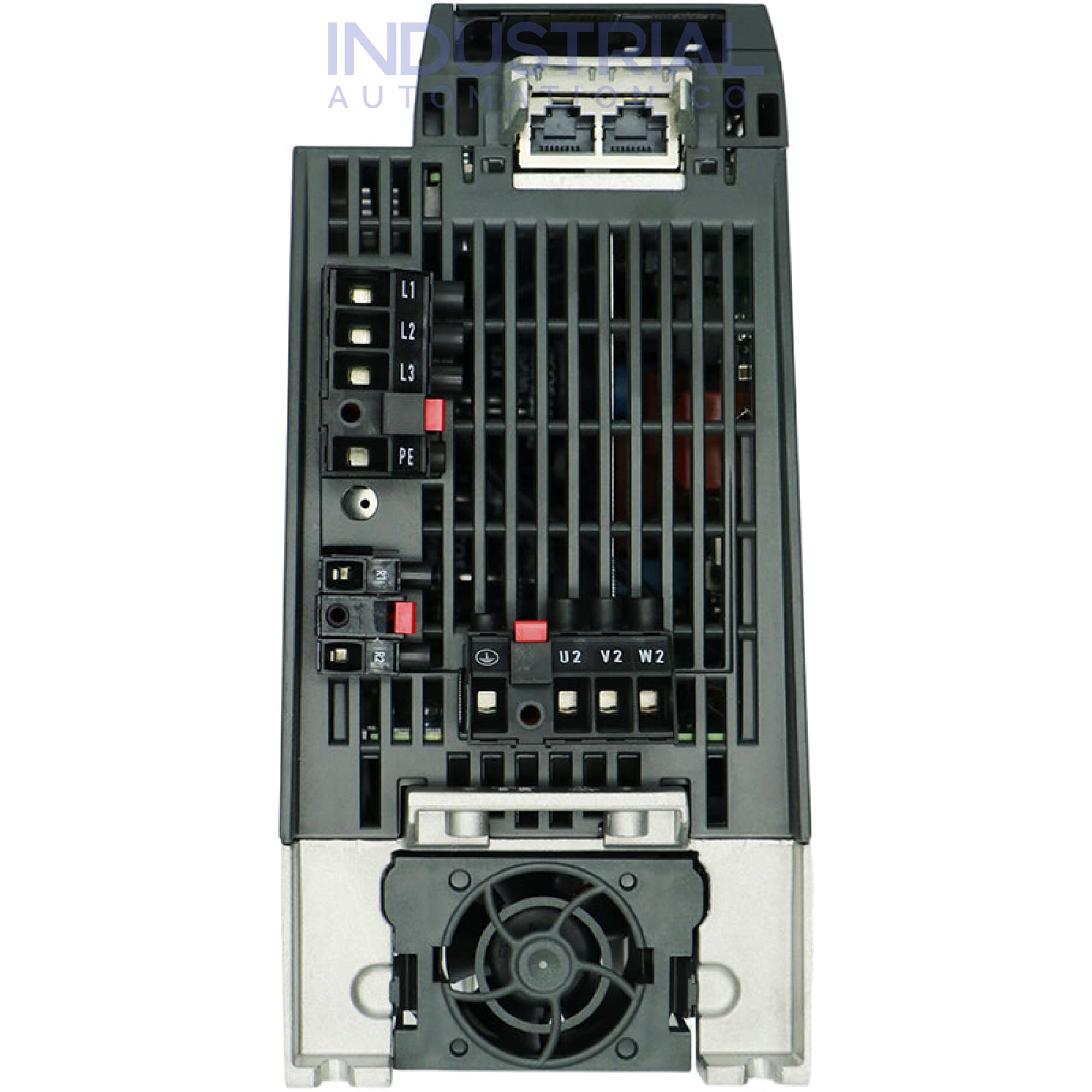

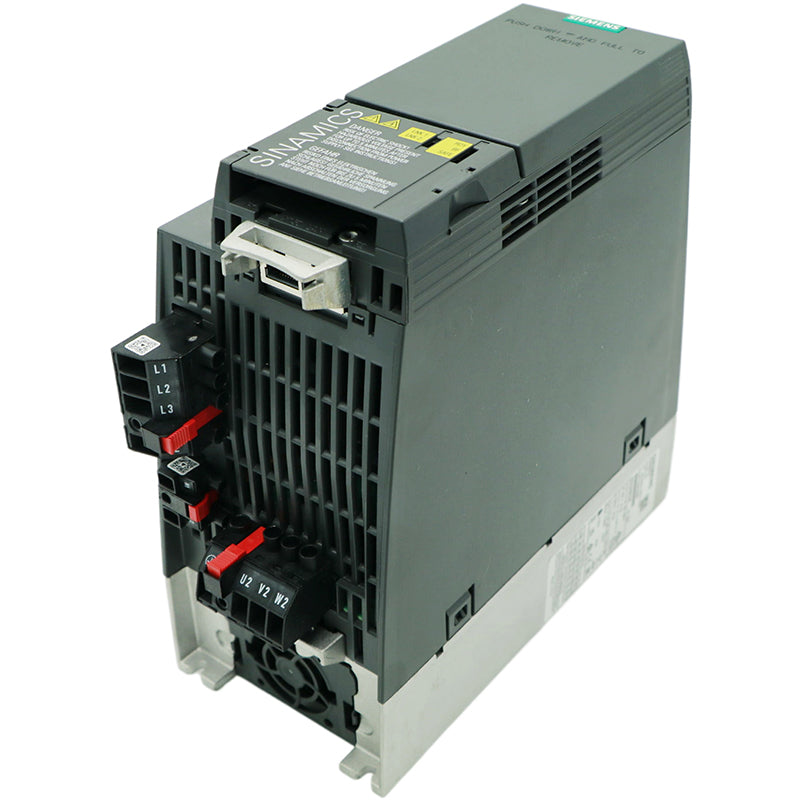

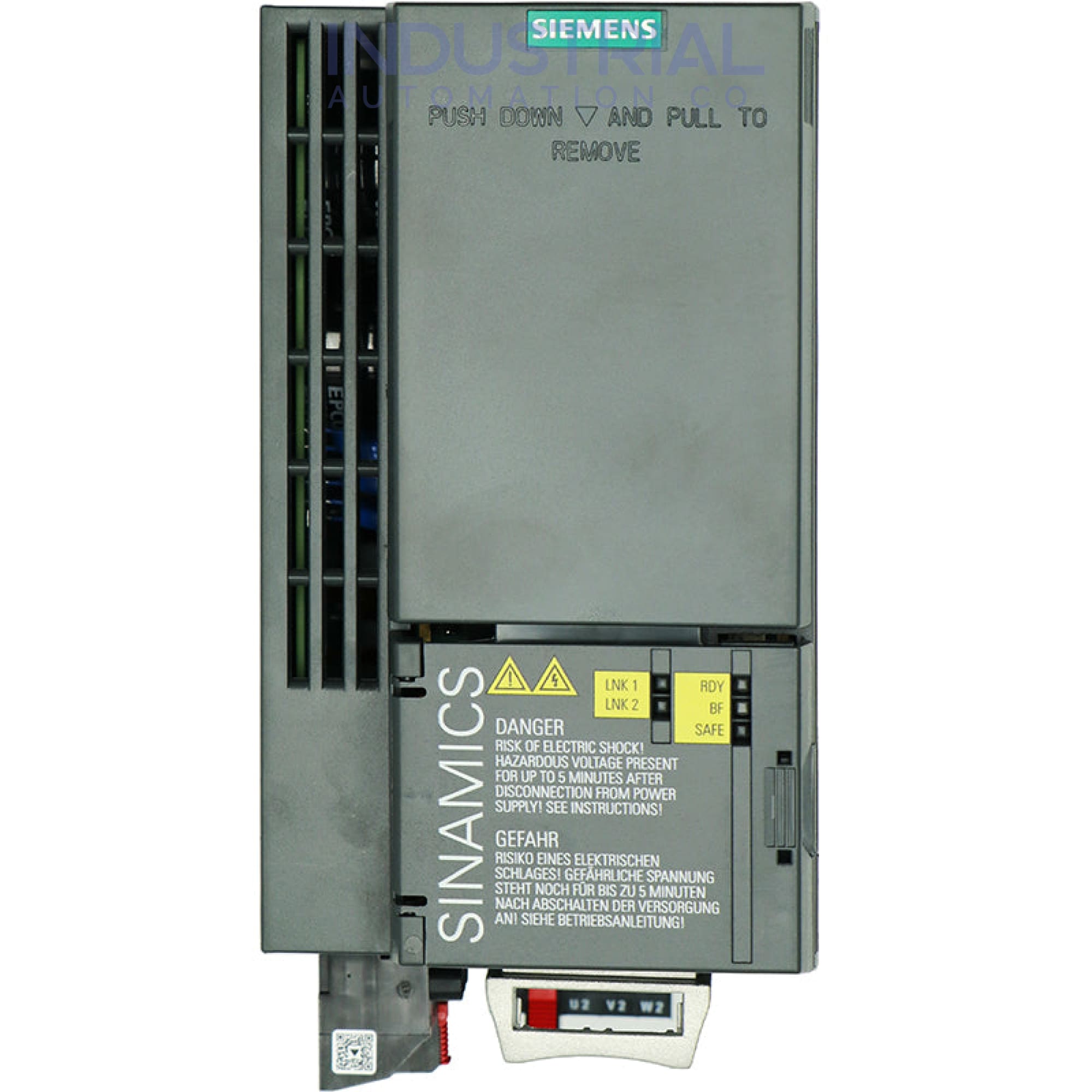

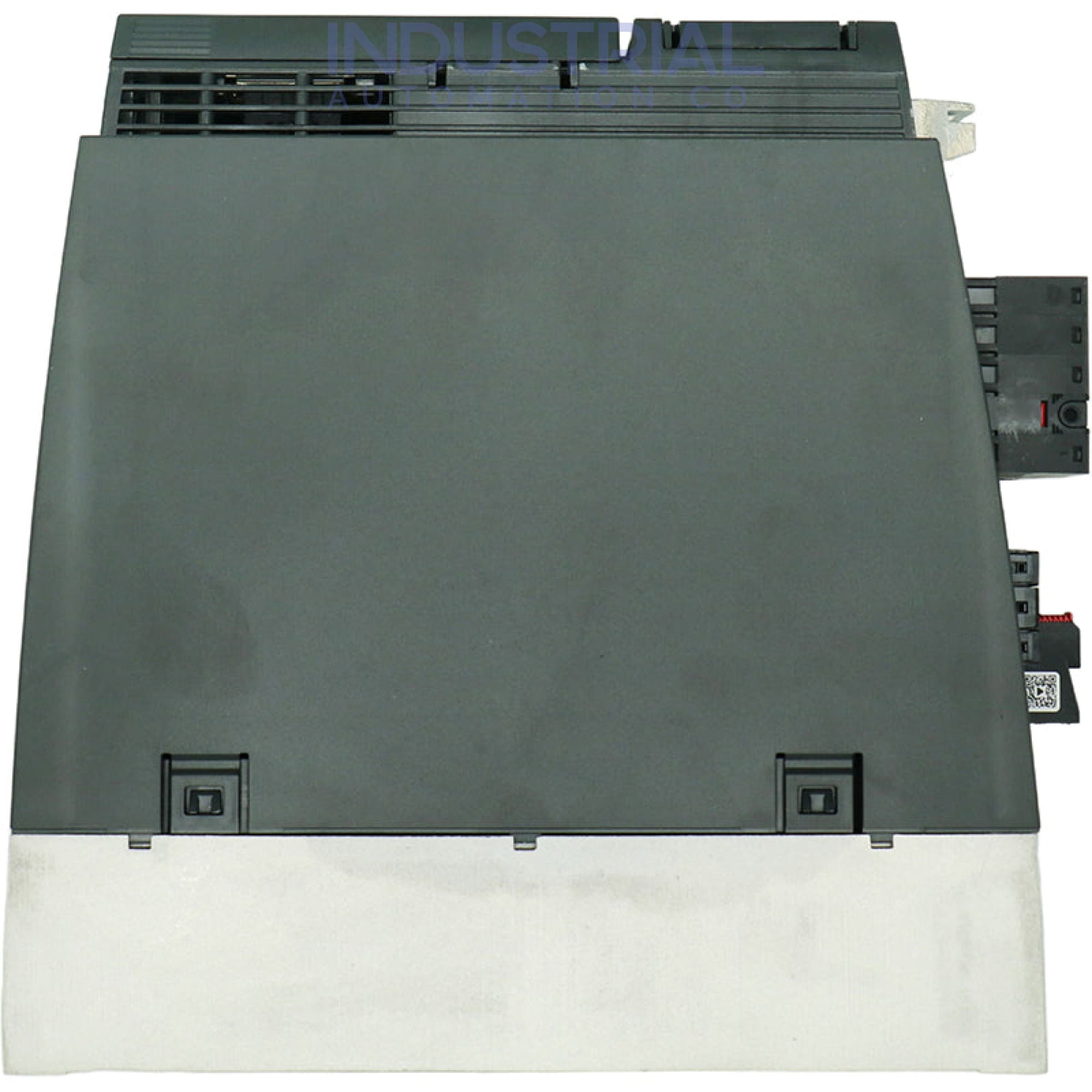

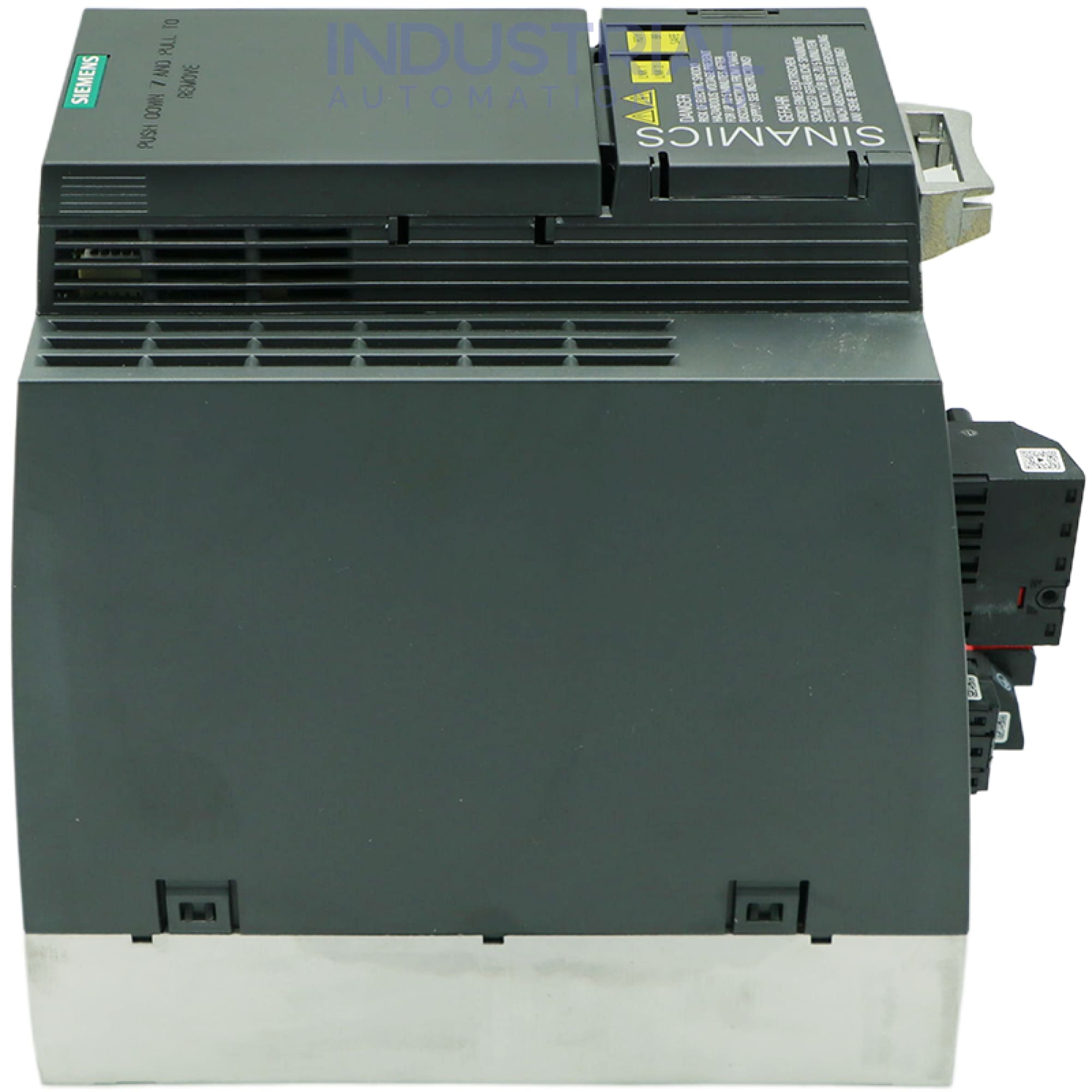

The Siemens 6SL3210-1KE21-7UF1 is a SINAMICS G120C compact frequency converter (variable frequency drive) rated 7.5 kW at low overload for three-phase 380-480 V AC supplies. The G120C family combines the power unit and control electronics in a single compact enclosure and is used for general-purpose pump, fan, compressor, conveyor, and machine drive applications.
This unit has no integrated line filter (external filter can be added where EMC requirements apply) and communicates over PROFINET. Safe Torque Off (STO) is integrated as standard, and the onboard I/O (6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output) covers basic control tasks without additional modules.
Technical Specifications
| Product family | SINAMICS G120C compact converter |
| Supply voltage | 3 AC 380-480 V +10%/-20%, 47-63 Hz |
| Rated power (low overload) | 7.5 kW (110% for 57 s, 150% for 3 s) |
| Rated power (high overload) | 5.5 kW (150% for 57 s, 200% for 3 s) |
| Line filter | Unfiltered |
| Fieldbus | PROFINET |
| I/O | 6 DI, 2 DO, 1 AI, 1 AO, 1 motor temperature input |
| Safety function | Safe Torque Off (STO) integrated |
| Control supply | External 24 V DC |
| Frame size | FSB |
| Dimensions (H x W x D) | 196 x 100 x 203 mm |
| Degree of protection | IP20 / UL open type |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $220/yr+3 yrs → 5 total $195/yr+5 yrs → 7 total $146/yrBEST VALUE+8 yrs → 10 total $110/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SL3210-1KE21-7UF1 is a SINAMICS G120C compact frequency converter (variable frequency drive) rated 7.5 kW at low overload for three-phase 380-480 V AC supplies. The G120C family combines the power unit and control electronics in a single compact enclosure and is used for general-purpose pump, fan, compressor, conveyor, and machine drive applications.
This unit has no integrated line filter (external filter can be added where EMC requirements apply) and communicates over PROFINET. Safe Torque Off (STO) is integrated as standard, and the onboard I/O (6 digital inputs, 2 digital outputs, 1 analog input, 1 analog output) covers basic control tasks without additional modules.
Technical Specifications
Product family SINAMICS G120C compact converter Supply voltage 3 AC 380-480 V +10%/-20%, 47-63 Hz Rated power (low overload) 7.5 kW (110% for 57 s, 150% for 3 s) Rated power (high overload) 5.5 kW (150% for 57 s, 200% for 3 s) Line filter Unfiltered Fieldbus PROFINET I/O 6 DI, 2 DO, 1 AI, 1 AO, 1 motor temperature input Safety function Safe Torque Off (STO) integrated Control supply External 24 V DC Frame size FSB Dimensions (H x W x D) 196 x 100 x 203 mm Degree of protection IP20 / UL open type -
Part Number Breakdown
Part number reference — 6SL3210-1KE21-7UF1
Sinamics G120C RATED POWER 7,5KW with 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ UNFILTERED I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF Integrated FIELDBUS: PROFINET-PN PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196x 100x 225,4 (HXWXD) EXTERNAL 24V
Official Siemens catalog description.
Product family SINAMICS G120C Power Converter Series SINAMICS G120C Type drive converter Specifications
designation SINAMICS G120C compact converter 7.5 kW, PROFINET, EtherNet/IP, without line filter ratedPowerKw 7.5 ratedPowerHp 10 ratedOutputCurrentA 16.5 highOverloadBaseLoadCurrentA 12.5 frameSize FSB inputVoltage 380-480 V 3 AC filterClass none fieldbus PROFINET, EtherNet/IP Source: Siemens catalog d-31-1.pdf.
Fault codes (603)
Troubleshooting reference for the SINAMICS G120 Converter (CU250S-2):
- Fault A01006 — Firmware update for DRIVE-CLiQ component required
- Fault A01007 — POWER ON for DRIVE-CLiQ component required
- Fault A01009 — CU: Control module overtemperature
- Fault A01016 — Firmware changed
- Fault A01017 — Component lists changed
- Fault A01019 — Writing to the removable data medium unsuccessful
- Fault A01020 — Writing to RAM disk unsuccessful
- Fault A01021 — Removable data medium as USB data storage medium from the PC used
- Fault A01028 — Configuration error
- Fault A01035 — ACX: Parameter back-up file corrupted
- Fault A01045 — Configuring data invalid
- Fault A01049 — It is not possible to write to file
See all 603 fault codes for this series →
