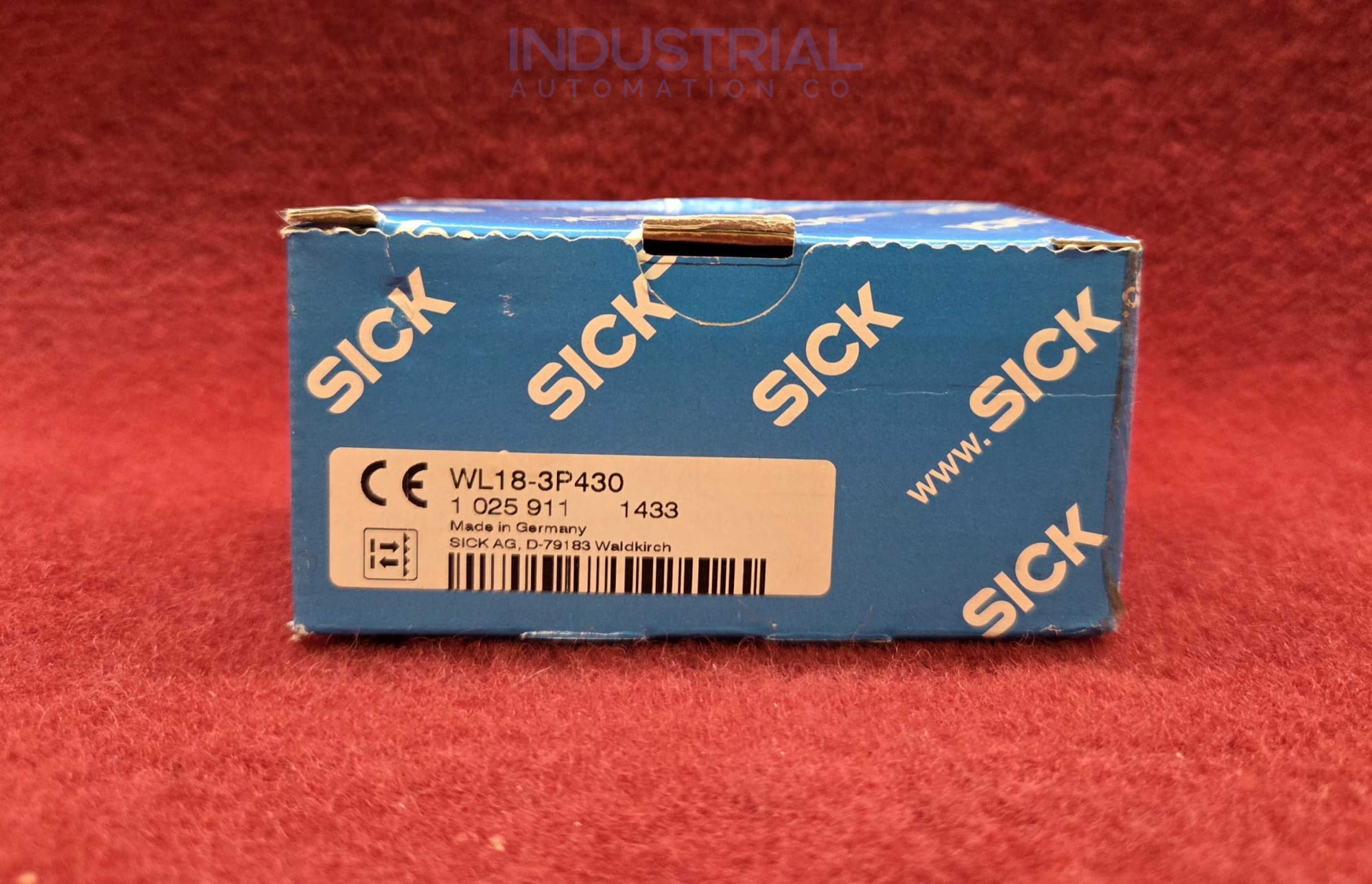

SICK WL18-3P430
SKU: WL18-3P430-FS
We have 1 in stock
Estimated delivery: June 9th - June 11th
Order for next-day shipment.
- Regular price
-
$345.00
- Sale price
- $345.00
New
$345
1 in stock
Ships today
Description
The SICK WL18-3P430 is a high-performance retro-reflective photoelectric sensor designed to handle challenging detection tasks in industrial environments. Its standout feature is autocollimation technology, which uses a single-lens system to reliably detect transparent objects—such as glass bottles, clear films, and PET trays—while eliminating blind spots right in front of the sensor face.
With a sensing range of up to 7 meters (using a standard PL80A reflector) and a fast response time of under 2.5ms, it ensures precision in high-speed packaging and logistics lines. Encased in a durable, IP67-rated housing, the WL18-3P430 is built to withstand harsh temperatures and washdowns, making it a robust "see-everything" solution.
-
Buying Options
-
Description
The SICK WL18-3P430 is a high-performance retro-reflective photoelectric sensor designed to handle challenging detection tasks in industrial environments. Its standout feature is autocollimation technology, which uses a single-lens system to reliably detect transparent objects—such as glass bottles, clear films, and PET trays—while eliminating blind spots right in front of the sensor face.
With a sensing range of up to 7 meters (using a standard PL80A reflector) and a fast response time of under 2.5ms, it ensures precision in high-speed packaging and logistics lines. Encased in a durable, IP67-rated housing, the WL18-3P430 is built to withstand harsh temperatures and washdowns, making it a robust "see-everything" solution.
-
Specifications
SICK WL18-3P430 Interactive Guide The "See-Everything" Sensor.
Meet the WL18-3P430. A robust, retro-reflective photoelectric sensor designed for harsh industrial environments. It uses Autocollimation technology to see transparent objects and eliminate blind spots.
Range: 7 Meters IP67 Waterproof PNP OutputSICK WL18How It Works: Interactive Lab
The WL18-3P430 is a Retro-reflective sensor. It sends a red light beam to a reflector, which bounces it back. When an object breaks this beam, the sensor switches. Try the simulation below to see the logic in action.
Control Panel
Output (Q): HIGH (1)Mode: Light SwitchingWL18BOXAutocollimation: Notice how the send and receive beams are on the same axis? This allows the WL18 to detect objects right up to the sensor face (Blind zone = 0).> System Ready.
> Beam established.Sensing Range Capability
The maximum range depends heavily on the reflector used. The PL80A provides the standard 7m range. Smaller reflectors reduce the operational distance.
GuaranteedMax LimitResponse & Speed
With a response time of < 2.5 ms and a switching frequency of 200 Hz, the WL18 is suitable for moderate to high-speed conveyor systems.
200 HzSwitching Frequency
645 nmWavelength (Red LED)1.5°Angle of DispersionWiring & Connection
The sensor uses a standard M12, 4-pin male connector. Click the pins on the diagram below to understand the wiring scheme.
1234Male M12 View👆Select a Pin
Click on the connector diagram to see the function, wire color, and voltage requirements.
