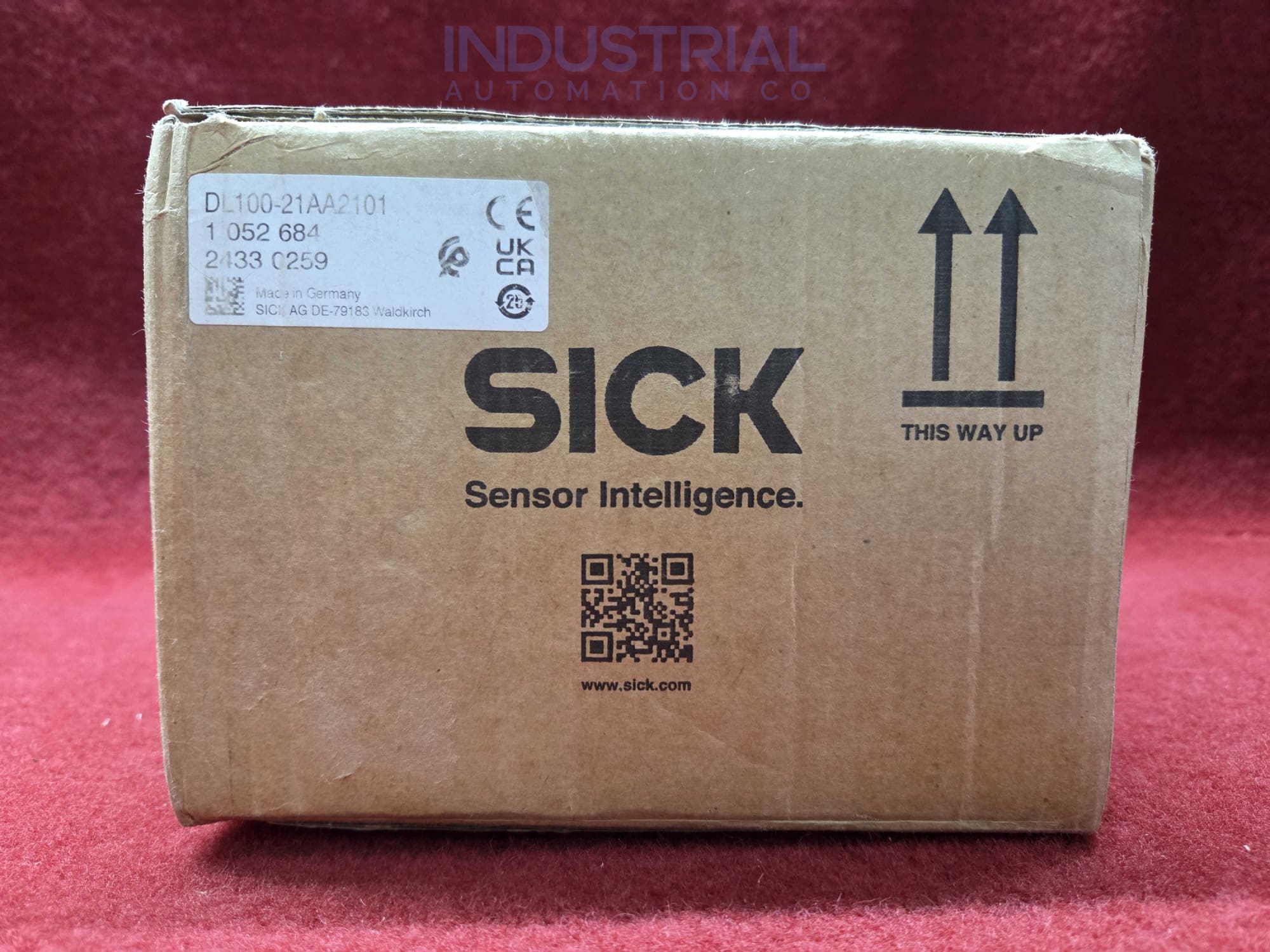

SICK DL100-21AA2101
SKU: DL100-21AA2101-FS
We have 1 in stock
Estimated delivery: June 9th - June 11th
Order for next-day shipment.
- Regular price
-
$2,990.00
- Sale price
- $2,990.00
New
$2,990
1 in stock
Ships today
Description
The SICK DL100-21AA2101 is a high-performance long-range distance sensor designed to deliver millimeter-precision positioning for automated industrial logistics. Utilizing advanced Time-of-Flight (ToF) laser technology, this Dx100 Pro model provides reliable measurements across distances of up to 100 meters, making it the ideal solution for automated stacker cranes and transfer cars. The specific "21AA2101" model features a Synchronous Serial Interface (SSI), which transmits position data as a high-speed, noise-immune digital bit stream directly to motion controllers. Built for harsh environments, it includes an integrated heater to operate in temperatures as low as -40°C, ensuring maximum system availability and precise control loop integration.
- DISTANCE SENSOR
- LONG RANGE
- 250 MA
- 18-30 VDC
- 0.15-1 METER RANGE
- 2 MS RESPONSE TIME
- M12 CONNECTOR
- 6 DIGIT DISPLAY
-
Buying Options
-
Description
The SICK DL100-21AA2101 is a high-performance long-range distance sensor designed to deliver millimeter-precision positioning for automated industrial logistics. Utilizing advanced Time-of-Flight (ToF) laser technology, this Dx100 Pro model provides reliable measurements across distances of up to 100 meters, making it the ideal solution for automated stacker cranes and transfer cars. The specific "21AA2101" model features a Synchronous Serial Interface (SSI), which transmits position data as a high-speed, noise-immune digital bit stream directly to motion controllers. Built for harsh environments, it includes an integrated heater to operate in temperatures as low as -40°C, ensuring maximum system availability and precise control loop integration.
- DISTANCE SENSOR
- LONG RANGE
- 250 MA
- 18-30 VDC
- 0.15-1 METER RANGE
- 2 MS RESPONSE TIME
- M12 CONNECTOR
- 6 DIGIT DISPLAY
-
Specifications
SICK DL100-21AA2101 Datasheet Long Range Distance SensorDL100-21AA2101
Dx100 Pro | SSI Interface
The DL100 Pro is the industry standard for positioning automated stacker cranes (AS/RS) and transfer cars. Using Time-of-Flight laser technology, it measures distances up to 100 meters with millimeter precision. This specific model utilizes an SSI (Synchronous Serial Interface), transmitting position data as a high-speed digital bit-stream immune to electrical noise.
Range 0.15 – 100 mInterface SSI (24-bit)Temp -40°C ... +55°CSICKDL100 ProThe "21" = SSI
The code 21AA2101 defines the output. Unlike analog sensors (0-10V) which can fluctuate with noise, SSI sends a precise digital number.
How it worksThe controller sends a clock pulse train. The sensor replies by shifting out data bits synchronously. Fast, digital, precise.
24-Bit Data Stream Example Position: 42,501.2 mm000000101100110010110010MSB (Most Significant Bit) LSB (Least Significant Bit)Performance over Distance
Accuracy (mm)10m20m30m40m50m60m70m80m90m100mTypical accuracy ±2 mm typical across full range.DL100-21AA2101 Specifications
Measuring Range0.15 m ... 100 mResolution0.1 mm, 0.125 mm, 1 mm, 10 mm, 100 mm (Adjustable)Digital OutputSSI (Synchronous Serial Interface)Response Time2 msLight SourceLaser, Red (Class 2, Eye Safe)Ambient Temperature-40 °C ... +55 °C (Heater Included)Supply Voltage18 V DC ... 30 V DCConnection TypeMale connector, M12, 8-pin, SpeedCon™ -
