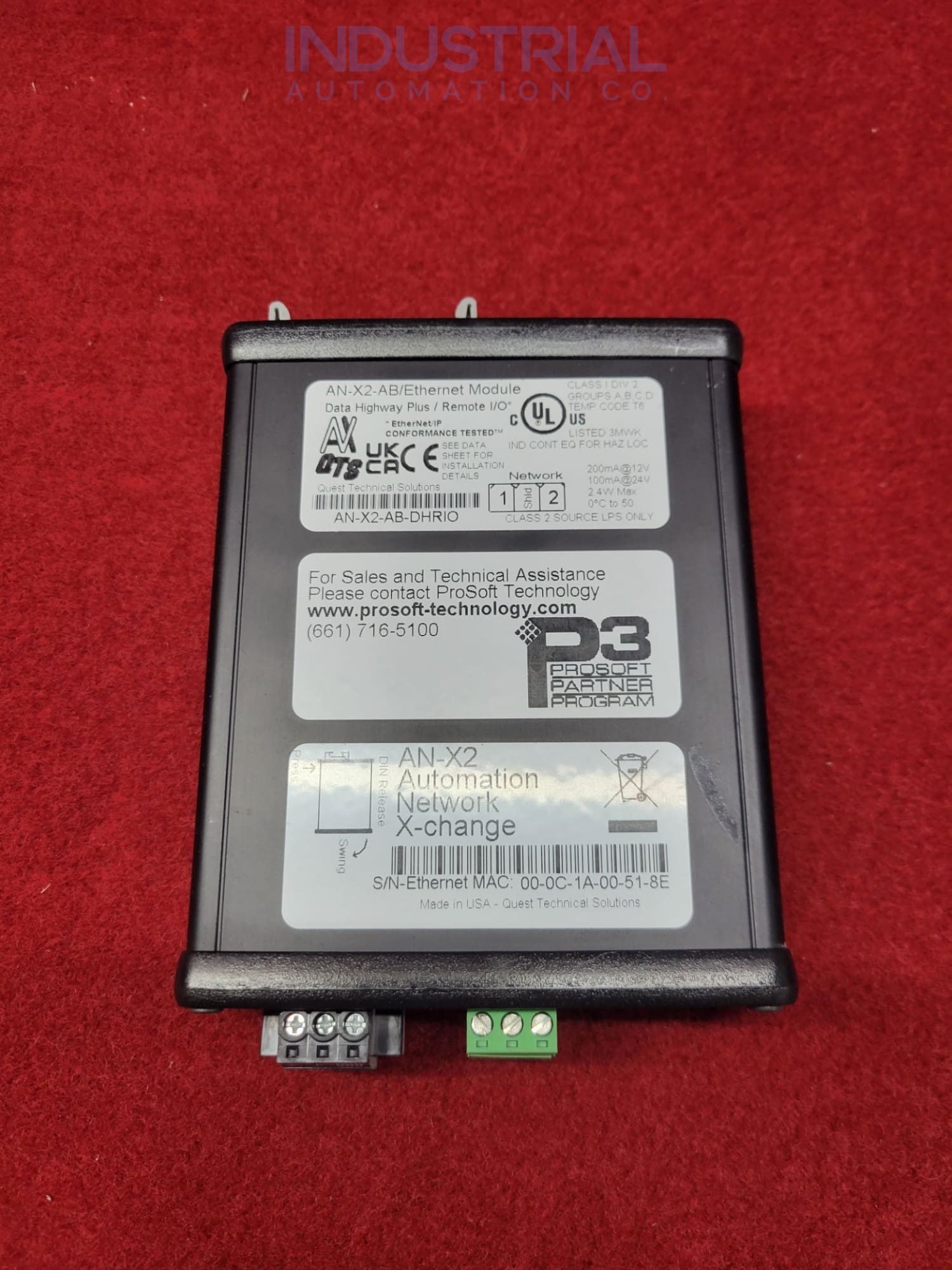

ProSoft AN-X2-AB-DHRIO
SKU: AN-X2-AB-DHRIO-NS
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice, here.
The AN-X2-AB-DHRIO is a versatile communication module developed by Prosoft Technology, designed to seamlessly integrate modern Allen-Bradley PACs, like ControlLogix and CompactLogix, with legacy Remote I/O and Data Highway Plus networks. This compact device supports both DIN rail and desktop mounting options and features a robust Ethernet/IP interface capable of 10/100 Mbps, ensuring efficient network connectivity. With support for multiple baud rates from 57.6 to 230.4 kbaud, the module efficiently maps remote I/O data to ControlLogix, enhancing the migration process of mature systems without the need for full replacement. Additional functionalities include a built-in Web server for remote monitoring and configuration, simplifying system management and reducing downtime while providing a flexible and cost-effective solution to automation challenges.
-
Buying Options
-
Description
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice, here.
The AN-X2-AB-DHRIO is a versatile communication module developed by Prosoft Technology, designed to seamlessly integrate modern Allen-Bradley PACs, like ControlLogix and CompactLogix, with legacy Remote I/O and Data Highway Plus networks. This compact device supports both DIN rail and desktop mounting options and features a robust Ethernet/IP interface capable of 10/100 Mbps, ensuring efficient network connectivity. With support for multiple baud rates from 57.6 to 230.4 kbaud, the module efficiently maps remote I/O data to ControlLogix, enhancing the migration process of mature systems without the need for full replacement. Additional functionalities include a built-in Web server for remote monitoring and configuration, simplifying system management and reducing downtime while providing a flexible and cost-effective solution to automation challenges.
-
Specifications
Technical Specifications
Technical specifications for AN-X2-AB-DHRIO
Brand Allen-Bradley / Rockwell Automation Series ControlLogix Manufacturer: Prosoft Technology Part Number AN-X2-AB-DHRIO Product Type: Communication module Description Network Connector Part Number: AN-X2-AB-DHRIO Baud Rate 57.6 to 230.4 kbaud Supported Protocols Ethernet I/P; Remote I/O (RIO); Data Highway Plus (DH+) Rack Number 0 to 76 octal No. of Ports One (1) 10/100 mbps Ethernet I/P; One (1) Remote I/O (RIO) / Data Highway Plus (DH+) Power Consumption 200 milliamps Power supply: 24 VDC Voltage 12 Volts DC Supported Ethernet devices ControlLogix; CompactLogix Current 100 milliamps Supported RIO / DH+ devices PLC, SLC 500, PanelView, Drives and Flex I/O Adapter modules Power Dissipation 2.4 Watts Mounting DIN Rail / Desktop RJ 45 Port Present No. of supported RIO modules 32 racks No. of supported drives Up to Four (4) Ethernet I/P drives No. of supported HMI Up to Eight (8) PanelView on the same network No. of supported Flex IO adapter No. of supported Flex IO adapter Operating Temp 32°F to 122°F (0 ºC to 50 ºC) Storage Temperature -40°F to 185°F (-40 ºC to 85 ºC) Dimensions 107 mm x 126 mm x 34 mm (4.18 in x 4.97 in x 1.33 in) not including connectors -
