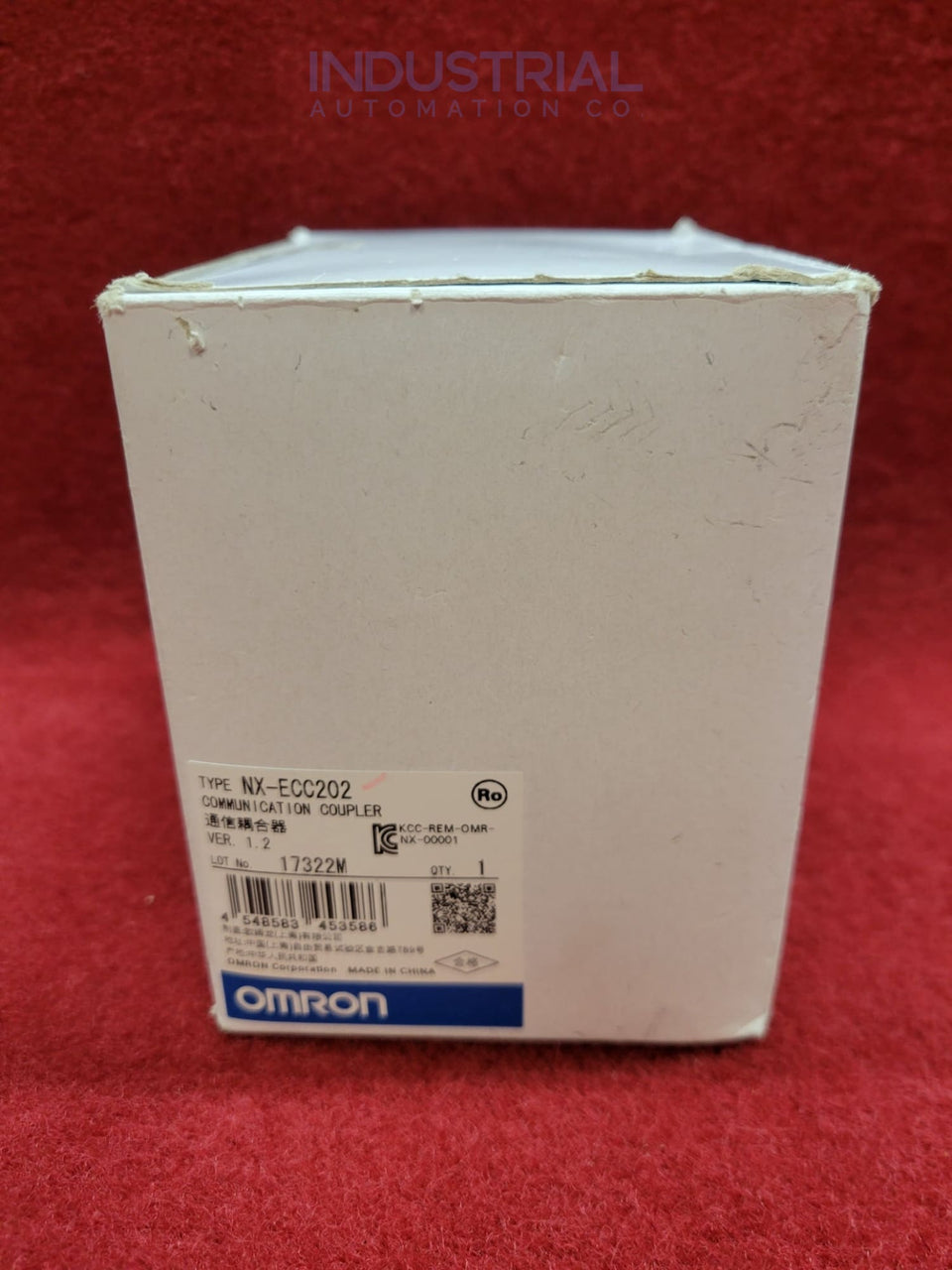

Omron NX-ECC202
SKU: NX-ECC202-NS
We have 1 in stock
Estimated delivery: September 8th - September 10th
Order for next-day shipment.
- Regular price
-
$290.00
- Sale price
- $290.00
New Surplus
$290
1 in stock
Ships today
Description
The Omron NX-ECC202 is an EtherCAT communications coupler unit for the NX-series modular I/O system. It connects a bank of NX I/O units to an EtherCAT master, presenting up to 63 attached units as a single network slave with fast, synchronized I/O refresh.
The coupler supplies the NX bus for its attached units and mounts on DIN rail, making it the head unit for distributed I/O stations in Sysmac machine control systems.
Technical Specifications
| Series | NX-series modular I/O |
| Unit type | EtherCAT coupler unit |
| Connectable NX units | 63 max |
| I/O data size | 1,024 bytes in / 1,024 bytes out max |
| Communication cycle | 250 to 4,000 us |
| Supply voltage | 24 VDC |
| I/O power feed | 10 A max |
| Power consumption | 1.45 W |
| Mounting | DIN rail |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $44/yr+3 yrs → 5 total $39/yr+5 yrs → 7 total $29/yrBEST VALUE+8 yrs → 10 total $22/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Omron NX-ECC202 is an EtherCAT communications coupler unit for the NX-series modular I/O system. It connects a bank of NX I/O units to an EtherCAT master, presenting up to 63 attached units as a single network slave with fast, synchronized I/O refresh.
The coupler supplies the NX bus for its attached units and mounts on DIN rail, making it the head unit for distributed I/O stations in Sysmac machine control systems.
Technical Specifications
Series NX-series modular I/O Unit type EtherCAT coupler unit Connectable NX units 63 max I/O data size 1,024 bytes in / 1,024 bytes out max Communication cycle 250 to 4,000 us Supply voltage 24 VDC I/O power feed 10 A max Power consumption 1.45 W Mounting DIN rail -
