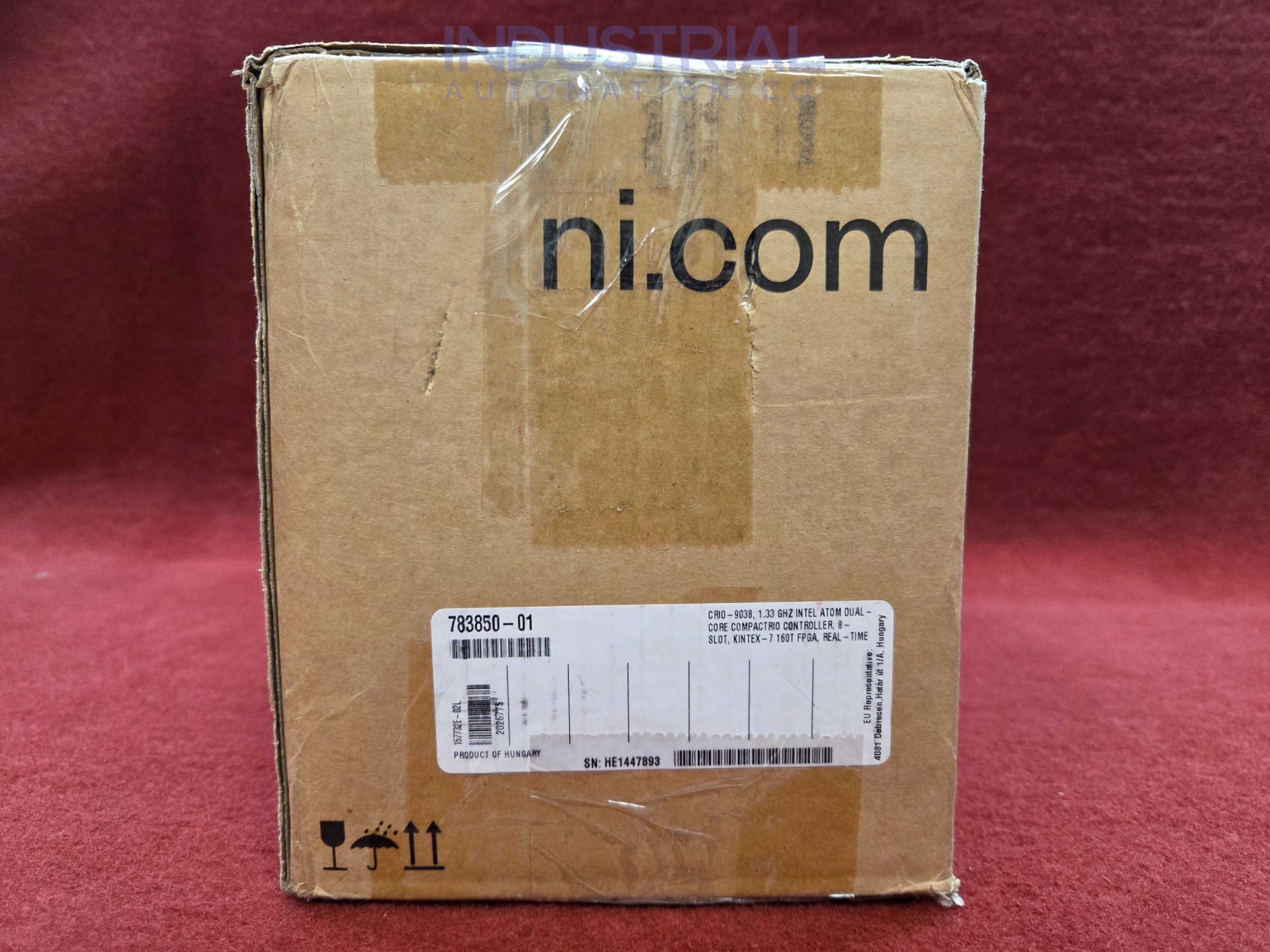

National Instruments 783850-01 CRIO-9038

The National Instruments 783850-01 CompactRIO Controller, part of the cRIO-9038 model series, is engineered for advanced control and monitoring in demanding environments. This fanless embedded controller is powered by a 1.33 GHz dual-core Intel Atom E3825 CPU, ensuring reliable performance with 2 GB of DRAM and 8 GB of solid-state storage. Its robust construction incorporates a Kintex-7 160T FPGA, providing substantial processing capabilities for real-time applications while operating under the NI Linux Real-Time OS.

Versatility is a key feature of the 783850-01, with multiple connectivity options including two RS-232 serial connections, two USB host ports, one USB device port, and two tri-speed RJ-45 Gigabit Ethernet connectors, facilitating integration with a variety of peripherals and communication devices. The device allows for network configuration through NI Measurement & Automation Explorer (MAX), with Ethernet ports preset to auto-configure IP addresses. Additionally, it includes a Mini DisplayPort for connecting a local human-machine interface (HMI), supporting direct interaction with the system at a maximum resolution of 2560 × 1600 at 60 Hz.

For enhanced data storage, the controller features an SD card slot compatible with SD and SDHC standards, supporting an additional 32 GB of removable storage. The power connector accommodates both primary and secondary power supplies, ensuring dependable operation across diverse industrial applications and a wider operating temperature range. Optimized for specific software needs, the 783850-01 is compatible with LabVIEW versions 2014 and newer, as well as the LabVIEW Real-Time Module and FPGA Module starting from version 2014. It also supports Eclipse version 2014 or later for C/C++ development, requiring NI CompactRIO and Drivers from August 2014 or later for optimal performance.
