LS Electric LSLV0004G100-4EOFN
SKU: LSLV0004G100-4EOFN-FS-3PL
We have 107 in stock
Estimated delivery: September 13th - September 15th
Order for next-day shipment.
- Regular price
-
$265.26
- Sale price
- $265.26
New
$265.26
107 in stock
Ships today
Description

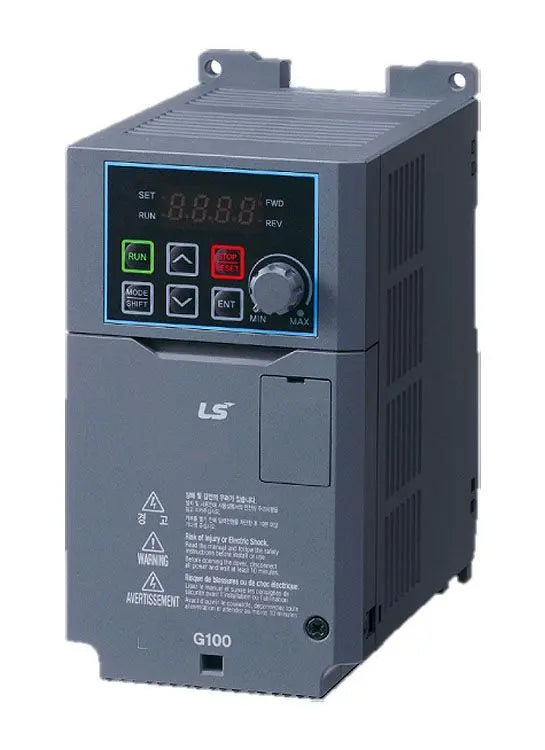

The LS Electric LSLV0004G100-4EOFN is a .5 hp general-purpose variable frequency drive from the G100 series, rated for 380-480 VAC three-phase input. The G100 is a compact IP20 machine drive with an integrated keypad and potentiometer, supporting both V/F and sensorless vector control with 150% / 60 s heavy-duty overload capacity.
The series is used across conveyors, mixers, machine tools, fans, pumps, and general OEM machinery. Built-in Modbus RTU (RS-485) communication, side-by-side mounting, and UL 61800-5-1 compliance make it a straightforward choice for panel builders.
Technical Specifications
| Manufacturer | LS Electric |
| Part Number | LSLV0004G100-4EOFN |
| Product Type | Variable Frequency Drive (VFD) |
| Series | G100 |
| Power Rating | .5 hp / 0.4 kW |
| Input Voltage | 380-480 VAC |
| Input Phase | Three-phase |
| Rated Output Current | 1.3 A |
| Output | Three-phase output to motor |
| Control Methods | V/F, sensorless vector |
| Overload Capacity | 150% for 60 s (heavy duty) |
| Keypad | Integrated keypad with potentiometer |
| EMC Filter | Built-in |
| Communications | Modbus RTU (RS-485) |
| Enclosure Rating | IP20 / UL Open Type |
| Standards | UL 61800-5-1 |
-
Buying Options
-
Description
The LS Electric LSLV0004G100-4EOFN is a .5 hp general-purpose variable frequency drive from the G100 series, rated for 380-480 VAC three-phase input. The G100 is a compact IP20 machine drive with an integrated keypad and potentiometer, supporting both V/F and sensorless vector control with 150% / 60 s heavy-duty overload capacity.
The series is used across conveyors, mixers, machine tools, fans, pumps, and general OEM machinery. Built-in Modbus RTU (RS-485) communication, side-by-side mounting, and UL 61800-5-1 compliance make it a straightforward choice for panel builders.
Technical Specifications
Manufacturer LS Electric Part Number LSLV0004G100-4EOFN Product Type Variable Frequency Drive (VFD) Series G100 Power Rating .5 hp / 0.4 kW Input Voltage 380-480 VAC Input Phase Three-phase Rated Output Current 1.3 A Output Three-phase output to motor Control Methods V/F, sensorless vector Overload Capacity 150% for 60 s (heavy duty) Keypad Integrated keypad with potentiometer EMC Filter Built-in Communications Modbus RTU (RS-485) Enclosure Rating IP20 / UL Open Type Standards UL 61800-5-1 -
Specifications
Technical Specifications
Product Specifications Manufacturer Part Number: 6041002100 Item Number: LSLV0004G100-4EOFN Manufacturer: LS Electric Product Series: G100 Series Family: LS Electric Drives, G100 Series Input Phase: Three-Phase Rated Horsepower (Constant Torque): 0.5 HP Rated Horsepower (Variable Torque): 1 HP Amps (Constant Torque Rating): 1.3 A Amps (Variable Torque Rating): 2 A Braking System Type: DJ Injection, Flux Closed-Loop Control: No AC Line Regenerative: No Operator Controls: Built-In Motor Control Method: Open Loop Vector (Sensorless Vector) Mounting: DIN Rail Input Voltage Range (AC): 380-480 VAC Net Weight: 0 lbs Gross Weight: 0 lbs -
