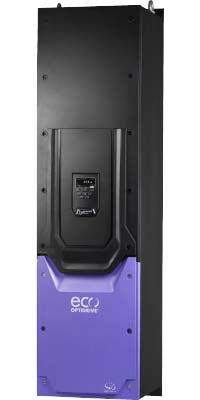

Invertek ODV-3-722480-3F1N-MN
SKU: ODV-3-722480-3F1N-MN
We have 8 in stock
Estimated delivery: August 28th - August 30th
Order for next-day shipment.
- Regular price
-
$11,277.50
- Sale price
- $11,277.50
New
$11,277.50
8 in stock
Ships today
Description
The Invertek ODV-3-722480-3F1N-MN is an Optidrive Eco variable frequency drive rated 75 kW (100 HP) with a continuous output current of 248 A. It is a frame Size 7 unit in an IP55 enclosure suitable for wall mounting in dusty or damp indoor environments without a separate cabinet. The Optidrive Eco (ODV-3) series is designed specifically for fan, pump, and HVAC applications, with energy-optimized motor control, a built-in PID controller, and dedicated pump and fan functions such as cascade/duty-assist control, stir/anti-jam cycles, and fire mode.
The drive accepts three-phase 200-240 V input and delivers three-phase 200-240 V output to standard induction and permanent magnet motors. Modbus RTU and BACnet MS/TP communications are included as standard, and a text-based TFT display simplifies commissioning. Typical applications include air handling units, cooling towers, booster pump sets, and general building services and industrial fan/pump duty.
Technical Specifications
| Manufacturer | Invertek Drives |
| Series | Optidrive Eco (ODV-3) |
| Part Number | ODV-3-722480-3F1N-MN |
| Power Rating | 75 kW (100 HP) |
| Rated Output Current | 248 A |
| Input Voltage | 200-240 V AC, three phase |
| Output Voltage | 200-240 V AC, three phase |
| Frame Size | Size 7 |
| Enclosure Rating | IP55 |
| Communications | Modbus RTU and BACnet MS/TP (standard) |
| Control Features | PID control, pump cascade/duty assist, fire mode, energy optimization |
| Typical Applications | Fans, pumps, HVAC and building services |
-
Buying Options
-
Description
The Invertek ODV-3-722480-3F1N-MN is an Optidrive Eco variable frequency drive rated 75 kW (100 HP) with a continuous output current of 248 A. It is a frame Size 7 unit in an IP55 enclosure suitable for wall mounting in dusty or damp indoor environments without a separate cabinet. The Optidrive Eco (ODV-3) series is designed specifically for fan, pump, and HVAC applications, with energy-optimized motor control, a built-in PID controller, and dedicated pump and fan functions such as cascade/duty-assist control, stir/anti-jam cycles, and fire mode.
The drive accepts three-phase 200-240 V input and delivers three-phase 200-240 V output to standard induction and permanent magnet motors. Modbus RTU and BACnet MS/TP communications are included as standard, and a text-based TFT display simplifies commissioning. Typical applications include air handling units, cooling towers, booster pump sets, and general building services and industrial fan/pump duty.
Technical Specifications
Manufacturer Invertek Drives Series Optidrive Eco (ODV-3) Part Number ODV-3-722480-3F1N-MN Power Rating 75 kW (100 HP) Rated Output Current 248 A Input Voltage 200-240 V AC, three phase Output Voltage 200-240 V AC, three phase Frame Size Size 7 Enclosure Rating IP55 Communications Modbus RTU and BACnet MS/TP (standard) Control Features PID control, pump cascade/duty assist, fire mode, energy optimization Typical Applications Fans, pumps, HVAC and building services -
