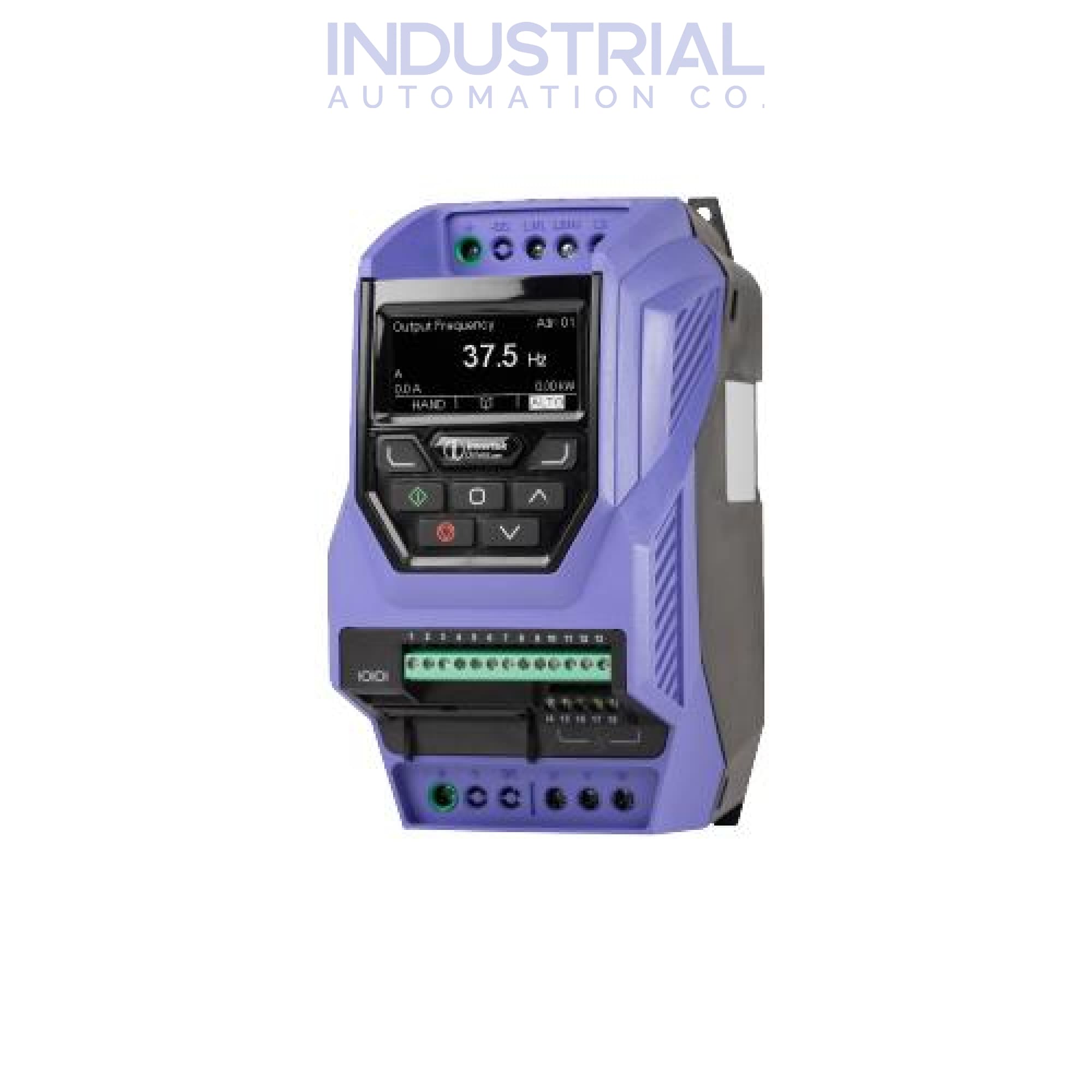

Invertek ODV-3-220043-1F12-MN
SKU: ODV-3-220043-1F12-MN
We have 3 in stock
Estimated delivery: August 30th - September 1st
Order for next-day shipment.
- Regular price
-
$595.50
- Sale price
- $595.50
New
$595.50
3 in stock
Ships today
Description
The Invertek ODV-3-220043-1F12-MN is an Optidrive Eco variable frequency drive rated kW ( HP, 4.3 A output) for three phase 200-240 V motors. The Optidrive Eco family is purpose designed for HVAC and pumping duty, with dedicated fan and pump control functions and energy optimization for variable torque loads.
Typical applications include supply and exhaust fans, air handling units, cooling towers, circulation and booster pumps. Built-in functions include PID control, fire mode, pump stir/clean and cascade duty-assist control, real time clock scheduling on keypad models, and native BACnet MS/TP and Modbus RTU communications for building management system integration.
Technical Specifications
| Manufacturer | Invertek Drives |
| Series | Optidrive Eco |
| Part Number | ODV-3-220043-1F12-MN |
| Power Rating | 0.75 kW (1 HP) |
| Rated Output Current | 4.3 A |
| Input Voltage | Single Phase, 200-240 V |
| Output Voltage | Three Phase, 200-240 V |
| Frame Size | Size 2 |
| Enclosure Rating | IP20 |
| Overload Capacity | 110% for 60 s (variable torque duty) |
| Control Method | V/F with energy optimizer; sensorless vector |
| Output Frequency | 0 to 500 Hz |
| Communications | Modbus RTU and BACnet MS/TP (built in) |
-
Buying Options
-
Description
The Invertek ODV-3-220043-1F12-MN is an Optidrive Eco variable frequency drive rated kW ( HP, 4.3 A output) for three phase 200-240 V motors. The Optidrive Eco family is purpose designed for HVAC and pumping duty, with dedicated fan and pump control functions and energy optimization for variable torque loads.
Typical applications include supply and exhaust fans, air handling units, cooling towers, circulation and booster pumps. Built-in functions include PID control, fire mode, pump stir/clean and cascade duty-assist control, real time clock scheduling on keypad models, and native BACnet MS/TP and Modbus RTU communications for building management system integration.
Technical Specifications
Manufacturer Invertek Drives Series Optidrive Eco Part Number ODV-3-220043-1F12-MN Power Rating 0.75 kW (1 HP) Rated Output Current 4.3 A Input Voltage Single Phase, 200-240 V Output Voltage Three Phase, 200-240 V Frame Size Size 2 Enclosure Rating IP20 Overload Capacity 110% for 60 s (variable torque duty) Control Method V/F with energy optimizer; sensorless vector Output Frequency 0 to 500 Hz Communications Modbus RTU and BACnet MS/TP (built in) -
