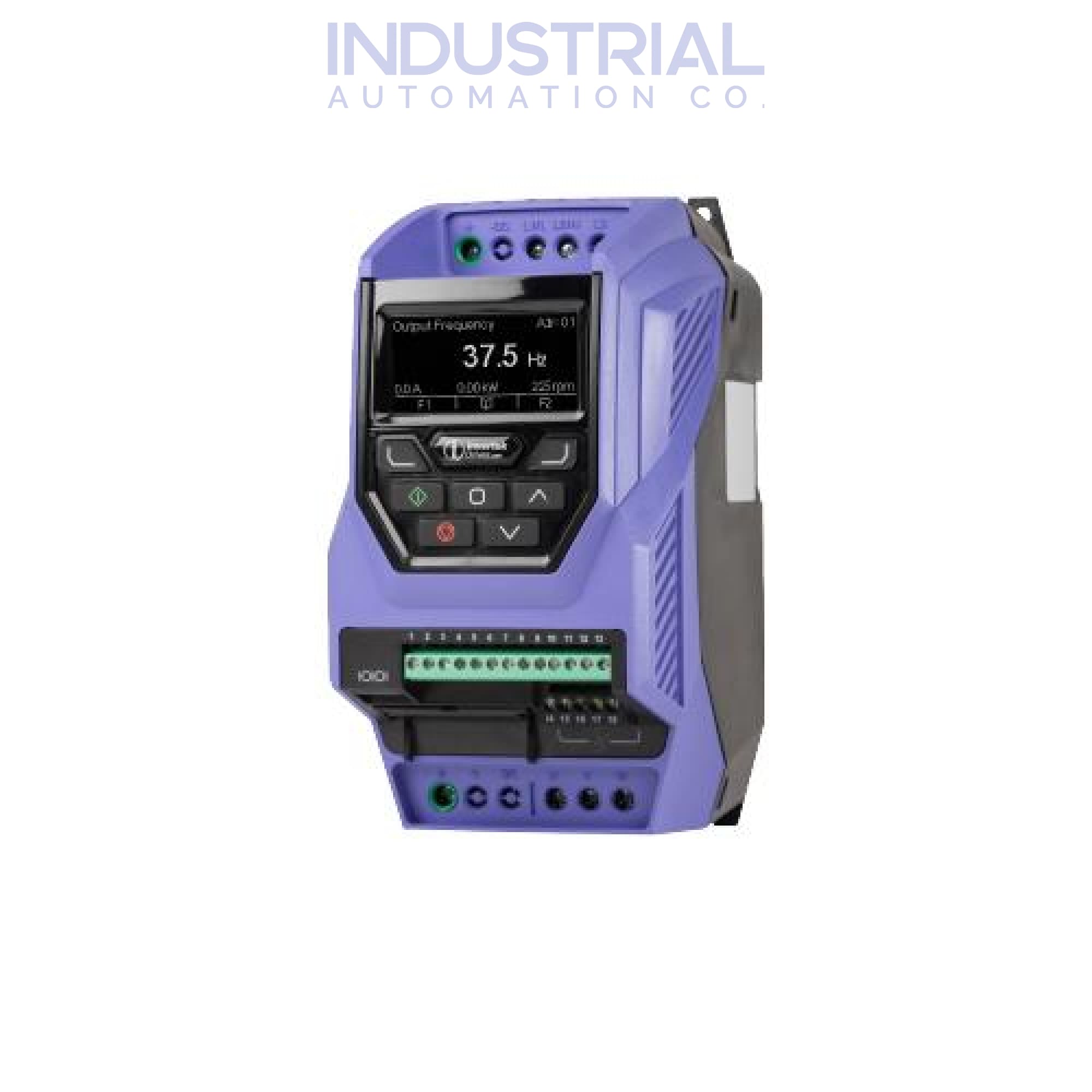

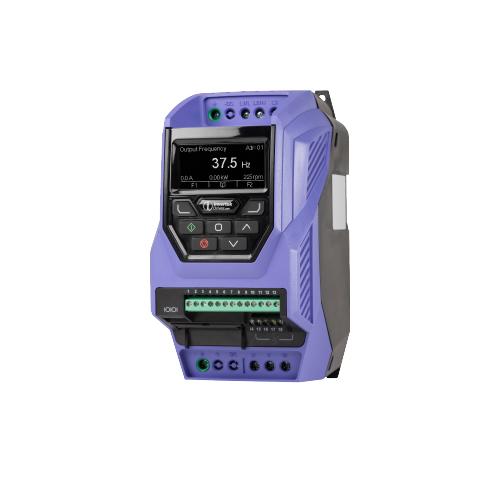

Invertek ODP-2-24020-3HF42-MN
SKU: ODP-2-24020-3HF42-MN
We have 20 in stock
Estimated delivery: August 27th - August 29th
Order for next-day shipment.
- Regular price
-
$668.00
- Sale price
- $668.00
New
$668
20 in stock
Ships today
Description
The Invertek ODP-2-24020-3HF42-MN is an Optidrive P2 high performance variable frequency drive rated 2 HP with a continuous output current of 4.1 A. It accepts three phase 380-480 V input and delivers a three phase 380-480 V output for standard AC induction and permanent magnet motors. This is a frame Size 2 unit in an IP20 open chassis for panel mounting.
The Optidrive P2 family provides sensorless vector control of induction, permanent magnet, brushless DC and synchronous reluctance motors, with 200% starting torque capability, an integrated brake transistor, and a text based OLED/TFT keypad display. Modbus RTU and CANopen communications are built in, with optional modules for other industrial networks. Typical applications include conveyors, mixers, machine tools, pumps, fans and general industrial machinery.
Technical Specifications
| Manufacturer | Invertek Drives |
| Series | Optidrive P2 (ODP-2) |
| Part Number | ODP-2-24020-3HF42-MN |
| Power Rating | 2 HP |
| Rated Output Current | 4.1 A |
| Input Voltage | Three phase, 380-480 V AC |
| Output Voltage | Three phase, 380-480 V AC |
| Frame Size | Size 2 |
| Enclosure Rating | IP20 |
| EMC Filter | Integrated EMC filter |
| Control Method | Sensorless vector; V/F; PM, BLDC and SynRM motor control |
| Braking | Integrated brake transistor (chopper) |
| Communications | Modbus RTU and CANopen built in; optional fieldbus modules |
| Keypad | Text based multi-line display with parameter navigation |
-
Buying Options
-
Description
The Invertek ODP-2-24020-3HF42-MN is an Optidrive P2 high performance variable frequency drive rated 2 HP with a continuous output current of 4.1 A. It accepts three phase 380-480 V input and delivers a three phase 380-480 V output for standard AC induction and permanent magnet motors. This is a frame Size 2 unit in an IP20 open chassis for panel mounting.
The Optidrive P2 family provides sensorless vector control of induction, permanent magnet, brushless DC and synchronous reluctance motors, with 200% starting torque capability, an integrated brake transistor, and a text based OLED/TFT keypad display. Modbus RTU and CANopen communications are built in, with optional modules for other industrial networks. Typical applications include conveyors, mixers, machine tools, pumps, fans and general industrial machinery.
Technical Specifications
Manufacturer Invertek Drives Series Optidrive P2 (ODP-2) Part Number ODP-2-24020-3HF42-MN Power Rating 2 HP Rated Output Current 4.1 A Input Voltage Three phase, 380-480 V AC Output Voltage Three phase, 380-480 V AC Frame Size Size 2 Enclosure Rating IP20 EMC Filter Integrated EMC filter Control Method Sensorless vector; V/F; PM, BLDC and SynRM motor control Braking Integrated brake transistor (chopper) Communications Modbus RTU and CANopen built in; optional fieldbus modules Keypad Text based multi-line display with parameter navigation -
