GE FANUC IC694MDL240

Part Number: IC694MDL240

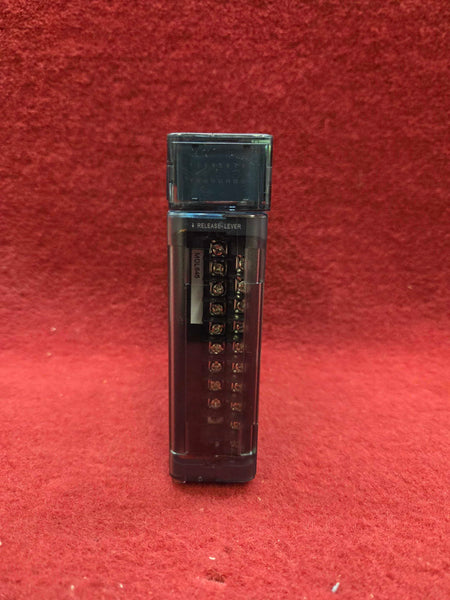

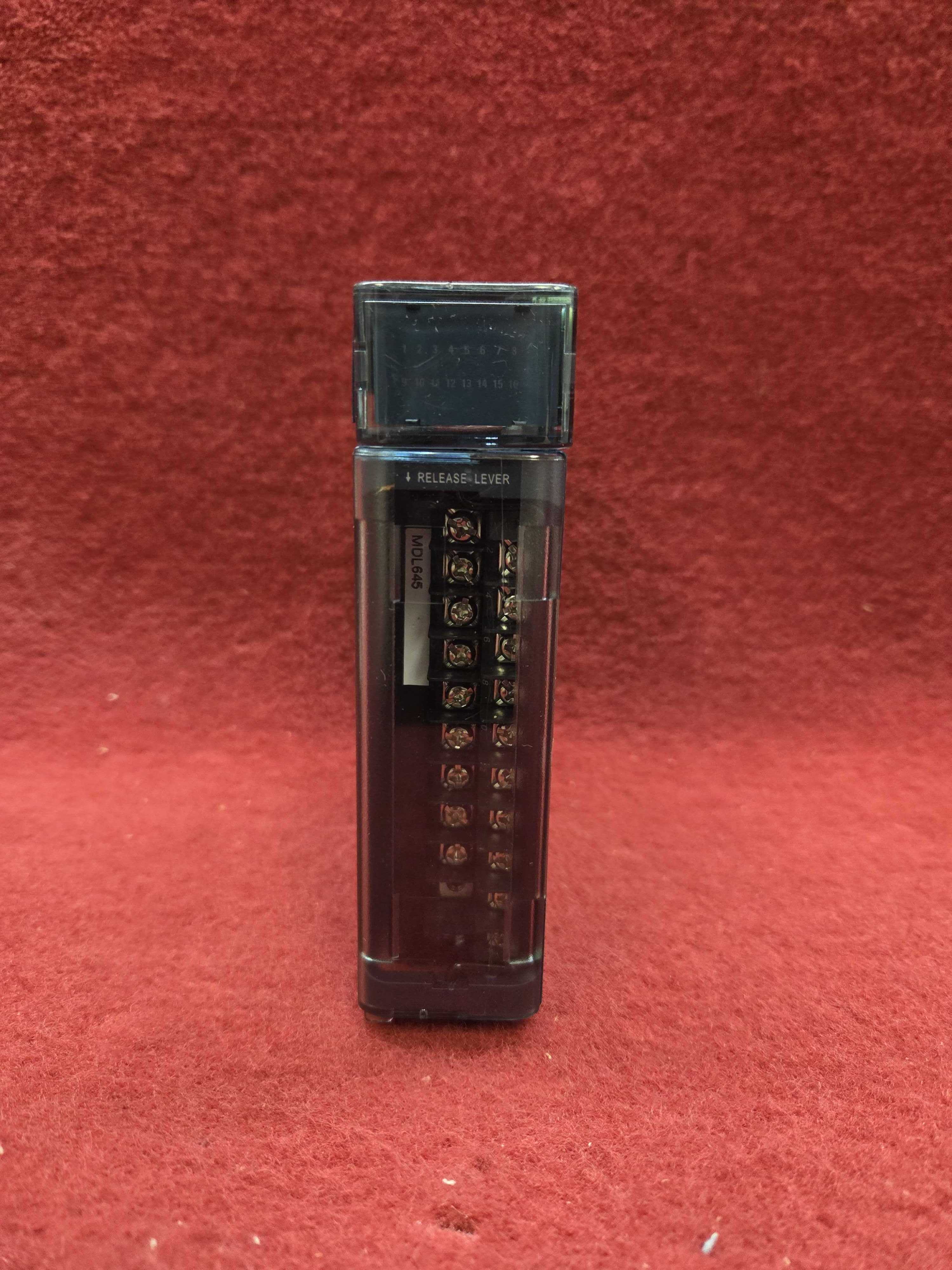

The IC694MDL240 is a high-performance 120 Volt AC Input Module designed for use within the GE Fanuc RX3i PACSystems series. This module features 16 input points that share a single common power input terminal, offering a compact and efficient solution for industrial applications. The input circuits are configured for resistor/capacitor or reactive inputs, enabling compatibility with a broad range of input devices such as pushbuttons, limit switches, and electronic proximity switches. It is important to note that the maximum number of simultaneous inputs is influenced by ambient temperature, as detailed in the accompanying manual.

Each input point, when energized, reflects a logic 1 in the input status table (%I). The module requires a user-supplied AC power source; DC power is not supported. With the inclusion of 16 green LEDs, users can easily monitor the ON/OFF status of each input point. The IC694MDL240 is marked with red warning bands to indicate its high-voltage nature. Installation is straightforward, as it can be placed in any available I/O slot within an RX3i system.

Technical Specifications include a rated voltage of 120 Volts AC, an input voltage range from 0 to 132 Volts AC, and operational frequency of 50 to 60 Hertz. The module consumes 90 mA from the 5 V bus and provides isolation of 250V AC continuous from field to backplane, along with 1500V AC for one minute from field to frame ground.
