GE FANUC IC693CPU364

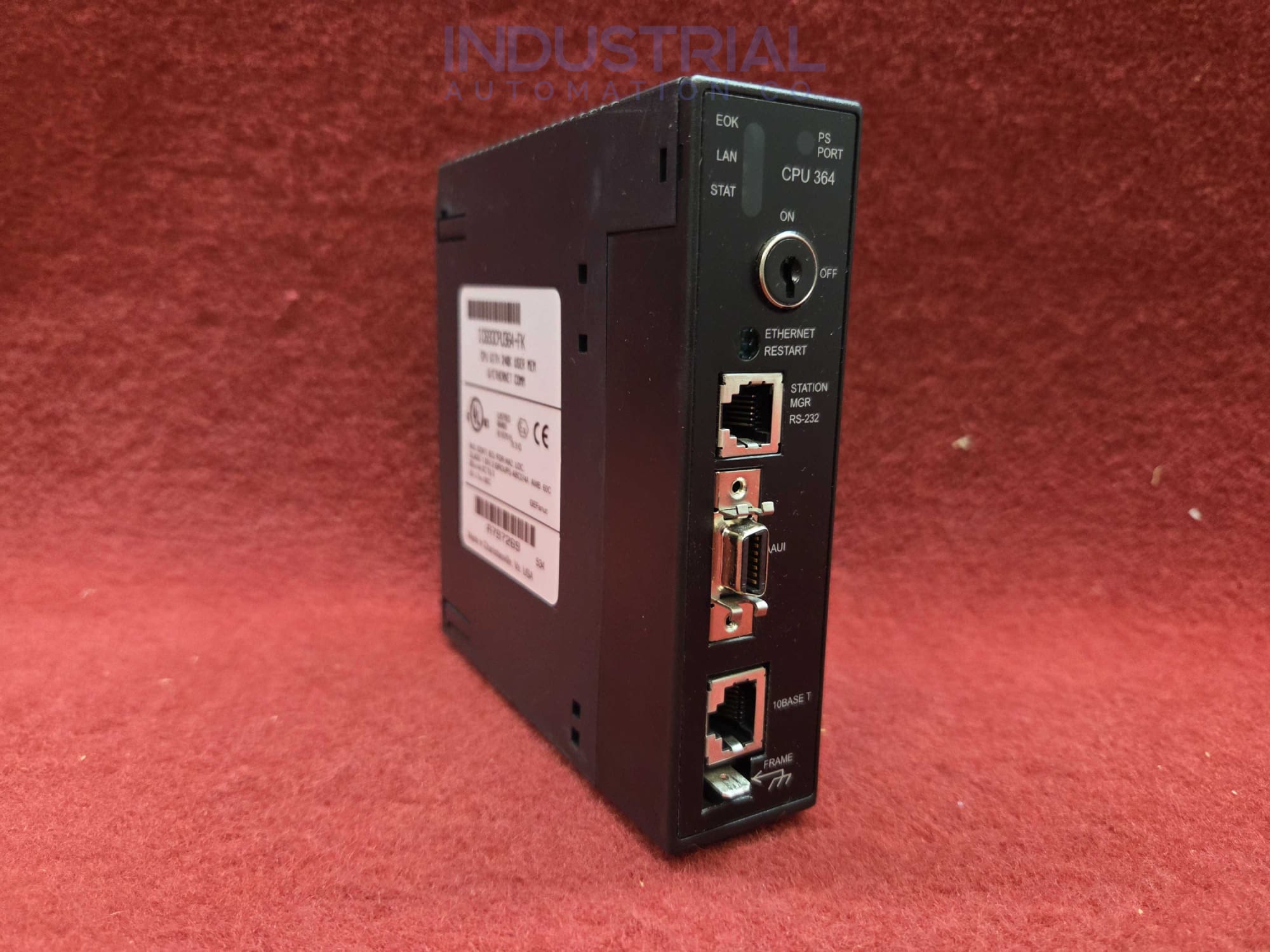

The IC693CPU364 is a single-slot Central Processing Unit (CPU) from the GE Fanuc Series 90-30, designed for flexibility and efficiency in industrial automation applications. This unit features an integrated Ethernet interface, allowing for direct communication over Ethernet Global Data (EGD) without the need for an additional Ethernet module, thereby saving PLC slots and enhancing communication speed. With a built-in 10BASE-T port and a single RS-232 serial port, the IC693CPU364 facilitates easy connectivity to terminals and terminal emulators. The CPU operates on an 80386EX processor at a speed of 25 MHz and supports up to 240 KB of user program memory, configurable from 128 to 32,640 words according to specific memory settings. The standard configuration allows for 2,048 discrete input and output points, with firmware-based floating-point math capability included.

The IC693CPU364 operates reliably within an ambient temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and consumes a maximum load of 1.1 A from a +5 VDC power supply. Its flash memory architecture enables easy firmware updates via the serial port, ensuring that the device can be kept current with the latest features and enhancements. This CPU is equipped with four LED indicators for status monitoring, an Ethernet Restart button, and a typical scan rate of 0.22 milliseconds per 1K of logic. With integrated features such as a battery-backed clock, over 2,000 timers/counters, and support for multiple memory types, the IC693CPU364 serves as a robust and efficient core for GE Fanuc's Series 90-30 PLC systems.
