FANUC A06B-6114-H209
SKU: A06B-6114-H209-FS
We have 1 in stock
Estimated delivery: August 29th - August 31st
Order for next-day shipment.
- Regular price
-
$4,189.00
- Sale price
- $4,189.00
New
$4,189
1 in stock
Ships today
IAC Certified Refurbished
Available
Request a quote
Description

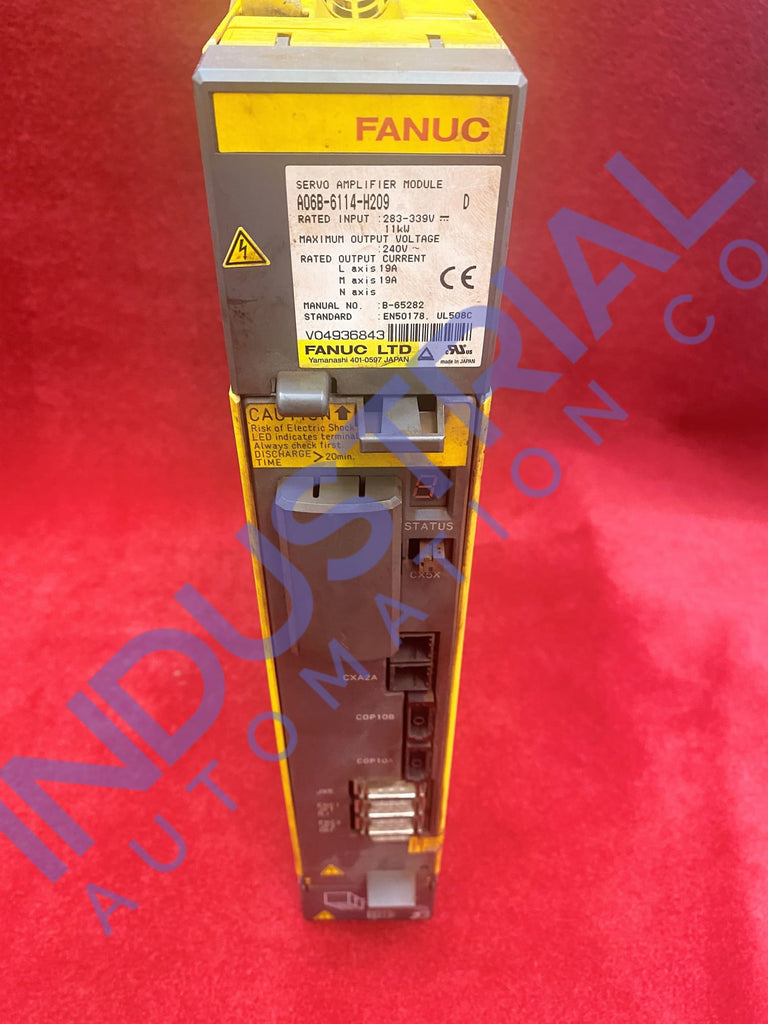

The FANUC A06B-6114-H209 is a Alpha i series servo amplifier module (SVM), model SVM2-80/80i. It is part of FANUC's modular Alpha i drive system, where it runs from the common DC link supplied by the PSM power supply module and drives Alpha i series AC servo motors on CNC machine tool and robot axes.
With two 80 amp class axes in one housing, it drives a pair of larger Alpha i servo motors on machine tool feed axes. This part number has been discontinued by the manufacturer and is supplied from existing distributor stock as a direct replacement for units already in service.
Technical Specifications
| Part Number | A06B-6114-H209 |
| Manufacturer | FANUC |
| Series | FANUC Alpha i servo amplifier module |
| Model | SVM2-80/80i |
| Axes | 2 |
| Interface | FSSB (FANUC Serial Servo Bus, fiber optic) |
| DC link input | 283-339 VDC |
| Maximum output voltage | 230 VAC |
| Motor type | Alpha i series AC servo motors |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $628/yr+3 yrs → 5 total $559/yr+5 yrs → 7 total $419/yrBEST VALUE+8 yrs → 10 total $314/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The FANUC A06B-6114-H209 is a Alpha i series servo amplifier module (SVM), model SVM2-80/80i. It is part of FANUC's modular Alpha i drive system, where it runs from the common DC link supplied by the PSM power supply module and drives Alpha i series AC servo motors on CNC machine tool and robot axes.
With two 80 amp class axes in one housing, it drives a pair of larger Alpha i servo motors on machine tool feed axes. This part number has been discontinued by the manufacturer and is supplied from existing distributor stock as a direct replacement for units already in service.
Technical Specifications
Part Number A06B-6114-H209 Manufacturer FANUC Series FANUC Alpha i servo amplifier module Model SVM2-80/80i Axes 2 Interface FSSB (FANUC Serial Servo Bus, fiber optic) DC link input 283-339 VDC Maximum output voltage 230 VAC Motor type Alpha i series AC servo motors -
