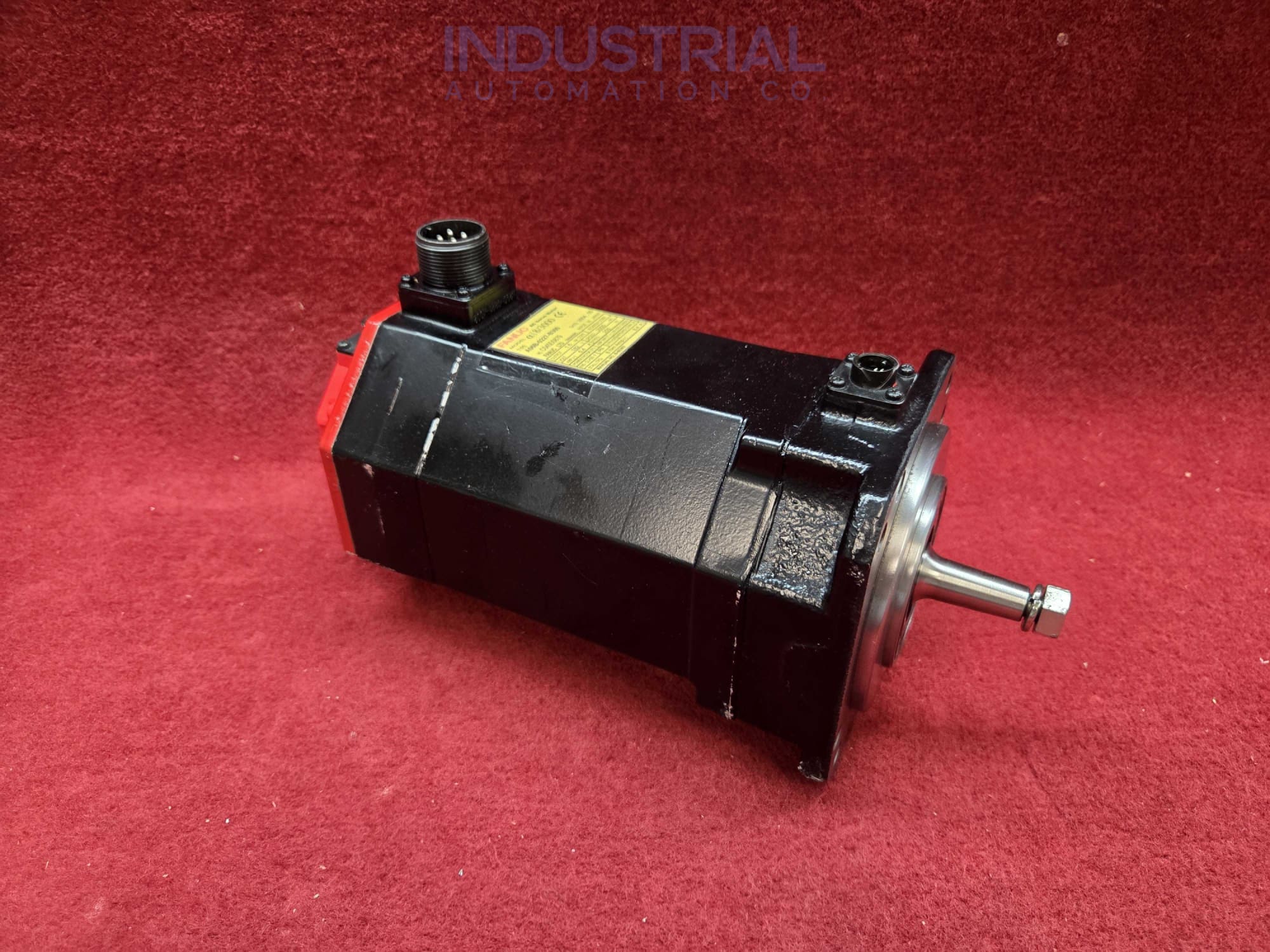

FANUC A06B-0227-B300

This AC servo motor A06B-0227-B300 is an ideal choice for powering the feed axes of machine tools, providing reliable and efficient operation. The high-resolution pulse coder, standard in all motors, allows for precise positioning capability.

This motor A06B-0227-B300 is high-performing, with an insulation class of F and a power factor of 97%. To ensure its durability, it has a shaft outfitted witan h oil seal to keep external fluids from entering the interior.

Please provide a 3-phase power supply that ranges from 200 to 230 volts at 50/60 Hz for optimal operation. Furthermore, monitoring the current levels of the motor is necessary to prevent it from overheating due to excessive heating.

The motor A06B-0227-B300 boasts impressive performance, providing 1.6 kW of power with just 5.4 A consumed - a significantly lower current than most motors on the market today. Additionally, this model has been designed for superior acceleration thanks to its reduced rotor inertia without compromising peak torque output.

With an impressive 8 Nm of torque, this model performs better while requiring minimal electrical current. FANUC's unique stator seal and waterproof connectors further optimize waterproofing, effectively guarding against any coolant penetration into the powerful motor.

The A06B-0227-B300 model offers superior dust and liquid protection, achieving the highest IP65 rating. The first number indicates resistance to particulate matter, while the second speaks for its ability to withstand liquids.

The refined magnetic pole shape of the motor delivers a remarkable performance, enabling it to rotate at 3000 RPM with 200 Hz frequency and offering an incredibly smooth rotation.

The motor A06B-0227-B300 can be safely operated in higher altitudes up to 1,000 meters above sea level. For every 100 m beyond the MAX altitude of 1000 m, an additional degree Celsius reduction in ambient temperature is necessary for optimal performance.

To ensure optimal functioning, the motor A06B-0227-B300 should be operated in temperatures between -10 and 40°C. Exceeding this range increases output power beyond acceptable limits, leading to substandard performance due to excessive heat buildup in the device.

The A06B-0227-B300 motor's performance can be significantly disrupted by even minor jolts or scratches, so it is essential to take the utmost care when handling one. To prevent damage and maintain proper functioning, it is important not to lift a motor by its plastic part, winding mechanism, or power cable.

To ensure the A06B-0227-B300 motor runs optimally, avoid connecting it directly to a commercial power source. Burned windings can occur due to this action; instead, use an amplifier with the proper voltage for supplying energy to the motor.

Before use, assessing a motor's winding and insulation resistances is essential for optimal performance. You must perform these tests, especially if stored over an extended duration, as prolonged storage can lead to deterioration in condition.

The motor A06B-0227-B300 treated with care will last longer - make sure to place it in a dry environment at room temperature. Humidity and extreme temperatures can cause the components inside a motor to deteriorate, so when storing the device, keep its shaft horizontally and keep the terminal box on top for extra precaution. Also, remember to order the FANUC AC servo motor user manual in your local language.
