Encoder Products Co. 15H-01SA-0010NV1QHV-F00-T2 Rotary Encoder
SKU: 15H01SA-000021
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description

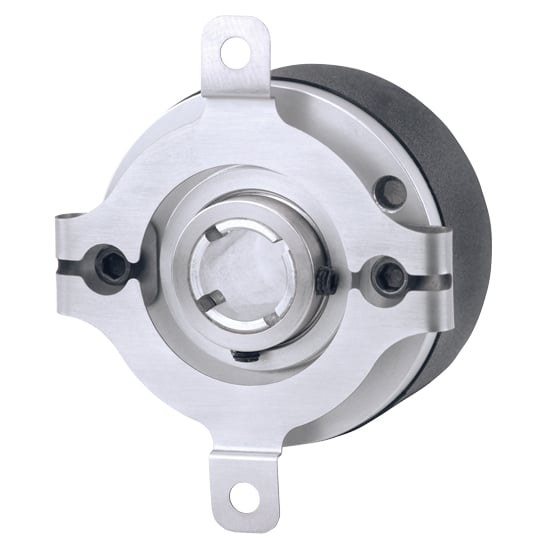

A low-profile 1.5 in (38 mm) hollow-bore encoder that slips straight onto a motor shaft. Its integral bearing set and flexible mount absorb the axial misalignment and radial runout that give kit and modular encoders trouble, so it installs fast and stays accurate. This unit is configured with a 1/4 in (0.250") bore on the 1.812 in two-hole flex mount, resolving 10 cycles per revolution, and delivering quadrature A & B on a differential line driver (RS422-compatible) output. It runs on 5–28 V DC and terminates in a cable gland with a 1 ft 6 in cable. It is sealed to IP50, rated for -20 to 100 °C. Typical applications include servo and brushless motor feedback, packaging machinery, printing, and material handling.
Manufactured by Encoder Products Co. (EPC). This unit is supplied to the exact configuration encoded in part number 15H-01SA-0010NV1QHV-F00-T2.
Technical Specifications
| Part Number | 15H-01SA-0010NV1QHV-F00-T2 |
| Product Type | Blind Hollow-Bore Rotary Encoder |
| Series | Model 15H Accu-Coder |
| Bore / Shaft / Wheel | 1/4 in (0.250") |
| Resolution (CPR) | 10 |
| Output | differential line driver (RS422-compatible) |
| Channels | quadrature A & B |
| Input Voltage | 5–28 V DC |
| Mounting | 1.812 in two-hole flex |
| Connector | cable gland |
| Cable Length | 1 ft 6 in |
| Sealing / IP Rating | IP50 |
| Operating Temperature | -20 to 100 °C |
| Frequency Response | 200 kHz (Standard) |
| Certification | Standard (no CE mark) |
-
