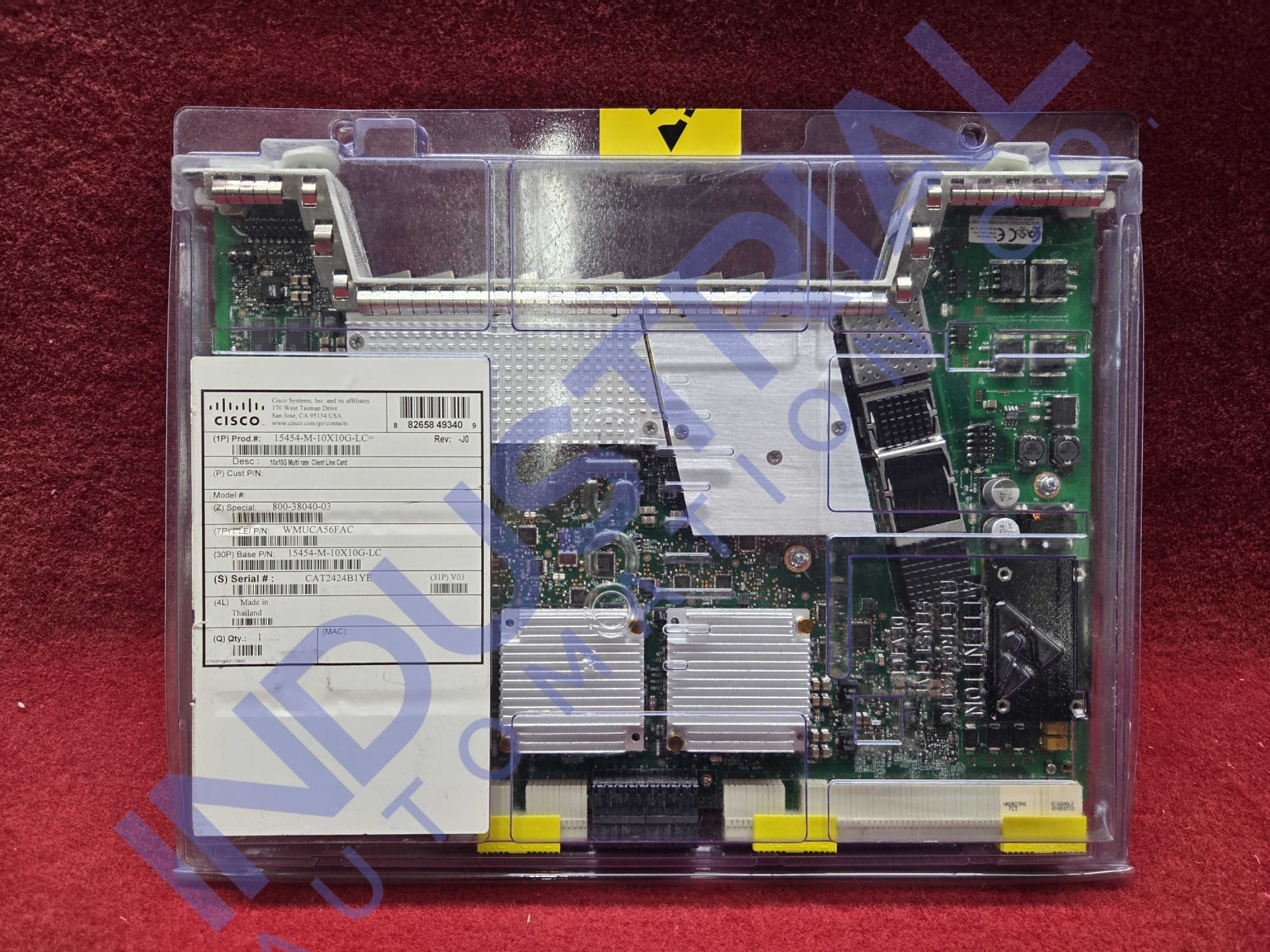

Cisco 15454-M-10X10G-LC
SKU: 15454-M-10X10G-LC-NS
We have 3 in stock
Estimated delivery: June 9th - June 11th
Order for next-day shipment.
- Regular price
-
$1,990.00
- Sale price
- $1,990.00
New Surplus
$1,990
3 in stock
Ships today
Description
The Cisco 15454-M-10X10G-LC is a powerhouse line card designed to streamline optical transport networks. Acting as a high-density aggregator, it compacts ten separate 10-Gigabit Ethernet connections into a single hardware slot, delivering 100 Gbps of total throughput.
Perfect for space-constrained metro environments, this card bridges the gap between local data and long-haul fiber. It utilizes Optical Transport Network (OTN) technology to wrap data in protective digital envelopes (G.709), ensuring error-free transmission over long distances. With support for flexible SFP+ optics and advanced Forward Error Correction, it maximizes bandwidth efficiency while minimizing physical footprint.
-
Buying Options
-
Description
The Cisco 15454-M-10X10G-LC is a powerhouse line card designed to streamline optical transport networks. Acting as a high-density aggregator, it compacts ten separate 10-Gigabit Ethernet connections into a single hardware slot, delivering 100 Gbps of total throughput.
Perfect for space-constrained metro environments, this card bridges the gap between local data and long-haul fiber. It utilizes Optical Transport Network (OTN) technology to wrap data in protective digital envelopes (G.709), ensuring error-free transmission over long distances. With support for flexible SFP+ optics and advanced Forward Error Correction, it maximizes bandwidth efficiency while minimizing physical footprint.
-
Specifications
Cisco 15454-M-10X10G-LC Report Cisco 15454-M-10X10G-LC: Deep Dive
A comprehensive look at the "10-Lane Superhighway" of the optical world. This line card integrates 100 Gigabits of capacity into a single slot, bridging local networks with high-speed metro fiber rings using OTN technology.
Hardware Layout
The 15454-M-10X10G-LC is a high-density line card designed to maximize space efficiency. Instead of requiring 10 separate physical cards for 10 connections, it condenses them into one vertical unit.
- ✓ 10 SFP+ Ports: Each slot accepts hot-swappable optics (SR, LR, ER, ZR).
- ✓ Status LEDs: Individual indicators for Link Status (Green/Amber/Red).
- ✓ Dual Latch System: Secure locking mechanism for chassis vibration protection.
Cisco10X10G-LCP1P2P3P4P5P6P7P8P9P10Data Flow Architecture
The card acts as a translation layer. It takes standard data signals, wraps them in a digital protective layer (OTN/G.709), and transmits them over optical fibers.
💻 Client SideInput Source
Traffic enters via 10G Ethernet (LAN PHY or WAN PHY). This comes from routers, switches, or storage arrays.
➔🎛️ ProcessingThe Card (10x10G)
The card encapsulates frames into OTU2/OTU2e containers. It applies FEC (Forward Error Correction) to fix transmission errors on the fly.
🌐 Network SideOutput
Processed signals connect to the chassis backplane and travel to the DWDM Optical Ring, capable of spanning hundreds of kilometers.
Performance Data
Protocol Usage Distribution
10GE LAN PHY 40%OTU2 (Standard G.709) 25%10GE WAN PHY 20%OTU2e (Overclocked) 15%Total Capacity by Chassis Type
200GM2600GM61500GM15Graph shows max throughput when fully populated with 10X10G cards.
Technical Specifications
Feature Specification Part Number 15454-M-10X10G-LC Port Density 10 Ports per card (SFP+ based) Total Throughput 100 Gbps (Line Rate) Forward Error Correction Standard GFEC, EFEC, High-Gain FEC Supported Optics SFP+ SR (Short), LR (Long), ER (Extended), ZR (80km), DWDM, CWDM Power Consumption ~75 Watts (Typical) -
