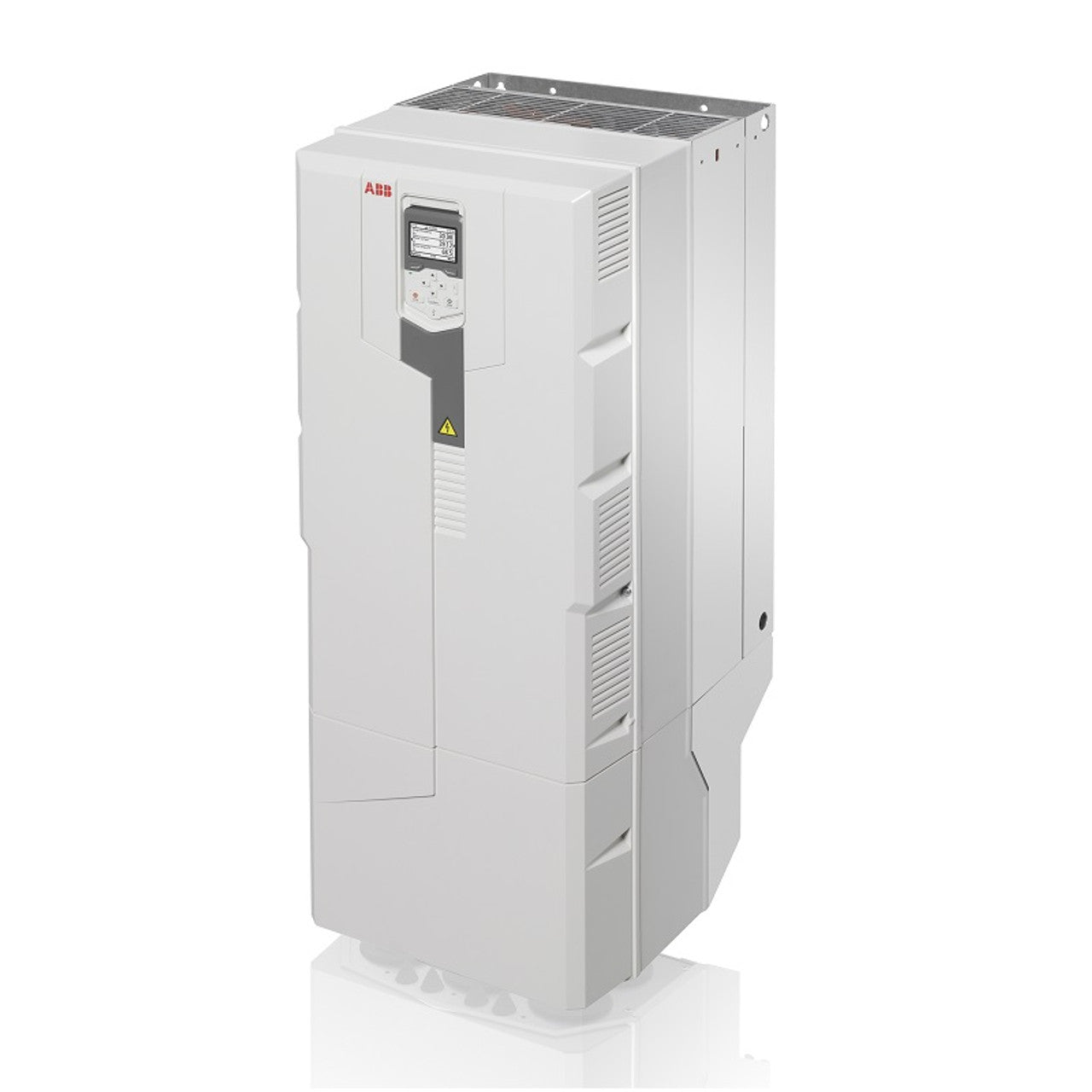

ABB ACS580-01-302A-4

The ACS580-01-302A-4 is a reliable wall-mounted drive, often referred to as a variable frequency drive (VFD), designed to facilitate efficient operations in various industries. This section provides a detailed overview of its features and specifications, emphasizing its readiness for various applications, robust design, and adherence to international standards.

The ACS580-01-302A-4 wall-mounted drive is designed to integrate seamlessly into various industries, offering plug-in readiness for a wide range of applications. It features a robust design that can withstand diverse environments and offers customizable enclosure options to meet specific operational needs. Moreover, it complies with international safety and environmental standards, ensuring a reliable and responsible choice for industrial operations.

This industrial drive is ready to manage various applications, including compressors, conveyors, pumps, and mixers. It is versatile, accommodating variable and constant torque operations, and is suitable for different motor sizes, making it a flexible choice for numerous situations.

The ACS580-01-302A-4 drive offers a high output current rating and a built-in EMC filter for reliable operation in environments with significant electromagnetic interference. It supports dynamic and flux braking, enhancing motor control. The drive operates efficiently in a voltage range of 380 to 500 VAC, utilizing an open-loop (sensorless vector) system for precise and efficient control over motors in various industrial settings. Speed control accuracy is impressive, with static accuracy at 20% of the nominal motor slip and dynamic precision at 1% seconds with 100% torque step.

Constructed to endure diverse environments, the drive showcases a rugged design, ensuring longevity and robust performance. It is housed in an IP21-rated enclosure, offering protection from dust and moisture, making it a versatile choice for different industrial environments. The drive can be safely shipped and stored in a wide range of environments due to its impressive temperature range of -40 to +70 °C. During operation, it is designed to operate in an area with temperatures ranging from -15 to +50 °C. The altitude range for the ACS580-01-302A-4 is from 0 to 1,000 m without derating and from 1,000 to 4,000 m with derating of 1%/100 m. The relative humidity range is 5 to 95%, with no condensation allowed.

The ACS580 series facilitates comprehensive management of your plant operations, enhancing efficiency and productivity through advanced control algorithms that optimize motor performance while minimizing energy consumption.

The drive comes standard in an IP21 enclosure, with options for IP55 and flange mounting units, allowing customization to meet specific operational requirements.

The ACS580-01-302A-4 complies with several international standards, including ISO 9001 and ISO 14001, demonstrating its commitment to quality and environmental sustainability. It adheres to RoHS and WEEE directives, ensuring a safe and environmentally responsible product, aligning with the necessary compliance and standards for industrial equipment.
