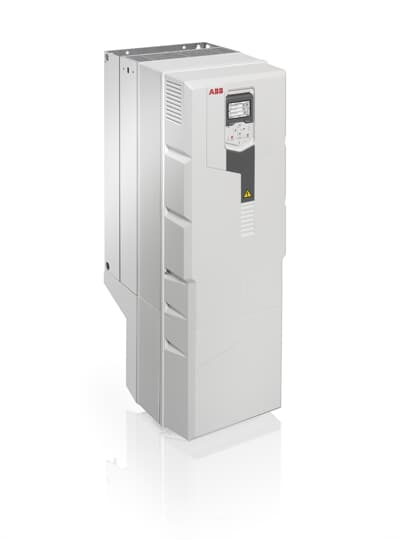

The model ACS580-01-211A-2 is an advanced and versatile variable frequency drive that controls AC motors' speed and torque. It is suitable for various industrial applications, such as HVAC, water and wastewater, mining, etc.

The ACS580-01-211A-2 is a single-phase drive with a power range of 0.75 kW to 2.2 kW and a voltage range of 200 - 240 V. It has a nominal output power of 11 kW (15 HP). The maximum output current is 49 A, and the enclosure rating is IP21 (NEMA 1).

This VFD features scalar control (V/f), a standard control panel (SPU-02), a built-in keypad, and an LED display. It supports multiple language options and communication interfaces, such as Modbus RTU, Modbus TCP, Ethernet/IP, PROFIBUS DP, and CANopen. The control methods and communication interfaces make integrating with other systems and devices easy.

Regarding environmental conditions, the ACS580-01-211A-2 can operate in an ambient temperature range of - 10°C to + 40°C and a relative humidity range of 5 % to 95 %, non-condensing. You can store it at temperatures ranging from -40°C to +70°C. The VFD can operate at altitudes up to 1000 meters without derating and up to 4000 meters with derating.

The design is compact with dimensions 601 mm in height, 305 mm in width, and 316 mm in depth. The weight of the VFD is 24 kg. It is also certified with CE Marking, UL Listing, C-Tick Marking, and RoHS compliance, ensuring international standards and regulations compliance. Overall, the ACS580-01-211A-2 is a reliable and efficient VFD that can meet the motor control needs of various industrial applications.

Installing the ACS580-01-211A-2 requires careful consideration of safety guidelines and proper equipment handling. Before installing, ensure that you check the drive for any damage that may have occurred during transportation and confirm the inclusion of all accessories.

To prevent overheating, ensure that you install the drive in an enclosure with good ventilation. Design the enclosure to provide adequate clearance for the drive and allow for proper cable routing and connections.

After installation, the drive should be configured and programmed to suit the specific application requirements. The model ACS580-01-211A-2 features an intuitive control panel allowing easy programming and monitoring of the drive's performance.

The ACS580-01-211A-2 is equipped with various protection and safety features. These include motor overload protection, input and output phase loss protection, short circuit protection, ground fault protection, overvoltage protection, Undervoltage protection, IGBT temperature monitoring, thermal motor protection, and safe torque off (STO) function. These features ensure the safe and reliable operation of the VFD and the motor.

The drive requires periodic maintenance to ensure optimal performance and longevity. The maintenance activities include inspection, cleaning, and replacement of parts, as necessary.

Regular inspections on the drive should ensure it operates within the specified parameters. Investigate and promptly correct any abnormal behavior or performance to prevent damage to the equipment. The model should be kept free from moisture and corrosive substances that can affect the performance of the equipment.

The cooling system of the variable frequency drive ACS580-01-211A-2 should be inspected and cleaned regularly to ensure efficient heat dissipation. The air filters should be cleaned or replaced, as necessary, to prevent the accumulation of dust and debris that can affect the drive's performance.
