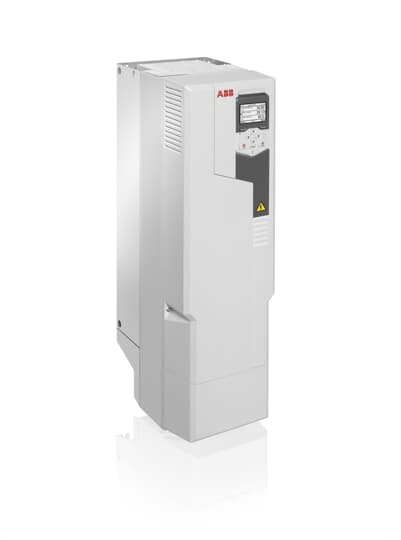

The ACS580-01-169A-2 is a variable frequency drive (VFD) manufactured by ABB and designed for industrial applications. It is efficient and easily manageable, designed especially to control the speed of three-phase AC motors.

The features of this device make it a versatile and efficient solution for controlling three-phase induction motors and permanent magnet synchronous motors. With a wide range of power ratings from 1.1 kW to 250 kW, it can accommodate various motor sizes and applications.

The device is protected against dust and other environmental factors with the IP20 indoor-use enclosure rating. Its compact design, with a height of 311 mm and a width of 200 mm, makes it easy to install in tight spaces.

This device, ACS580-01-169A-2, has a power supply voltage of 380 - 480 V AC and a frequency of 50/60 Hz. Its maximum output current is 169 A, with an overload capacity of 150% for 1 minute and 175% for 2 seconds.

The device supports various communication protocols, including Modbus RTU, PROFIBUS, and Ethernet/IP, making it compatible with various automation systems.

Additionally, ACS580-01-169A-2 can be programmed for specific applications using the ABB Drive composer software, making it highly customizable and adaptable to specific needs.

Energy-saving features such as adaptive programming and sleep mode ensure that the device operates efficiently and minimizes energy consumption. The device can operate within an ambient temperature range of -10°C to 50°C and a humidity range of 5% to 95% non-condensing.

The VFD should be installed on a dry, well-ventilated, and vibration-free surface with sufficient clearance for cooling. Before installing, disconnect the power supply. The ACS580-01-169A-2 drive should be mounted vertically on a flat surface using the four mounting holes provided.

Disconnect and ground the power supply before making any electrical connections to prevent electrical shocks. Ground the VFD following local regulations and standards.

The ACS580-01-169A-2 can be operated using the control panel on the front of the unit. The control panel includes a backlit display and navigation buttons for setting parameters and controlling the motor speed. You can remotely control the VFD using a computer or other device through the communication ports.

To start the motor, power on the drive and set the speed reference using the control panel or remote control. ACS580-01-169A-2 can adjust the output voltage frequency to control the motor speed.

The easy-to-use control panel, with a backlit display and navigation buttons, allows for simple and intuitive operation. Built-in safety features, such as overvoltage and overcurrent protection, provide added security for the motor and the device.

The ACS580-01-169A-2 VFD may encounter electrical, motor, and communication issues. Incorrect wiring or overvoltage conditions can cause electrical faults. Motor faults can be caused by overheating or overloading. Incorrect settings or hardware failure can cause communication faults.

The VFD will typically display an error code on the control panel or communication ports to indicate the source of the problem.

The maintenance of ACS580-01-169A-2 VFD includes several tasks, such as regularly checking for loose connections, cleaning the unit, inspecting for any signs of wear or damage, and replacing worn-out components. To ensure accurate performance and prevent potential issues, periodically calibrate the VFD.
