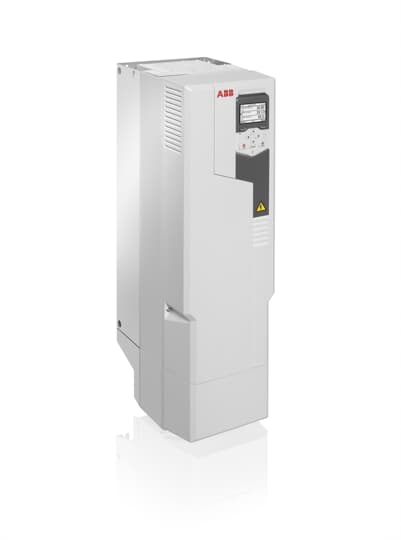

The ACS580-01-114A-2 is a variable frequency drive (VFD) manufactured by ABB and designed for industrial applications. It is a compact, reliable, and easy-to-use VFD that is ideal for controlling the speed of AC motors in industrial applications.

The ACS580-01-114A-2 is a highly functional drive that offers a range of impressive features. It is a single-phase input, three-phase output drive that can operate within a voltage range of 100-120 VAC. The output voltage produced by the device can range from 0-480 VAC. It has a power rating of 1.5 kW or two horsepower, and the rated current is 4.2 A.

The drive also boasts a user-friendly control panel with a graphic display that enables easy navigation of its various functions. The ACS580-01-114A-2 supports multiple communication protocols, including Modbus RTU, Modbus TCP, and Ethernet/IP, making it highly adaptable to different industrial networks.

Besides its impressive functionality, the ACS580-01-114A-2 prioritizes safety, featuring built-in features such as Safe Torque Off (STO), which provides safe motor shutdown in an emergency.

The device can be controlled using V/F or vector control. The ambient temperature range suitable for its operation is between -10°C to 50°C. The device can withstand solid objects larger than 12.5mm and has an IP20 protection rating.

To properly install the ACS580-01-114A-2, several necessary steps should be followed. Before beginning the installation process, it is crucial to disconnect the power supply and discharge any residual energy from the drive.

The first step is to mount the drive in a suitable location, ensuring enough clearance for ventilation and that it is away from any heat sources. To connect the drive to the motor, use appropriate wiring and connectors.

Additional peripherals, such as control panels or external sensors, should be connected to the drive. Finally, it is time to power up the drive and perform a self-diagnostic check to ensure all connections function properly.

You can program the ABB VFD using the built-in control panel or ABB's Drive Composer software on a PC. You need to follow the basic programming steps. The motor parameters, such as rated power, voltage, and frequency, must be set first. Next, the control mode needs to be selected, which can either be V/F control or vector control, depending on the application requirements.

The input and output settings should be configured, including the input voltage range, output voltage range, and maximum current limit. The speed reference source also needs to be set, which can be internal or external, and the speed control parameters, such as acceleration and deceleration time, should be configured.

Finally, you must set the advanced functions such as PID control, fault detection, and protection settings. Follow these programming steps to program the ABB drive and suit the application requirements.

Like any other electrical equipment, regular maintenance is essential to ensure its longevity and reliable operation. Its built-in safety features and compliance with various international standards make it a safe and versatile choice for multiple applications.

With proper installation and programming, the ACS580-01-114A-2 can provide reliable and efficient performance for many years. Regularly clean, inspect and monitor the cooling system, electrical connections, control panel, and implementation of the VFD.
