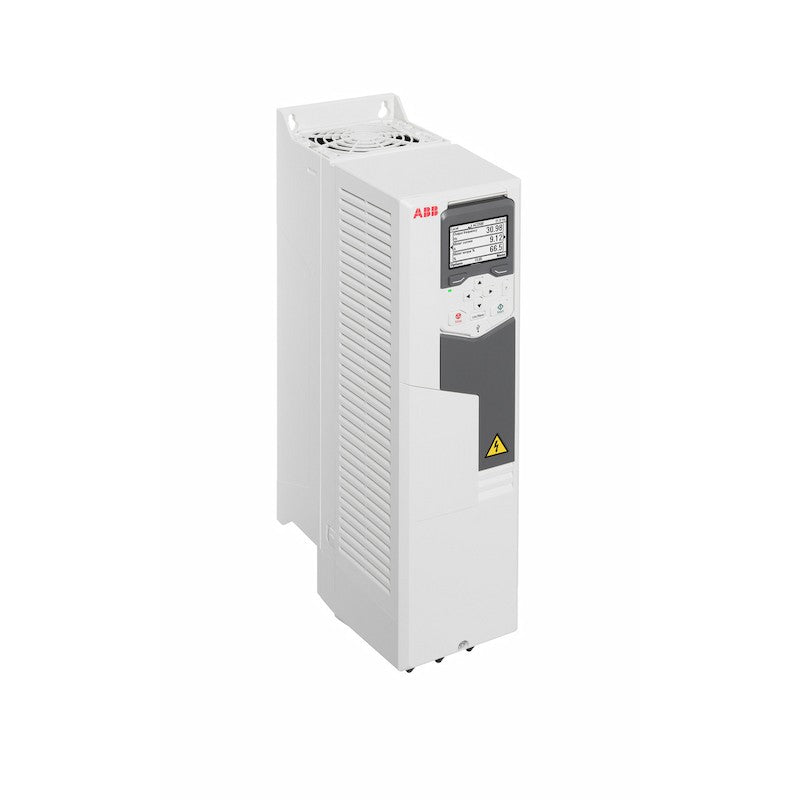

ABB ACS580-01-09A0-6

The ABB ACS580-01-09A0-6 model is a flexible variable frequency drive developed for industrial applications that require precision motor control and energy economy. It provides optimized operation and increased production in various sectors thanks to its innovative features and dependable performance.

The ACS580-01-09A0-6 drive has a current rating of 9 amperes (A), indicating its nominal current-carrying capacity for light-duty operation. It operates within a voltage range of 500-600 volts (V).

The 09A0-6 variable frequency drive has configurable output frequencies ranging from 0 to 500 hertz (Hz). This frequency range enables versatile motor speed and efficient performance control.

It includes numerous safety features to protect the drive, motor, and personnel. These characteristics include motor overload protection, short circuit protection, ground fault protection, and safe torque-off (STO) capability. They provide safe and dependable functioning while adhering to industry safety regulations.

To improve energy efficiency, the drive includes energy optimization capabilities. It may have built-in energy-saving features like variable speed control, sleep mode, and automatic energy optimization algorithms. These qualities aid in lowering energy usage, operating expenses, and environmental effect.

The ACS580-01-09A0-6 drive has a modular design allowing easy customization and expansion. It allows for the insertion of additional modules, such as I/O extension modules or communication modules, to fulfill the needs of individual applications.

This VFD is outfitted with an easy-to-use control panel with a built-in keyboard and display. This user-friendly interface simplifies setup and troubleshooting processes by allowing simple programming, parameter adjustment, real-time drive status, and diagnostics monitoring.

Adaptive programming features are included in the drive, allowing it to adapt and optimize its performance based on the unique application and load conditions. This feature improves energy efficiency, motor control, and system performance.

Several rules should be followed when installing the ACS580-01-09A0-6 variable frequency drive. Installing the drive on a flat, rigid surface with adequate clearance and ventilation for heat dissipation is critical.

The mounting surface must be strong enough to withstand the weight of the drive and any extra modules or accessories that may be attached.

Follow local electrical codes and safety standards when connecting. Before making any connections, turn off the power supply to the drive and discharge any excess electrical energy.

To ensure safety and performance, ground the drive according to appropriate safety standards and local electrical codes.

Install the drive in an area with adequate cooling and ventilation to ensure appropriate operating temperatures. Depending on the installation environment, you may require additional cooling or ventilation equipment.

Configure the drive with the application's specifications and settings once physically mount it. Testing and commissioning the drive after installation and programming are critical.

To avoid interference and ensure signal integrity, pay close attention to proper cable routing. Keep power and control cables apart and avoid running them in parallel. Ensure that wires are appropriately sized and terminated.

Please consider the operational environment where you will deploy the drive (ACS580-01-09A0-6). Temperature, humidity, dust, and vibration can all affect the drive's performance and durability. If necessary, provide suitable environmental protection, such as enclosures or supplementary cooling methods that aid in the extraordinary performance of the drive.
