ABB ACS580-01-088A-2

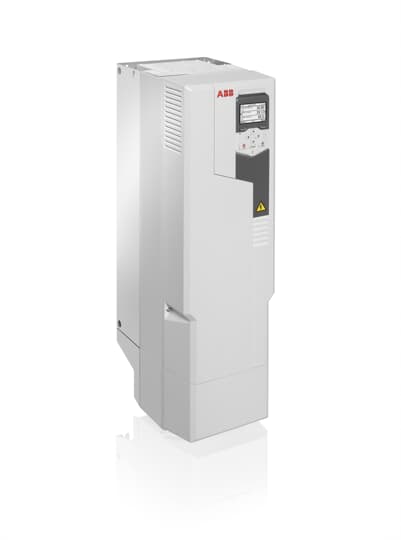

ABB manufactures this variable frequency drive (VFD), model number ACS580-01-088A-2. It is designed to regulate the speed of three-phase asynchronous motors in various applications, from fans and pumps to conveyors and mixers.

The electrical specifications of the variable frequency drive ACS580-01-088A-2 state that the input voltage is three-phase, 380-480V, with a power rating of 75 kW. The module's preferred input current is 126 A, with a standard input frequency of 50/60 Hz 5%.

The drive's maximum allowable load is 150% for 60 seconds and 175% for 2 seconds. There is a three-phase, 0-1000V output voltage. In contrast, this model has a maximum current draw of 88 A and an output frequency range of up to 500 Hz.

The Control and Performance Specifications for this system outline the different methods and capabilities for controlling and regulating the system. The control method can be Scalar (V/F) or vector control with sensorless vector control (SVC).

The system's speed range is from 0 to 500 Hz, with a frequency resolution of 0.01 Hz. Control accuracy is at ±0.5% of maximum output frequency, while torque control accuracy is at ±10% of maximum output torque.

To further enhance the braking capability of the ACS580-01-088A-2 drive, a standard brake chopper is included, with an optional external brake resistor. The starting torque should be 150% at 1 Hz, while the maximum ambient temperature should be 50°C (122°F). The system's altitude is 1000 m (3280ft) without derating, ensuring its performance remains optimal even in high-altitude areas.

Install this ACS580-01-088A-2 variable frequency drive in a dry place, dust-free, and has enough room for cooling, maintenance, and ventilation. Use the proper wiring to connect the VFD to the motor, and make sure the motor is grounded appropriately.

Set the ACS580-01-088A-2 parameters to the needs of the application and the motor's specifications. Check the module's functionality, and ensure all safety features operate properly. A PC or mobile device connected via one of the several communication channels can remotely control the model and use the user-friendly control panel.

Using the display or remote control, monitor the motor's operation, such as current, voltage, and frequency. For precise speed control, set and modify the PID control parameters. You can turn on and off the STO feature for safe functioning. Track and identify issues using the fault history logging and fault diagnostics features.

After installing the ACS580-01-088A-2, turn on the VFD by switching the power supply. Using the control panel, set the motor's characteristics, such as speed, acceleration, and deceleration time. On the control panel, click the run button to start the motor.

To ensure the operation of ACS580-01-088A-2 is reliable and effective, routine maintenance is necessary. Some general guidelines for maintenance include; maintaining a dust- and debris-free environment around the VFD. Examine the VFD cooling system and clean the heat sink if necessary. Check the power and control cords attached to the VFD regularly for wear or damage.

VFD capacitors should be examined and changed as necessary. Examine the safety features, such as the overcurrent and overvoltage safeguards. Update the essential software and the firmware when needed.
