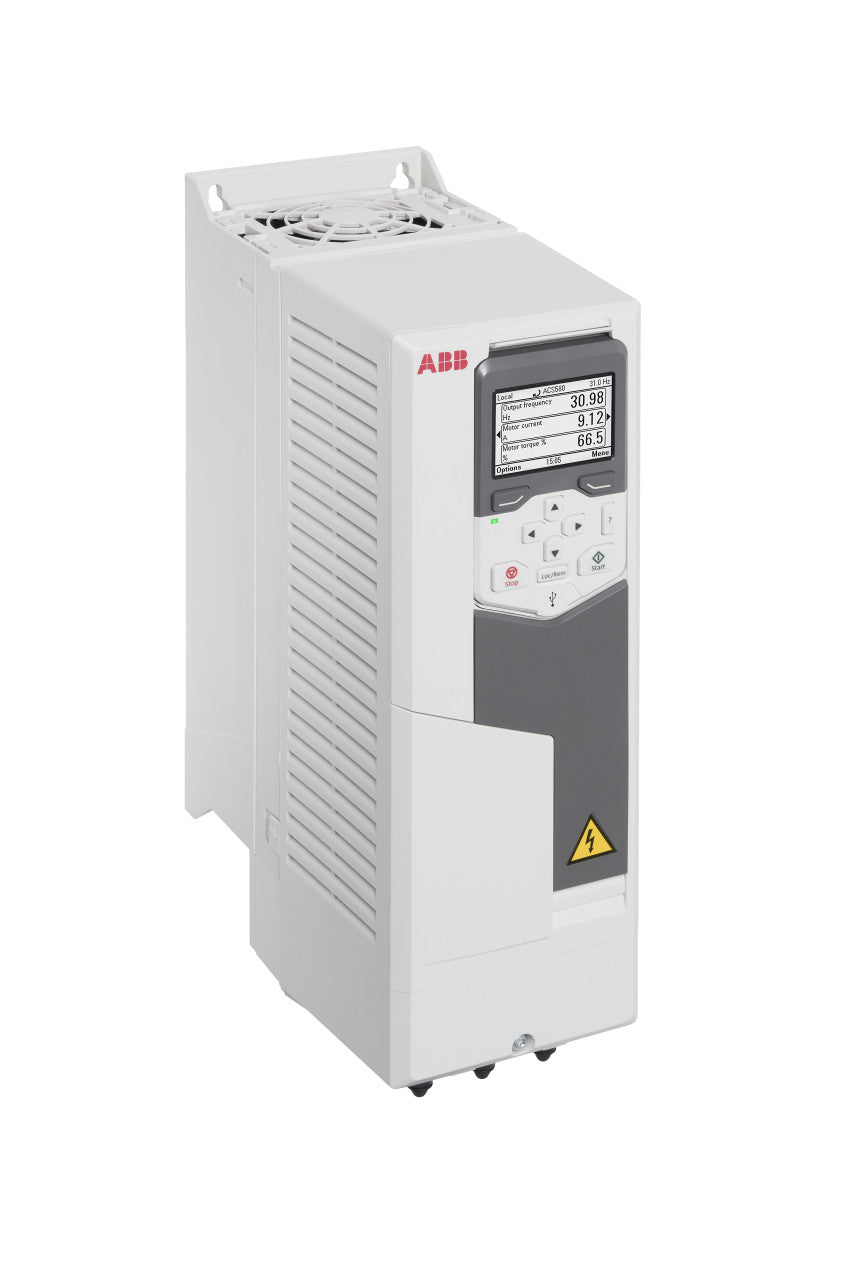

ABB ACS580-01-032A-6

The ACS580-01-032A-6 model is ABB's variable frequency drive (VFD). The advanced motor control capabilities can control pumping, fan, ventilation systems, compressors, centrifuges, and separators used in various industrial processes.

The drive ACS580-01-032A-6 is intended for use with motors rated at a maximum current of 32 amps (A). Within this current range, it provides precise motor control and economical operation. Its maximum output current is 48.6 Amperes (A).

The drive generates an adjustable output voltage appropriate for the attached motor. The output frequency range of this drive is tunable from 0 to 500 hertz (Hz). Precisely controlling motor speed and torque is possible thanks to the extensive frequency range.

It offers a variety of connectivity choices, including Modbus, Profibus, and Ethernet communication interfaces. These interfaces enable easy integration with third-party devices and control systems.

The ACS580-01-032A-6 includes safety features to protect employees and equipment. These include motor overload protection, short circuit protection, phase loss protection, and ground fault protection.

The ACS580-01-032A-6 frequency drive considers electromagnetic interference (EMI) to ensure reliable operation in various industrial environments. EMI refers to the electromagnetic emissions and susceptibilities that can interfere with the functioning of electronic devices and systems.

It complies with relevant international electromagnetic compatibility (EMC) standards and regulations. It is subjected to extensive testing to verify that it fulfills the required emission and immunity levels, lowering the possibility of interference with other equipment and systems.

Internal EMI filters are included in the drive (ACS580-01-032A-6) to reduce electromagnetic noise and harmonics in the power supply network. These filters aid EMC compliance and reduce the influence on other sensitive equipment connected to the same power network.

The drive's housing is created with adequate shielding measures to prevent electromagnetic radiation from escaping and interfering with surrounding electronics.

Furthermore, the drive includes grounding elements that aid in the diversion of electrical noise and the maintenance of a steady and clean electrical environment.

Proper cabling and wiring practices are critical in reducing EMI. We recommend using shielded cables for power and control connections, especially when routing wires near sensitive equipment or over long distances. Correct grounding and power and control wiring isolation can help to reduce the possibility of electromagnetic interference.

The ACS580-01-032A-6 drive has several user interface options to make operation and monitoring easier. These interface choices allow quick access to drive parameters, diagnostics, and status information.

The drive includes a built-in keypad display on the front panel. Users can use this keypad to navigate menus, modify drive settings, and monitor critical drive characteristics. It provides a simple interface for controlling and monitoring the drive locally.

External devices can be attached to the ACS580-01-032A-6 drive for sophisticated control and monitoring. Connection to PLCs (Programmable Logic Controllers), HMI (Human-Machine Interfaces), or SCADA (Supervisory Control and Data Acquisition) systems is one example.

These external devices give additional monitoring and control capabilities while seamlessly integrating with existing control systems.

ABB provides software that enables customers to connect to the drive using a computer or a mobile device. These software tools enable advanced monitoring, configuration, diagnostics, and a complete user interface for drive operation.
