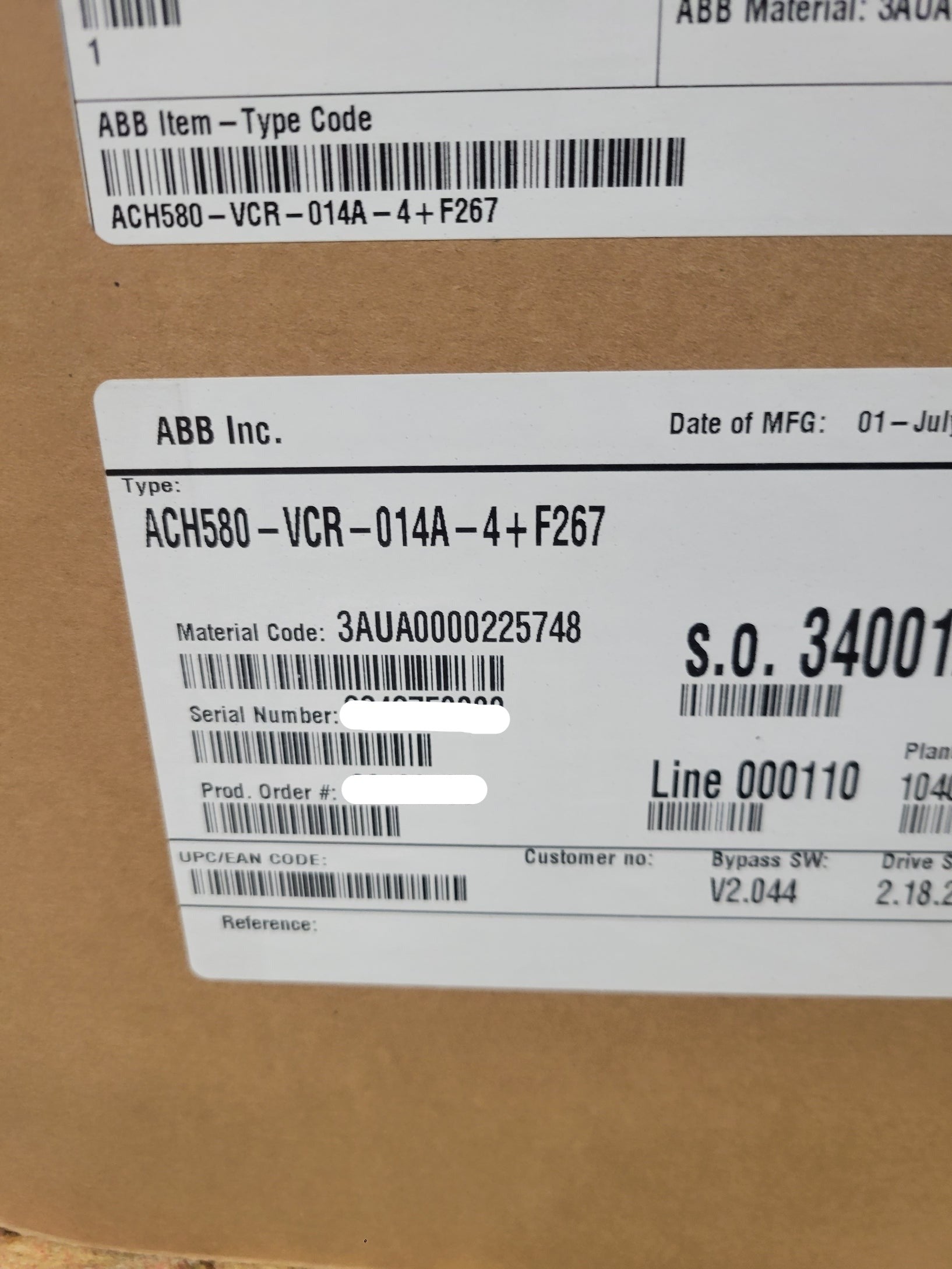

ABB ACH580-VCR-014A-4+F267
SKU: ACH580-VCR-014A-4+F267-FS
We have 1 in stock
Estimated delivery: September 5th - September 7th
Order for next-day shipment.
- Regular price
-
$3,406.00
- Sale price
- $3,406.00
New
$3,406
1 in stock
Ships today
Description
The ABB ACH580-VCR-014A-4+F267 is an ACH580 drive in a vertical E-Clipse bypass configuration with a circuit breaker disconnect rated 10 HP (14.0 A) on 380-480 VAC, 3-phase input. The ACH580 is ABB's current-generation HVAC drive family, used on fans, pumps, cooling towers, and air handling equipment in commercial and institutional buildings.
The ACH580 platform includes the HVAC control panel with Bluetooth option, embedded BACnet MS/TP, Modbus RTU, and Johnson Controls N2 protocols, built-in PID controllers, preprogrammed protection circuits, and dedicated HVAC application macros. The bypass allows the motor to run across the line if the drive is taken out of service.
Technical Specifications
| Manufacturer | ABB |
| Series | ACH580 (HVAC drive) |
| Part Number | ACH580-VCR-014A-4+F267 |
| Power Rating | 10 HP |
| Configuration | Vertical E-Clipse bypass with circuit breaker disconnect |
| Output Current | 14.0 A |
| Input Voltage | 380-480 VAC, 3-phase |
| Input Frequency | 50/60 Hz |
| Enclosure | UL Type 1 / IP21, wall mount |
| Communications | BACnet MS/TP, Modbus RTU, Johnson Controls N2 (embedded) |
| Control Panel | HVAC control panel, Bluetooth option |
| Option Code | +F267 |
| Duty | Variable torque |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $511/yr+3 yrs → 5 total $454/yr+5 yrs → 7 total $341/yrBEST VALUE+8 yrs → 10 total $255/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The ABB ACH580-VCR-014A-4+F267 is an ACH580 drive in a vertical E-Clipse bypass configuration with a circuit breaker disconnect rated 10 HP (14.0 A) on 380-480 VAC, 3-phase input. The ACH580 is ABB's current-generation HVAC drive family, used on fans, pumps, cooling towers, and air handling equipment in commercial and institutional buildings.
The ACH580 platform includes the HVAC control panel with Bluetooth option, embedded BACnet MS/TP, Modbus RTU, and Johnson Controls N2 protocols, built-in PID controllers, preprogrammed protection circuits, and dedicated HVAC application macros. The bypass allows the motor to run across the line if the drive is taken out of service.
Technical Specifications
Manufacturer ABB Series ACH580 (HVAC drive) Part Number ACH580-VCR-014A-4+F267 Power Rating 10 HP Configuration Vertical E-Clipse bypass with circuit breaker disconnect Output Current 14.0 A Input Voltage 380-480 VAC, 3-phase Input Frequency 50/60 Hz Enclosure UL Type 1 / IP21, wall mount Communications BACnet MS/TP, Modbus RTU, Johnson Controls N2 (embedded) Control Panel HVAC control panel, Bluetooth option Option Code +F267 Duty Variable torque -
