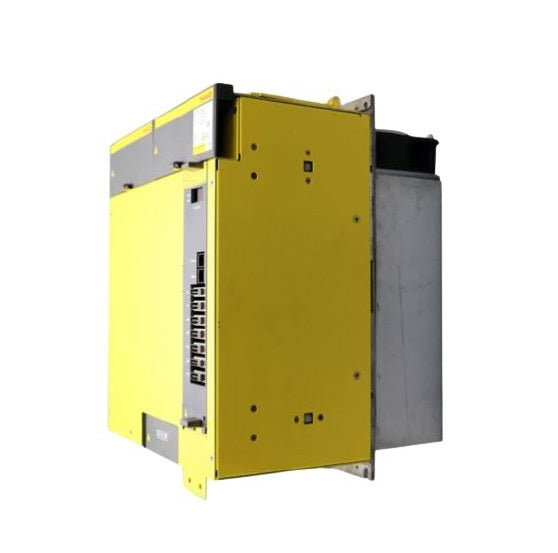

FANUC A06B-6152-H100#H580 Spindle Amplifier Module
SKU: A06B-6152-H100#H580
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
The A06B-6152-H100#H580 is an ALPHA i SPINDLE MODULE MDL AiSP-100HV from the renowned A06B-6152 series, designed to deliver high quality and reliability in demanding applications. This spindle module boasts a tapered shaft for easy installation, a keyed shaft for enhanced stability, and a brake feature that ensures safe operation. With a robust construction that withstands heavy use, it is the ideal choice for both replacements and upgrades in a variety of industrial environments. While the product is available for purchase, customers should call to confirm lead time and note that a core exchange is required, while repair services are not offered at this time.
-
Buying Options
-
Description
The A06B-6152-H100#H580 is an ALPHA i SPINDLE MODULE MDL AiSP-100HV from the renowned A06B-6152 series, designed to deliver high quality and reliability in demanding applications. This spindle module boasts a tapered shaft for easy installation, a keyed shaft for enhanced stability, and a brake feature that ensures safe operation. With a robust construction that withstands heavy use, it is the ideal choice for both replacements and upgrades in a variety of industrial environments. While the product is available for purchase, customers should call to confirm lead time and note that a core exchange is required, while repair services are not offered at this time.
-
Part Number Breakdown
Part number breakdown — A06B-6152-H100#H580
αiSP Series Spindle Amplifier Module (400-V HV input, TYPE B (2 spindle sensor inputs))
Model H100αi SP 100HV Option suffix H580standard specification Specifications
ratedKw 100 ratedCurrentArms 200 weightKg 22 Alarm codes (80)
Full troubleshooting reference for this spindle amplifier:
- Alarm A — Program ROM error
- Alarm A1 — Program ROM error
- Alarm A2 — Program ROM error
- Alarm 01 — Motor overheat
- Alarm 02 — Excessive velocity error
- Alarm 03 — DC link fuse blown
- Alarm 04 — Open phase in the converter main power supply
- Alarm 06 — Temperature sensor disconnected
- Alarm 07 — Overspeed
- Alarm 09 — Main circuit overload/IPM overheat
- Alarm 11 — Converter: DC link overvoltage
- Alarm 12 — DC link overcurrent/IPM alarm
See all 80 alarm codes for this series →
Documentation
Decoded from FANUC documentation (B-65282EN/06). Questions? Call 877-727-8757 or email sales@iac.us.com.
-
