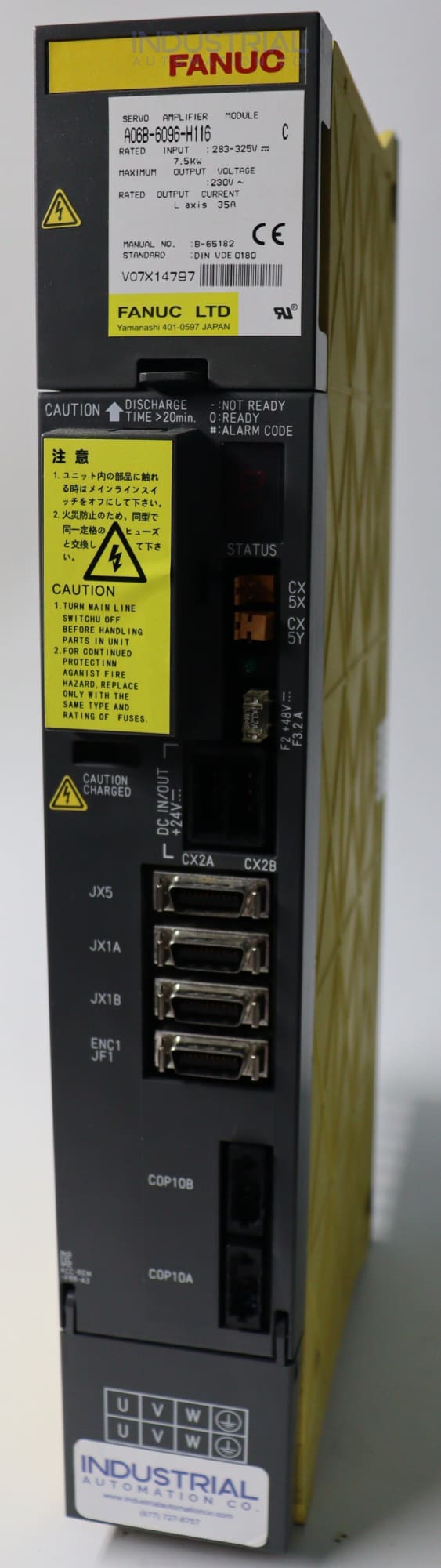

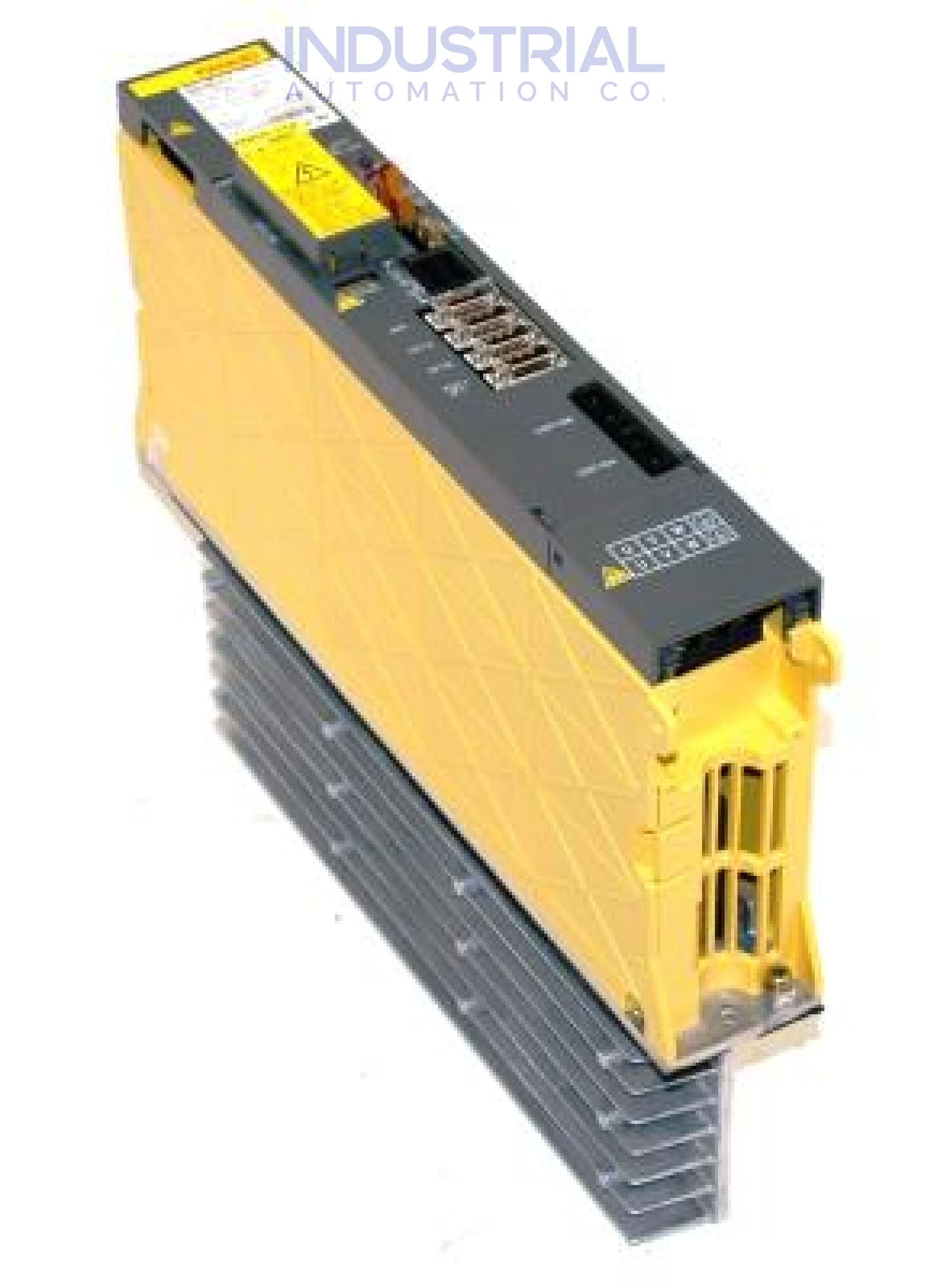

FANUC A06B-6096-H116
SKU: A06B-6096-H116-FS
We have 1 in stock
Estimated delivery: September 8th - September 10th
Order for next-day shipment.
- Regular price
-
$2,831.00
- Sale price
- $2,831.00
New
$2,831
1 in stock
Ships today
IAC Certified Refurbished
$918
2 in stock
Ships today
Description
The FANUC A06B-6096-H116 is a Alpha series servo amplifier module (SVM), model SVM1-130S. It is part of FANUC's modular Alpha series drive system, where it mounts alongside a power supply module (PSM) and spindle module (SPM) on a shared DC link to drive Alpha series AC servo motors on CNC machine tool feed axes.
It is a 130 amp class single-axis module used on larger feed axes of CNC machine tools.
Technical Specifications

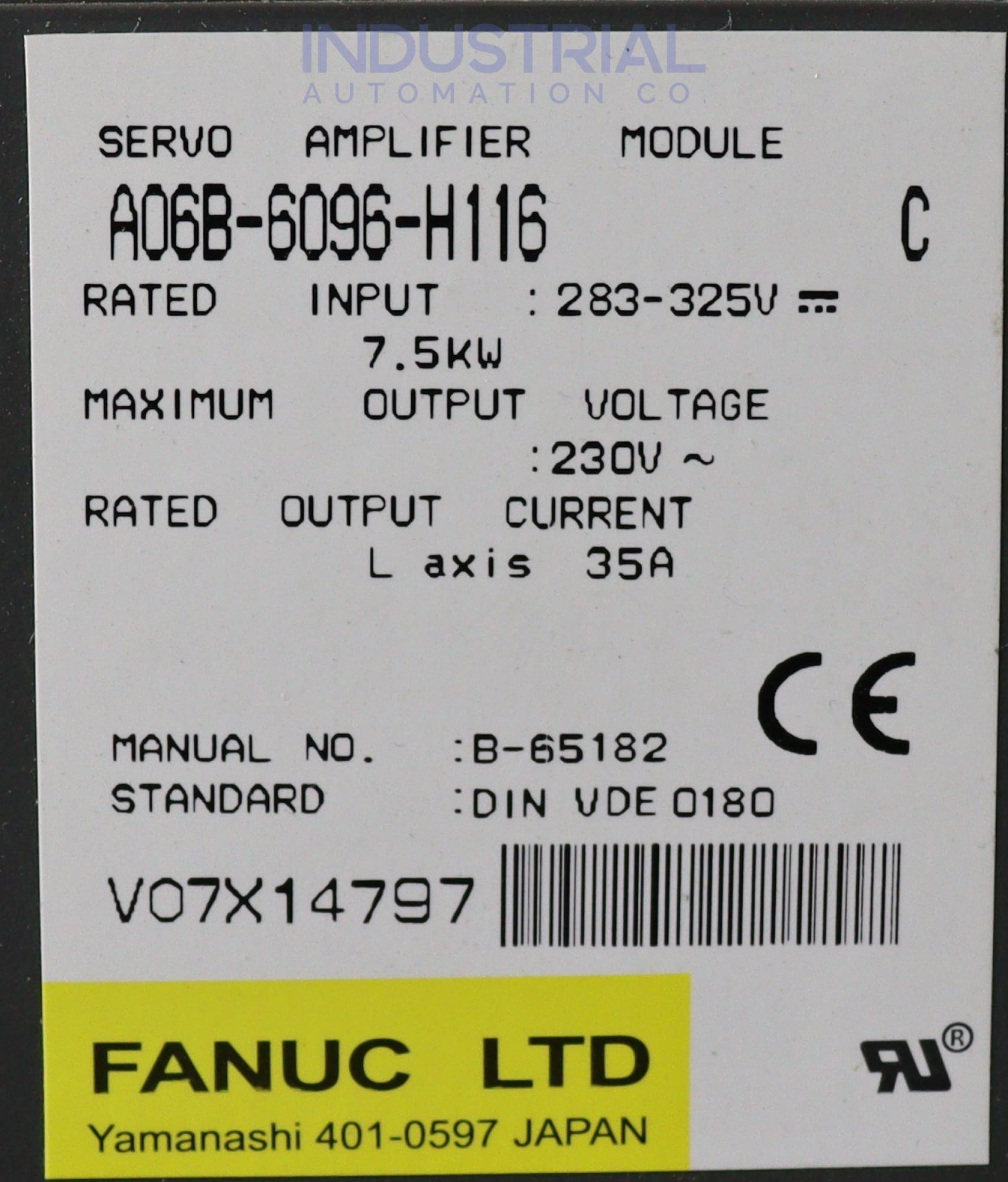

| Part Number | A06B-6096-H116 |
| Manufacturer | FANUC |
| Series | FANUC Alpha servo amplifier module |
| Model | SVM1-130S |
| Axes | 1 |
| Interface | FSSB (FANUC Serial Servo Bus) |
| DC link input | 283-325 VDC |
| Maximum output voltage | 230 VAC |
| Motor type | Alpha series AC servo motors |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $425/yr+3 yrs → 5 total $377/yr+5 yrs → 7 total $283/yrBEST VALUE+8 yrs → 10 total $212/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The FANUC A06B-6096-H116 is a Alpha series servo amplifier module (SVM), model SVM1-130S. It is part of FANUC's modular Alpha series drive system, where it mounts alongside a power supply module (PSM) and spindle module (SPM) on a shared DC link to drive Alpha series AC servo motors on CNC machine tool feed axes.
It is a 130 amp class single-axis module used on larger feed axes of CNC machine tools.
Technical Specifications
Part Number A06B-6096-H116 Manufacturer FANUC Series FANUC Alpha servo amplifier module Model SVM1-130S Axes 1 Interface FSSB (FANUC Serial Servo Bus) DC link input 283-325 VDC Maximum output voltage 230 VAC Motor type Alpha series AC servo motors -
Part Number Breakdown
Part number breakdown — A06B-6096-H116
α Series Servo Amplifier Module SVM (FSSB interface, 200-V input)
Alarm codes (17)
Full troubleshooting reference for this servo amplifier:
- Alarm 8 — Abnormal Current Alarm 8
- Alarm 9 — Abnormal Current Alarm 9
- Alarm A — Abnormal Current Alarm A
- Alarm b — Abnormal Current Alarm b
- Alarm C — Abnormal Current Alarm C
- Alarm d — Abnormal Current Alarm d
- Alarm E — Abnormal Current Alarm E
- Alarm 8. — IPM Alarm 8.
- Alarm 9. — IPM Alarm 9.
- Alarm A. — IPM Alarm A.
- Alarm b. — IPM Alarm b.
- Alarm C. — IPM Alarm C.
See all 17 alarm codes for this series →
Documentation
Decoded from FANUC documentation (B-65162E/03). Questions? Call 877-727-8757 or email sales@iac.us.com.
-
