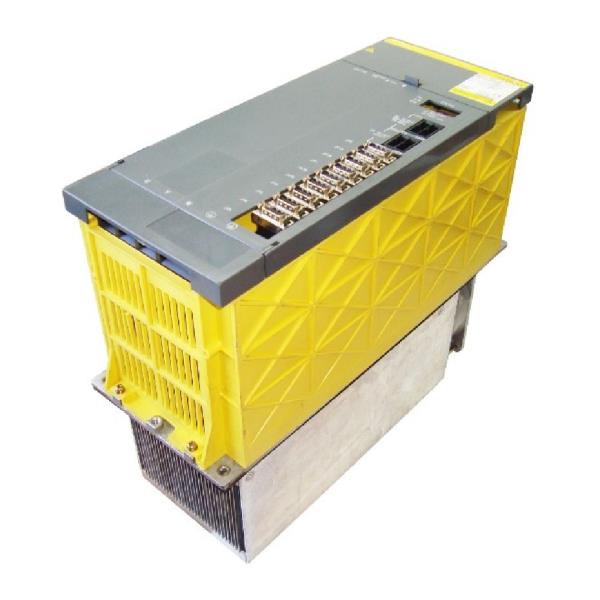

FANUC A06B-6088-H226#H500 Spindle Amplifier Module
SKU: A06B-6088-H226#H500
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
The FANUC A06B-6088-H226#H500 Spindle Amplifier Module, part of the distinguished A06B-6088 series, is engineered for exceptional precision and reliability in industrial applications. Specifically designed to interface with spindle motors featuring variant sensor feedback options like Model aP40 or aP26, this module guarantees seamless operation. While it shares similarities with its counterparts in the series, the A06B-6088-H226#H500 differentiates itself through unique firmware, ensuring compatibility with a select range of systems. TIE provides comprehensive technical support to assist with inquiries regarding this model and its related components, including A06B-6088-H226#H501 and A06B-6088-H226#500CS. Additionally, TIE offers repair services and a core credit exchange program for enhanced customer support.
-
Buying Options
-
Description
The FANUC A06B-6088-H226#H500 Spindle Amplifier Module, part of the distinguished A06B-6088 series, is engineered for exceptional precision and reliability in industrial applications. Specifically designed to interface with spindle motors featuring variant sensor feedback options like Model aP40 or aP26, this module guarantees seamless operation. While it shares similarities with its counterparts in the series, the A06B-6088-H226#H500 differentiates itself through unique firmware, ensuring compatibility with a select range of systems. TIE provides comprehensive technical support to assist with inquiries regarding this model and its related components, including A06B-6088-H226#H501 and A06B-6088-H226#500CS. Additionally, TIE offers repair services and a core credit exchange program for enhanced customer support.
-
Part Number Breakdown
Part number breakdown — A06B-6088-H226#H500
α Series Spindle Amplifier Module SPM (200-V input, 15-45 kW)
Amplifier model H226SPM-26 (Type 1) Specifications
kw 26 detectorType 1 motorOutputKw 22 ratedCurrentArms 111 weightKg 10.7 Alarm codes (51)
Full troubleshooting reference for this spindle amplifier:
- Alarm A, A0 — SPM control program not running
- Alarm A1, A2, Ax — SPM control program processing error
- Alarm A3 — SPM control PCB clock error
- Alarm A4 — SRAM parity error
- Alarm 01 — Motor overheat
- Alarm 02 — Excessive speed deviation
- Alarm 03 — DC link fuse blown
- Alarm 04 — PSM main circuit open phase
- Alarm 07 — Overspeed
- Alarm 09 — Heat sink overheat
- Alarm 11 — PSM DC link overvoltage
- Alarm 12 — Excessive DC link/motor current
See all 51 alarm codes for this series →
Documentation
Decoded from FANUC documentation (B-65162E/03). Questions? Call 877-727-8757 or email sales@iac.us.com.
-
