FANUC A06B-6087-H137
SKU: A06B-6087-H137-FS
We have 1 in stock
Estimated delivery: September 8th - September 10th
Order for next-day shipment.
- Regular price
-
$5,040.00
- Sale price
- $5,040.00
New
$5,040
1 in stock
Ships today
IAC Certified Refurbished
Available
Request a quote
Description

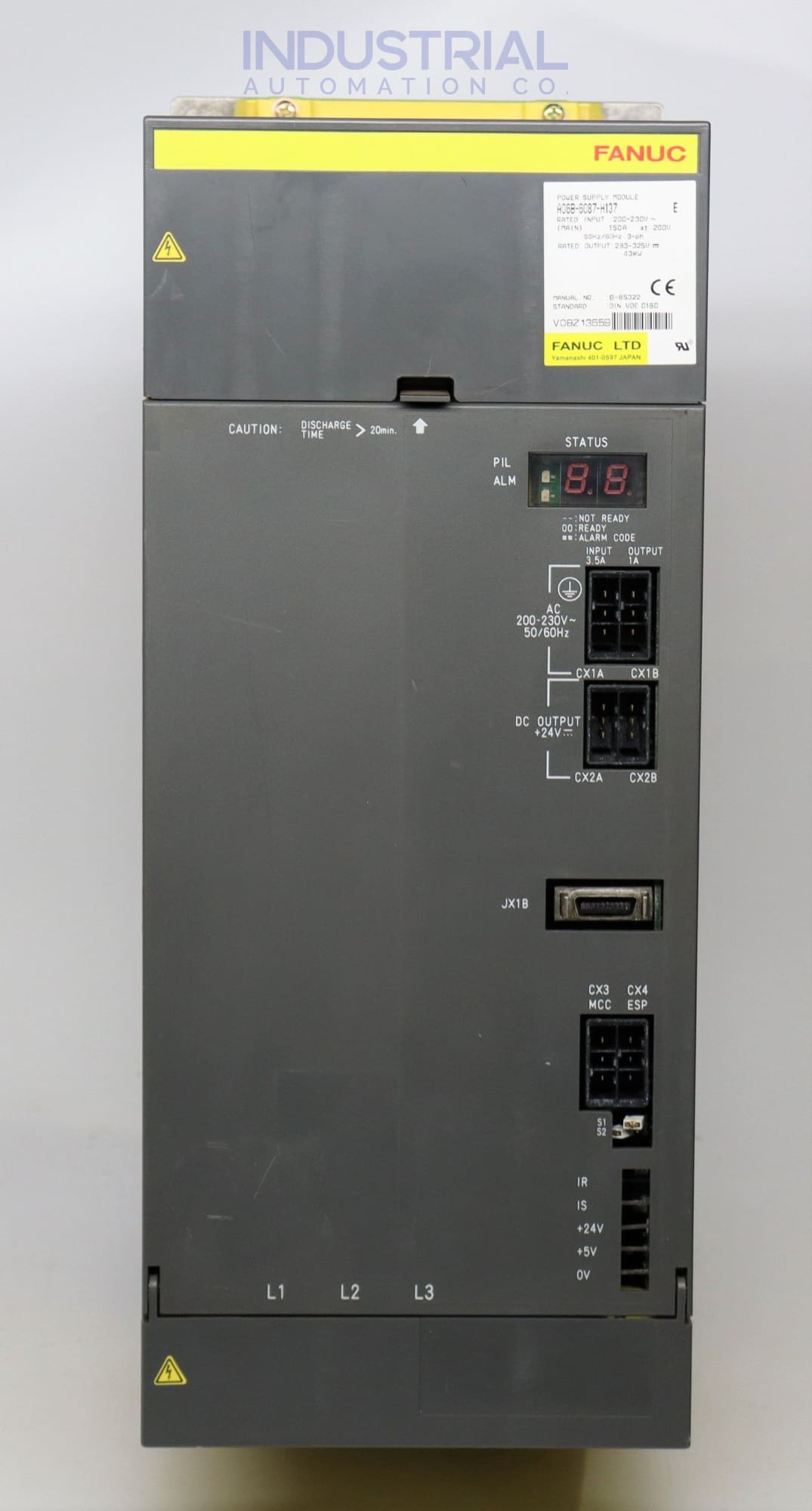

The FANUC A06B-6087-H137 is an Alpha series Power Supply Module, model PSM-37. In the Alpha drive lineup the PSM rectifies 3-phase 200 V-class input to the common 283-325 VDC link that powers the servo (SVM) and spindle (SPM) amplifier modules, with line-regenerative braking energy handling.
The PSM-37 is one of the larger 200 V-class supplies in the range, sized for 37 kW class drive lineups on large CNC machine tools.
Technical Specifications
| Manufacturer | FANUC |
| Part Number | A06B-6087-H137 |
| Product Type | Power supply module |
| Series | FANUC Alpha drive system |
| Model | PSM-37 |
| Rated Capacity | 37 kW |
| Input | 200-230 VAC, 3-phase |
| DC Link Output | 283-325 VDC |
| Regeneration | Line regenerative |
| Application | DC link supply for Alpha SVM/SPM modules |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $756/yr+3 yrs → 5 total $672/yr+5 yrs → 7 total $504/yrBEST VALUE+8 yrs → 10 total $378/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The FANUC A06B-6087-H137 is an Alpha series Power Supply Module, model PSM-37. In the Alpha drive lineup the PSM rectifies 3-phase 200 V-class input to the common 283-325 VDC link that powers the servo (SVM) and spindle (SPM) amplifier modules, with line-regenerative braking energy handling.
The PSM-37 is one of the larger 200 V-class supplies in the range, sized for 37 kW class drive lineups on large CNC machine tools.
Technical Specifications
Manufacturer FANUC Part Number A06B-6087-H137 Product Type Power supply module Series FANUC Alpha drive system Model PSM-37 Rated Capacity 37 kW Input 200-230 VAC, 3-phase DC Link Output 283-325 VDC Regeneration Line regenerative Application DC link supply for Alpha SVM/SPM modules -
Part Number Breakdown
Part number breakdown — A06B-6087-H137
α Series Power Supply Module PSM (regenerative, 200-V input, 15-45 kW)
Module model H137PSM-37 Specifications
ratedOutputKw 37 inputVoltage 200/220/230VAC +10%,-15%, 3-phase, 50/60Hz powerEquipmentKva 54 maxOutputKw 70 weightKg 10.7 Alarm codes (30)
Full troubleshooting reference for this power supply:
- Alarm PSM 01 — Main circuit overcurrent/overload/control voltage drop (IPM) or input overcurrent
- Alarm PSM 02 — Control circuit cooling fan stopped / control voltage drop
- Alarm PSM 03 — Main circuit heat sink overtemperature
- Alarm PSM 04 — DC link voltage drop
- Alarm PSM 05 — Open phase / capacitor recharge failure
- Alarm PSM 06 — Input open phase
- Alarm PSM 07 — DC link overvoltage
- Alarm PSMV 01 — DC link overcurrent
- Alarm PSMV 02 — Control circuit cooling fan stopped
- Alarm PSMV 03 — Main circuit heat sink overtemperature
- Alarm PSMV 04 — DC link voltage drop
- Alarm PSMV 05 — Capacitor recharge failure
See all 30 alarm codes for this series →
Documentation
Decoded from FANUC documentation (B-65162E/03). Questions? Call 877-727-8757 or email sales@iac.us.com.
-
