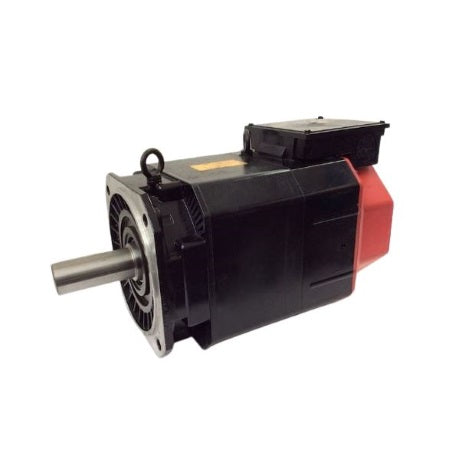

FANUC A06B-1406-B100 AC Spindle Motor
SKU: A06B-1406-B100
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
The A06B-1406-B100 is an exceptional AC spindle model designed for precision machining operations. With a rotational speed of 6,000 to 10,000 RPM, this spindle ensures high-speed performance, making it ideal for demanding machining tasks. Its flange mount design allows for secure installation, reducing vibrations and enhancing operational stability. The slick shaft design minimizes friction, promoting durability and extended service life. This spindle features a rear-mounted configuration, compatible with tapered shafts for easy setup. Notably, it includes an incremental encoder for precise feedback control. Please be aware that this item requires freight shipping due to its size, and while core exchange is mandatory, repair services are available. Invest in the A06B-1406-B100 to experience unmatched machining precision and stability.
-
Buying Options
-
Description
The A06B-1406-B100 is an exceptional AC spindle model designed for precision machining operations. With a rotational speed of 6,000 to 10,000 RPM, this spindle ensures high-speed performance, making it ideal for demanding machining tasks. Its flange mount design allows for secure installation, reducing vibrations and enhancing operational stability. The slick shaft design minimizes friction, promoting durability and extended service life. This spindle features a rear-mounted configuration, compatible with tapered shafts for easy setup. Notably, it includes an incremental encoder for precise feedback control. Please be aware that this item requires freight shipping due to its size, and while core exchange is mandatory, repair services are available. Invest in the A06B-1406-B100 to experience unmatched machining precision and stability.
-
Part Number Breakdown
Part number breakdown — A06B-1406-B100
FANUC AC Spindle Motor αiI / αiIP series (200-V class, A06B-14xx)
Motor model 1406αiI 6/10000 AC Spindle Motor Specifications
kwCont 5.5 kW (1500-8000 min-1) / 3.7 kW (10000 min-1), S1 kw30min 7.5 kW (1500-8000 min-1) / 5.5 kW (10000 min-1), S2 30min kwS3_60pct 7.5 kW (1500-8000 min-1) / 5.5 kW (10000 min-1), S3 60%, 49 A max speedRangeRpm 1500-10000 ampRating 43 A max (S1 cont.) inputV 115-220 V motor input; 200-230 V 50/60 Hz amp input poles 4 phase 3 insulationClass H ipRating IP54 powerFactorPct 79 windingConnection Δ (delta) ambTempC 0-40 weightKg 51 Alarm codes (80)
Motor-related alarms are displayed by the connected amplifier / CNC. Full troubleshooting reference for this spindle motor:
- Alarm A — Program ROM error
- Alarm A1 — Program ROM error
- Alarm A2 — Program ROM error
- Alarm 01 — Motor overheat
- Alarm 02 — Excessive velocity error
- Alarm 03 — DC link fuse blown
- Alarm 04 — Open phase in the converter main power supply
- Alarm 06 — Temperature sensor disconnected
- Alarm 07 — Overspeed
- Alarm 09 — Main circuit overload/IPM overheat
- Alarm 11 — Converter: DC link overvoltage
- Alarm 12 — DC link overcurrent/IPM alarm
See all 80 alarm codes for this series →
Decoded from FANUC documentation (NAMEPLATE-CONSENSUS). Questions? Call 877-727-8757 or email sales@iac.us.com.
-
