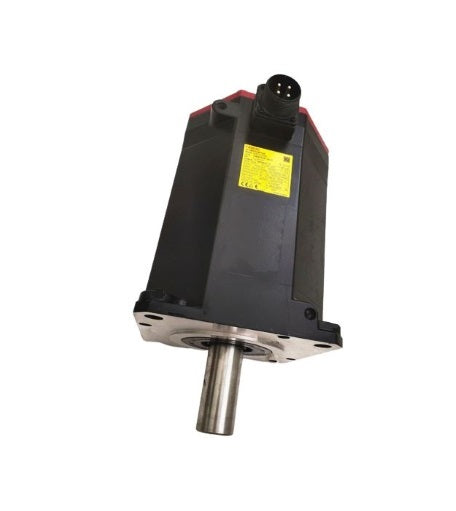

FANUC A06B-0253-B200 AC Servo Motor
SKU: A06B-0253-B200
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description
The A06B-0253-B200 is an AC Servo Motor from the AiF30/4000 series, designed to deliver unwavering performance in various industrial applications. Featuring a straight, keyed shaft with a power rating of a1000 and an integrated brake system, this motor ensures precise control and rapid movement. Its tapered shaft allows for straightforward installation and a secure connection, while the durable construction promises reliable operation even in demanding environments, reducing maintenance needs. This model includes a flange mount for seamless integration into existing systems, and an incremental encoder provides accurate feedback on position and speed. Due to its size and weight, shipping must be arranged via freight. For availability and further inquiries, please contact us. The A06B-0253-B200 AC Servo Motor is a strong choice for both replacements and new projects, promising high performance and precision control.
-
Buying Options
-
Description
The A06B-0253-B200 is an AC Servo Motor from the AiF30/4000 series, designed to deliver unwavering performance in various industrial applications. Featuring a straight, keyed shaft with a power rating of a1000 and an integrated brake system, this motor ensures precise control and rapid movement. Its tapered shaft allows for straightforward installation and a secure connection, while the durable construction promises reliable operation even in demanding environments, reducing maintenance needs. This model includes a flange mount for seamless integration into existing systems, and an incremental encoder provides accurate feedback on position and speed. Due to its size and weight, shipping must be arranged via freight. For availability and further inquiries, please contact us. The A06B-0253-B200 AC Servo Motor is a strong choice for both replacements and new projects, promising high performance and precision control.
-
Part Number Breakdown
Part number breakdown — A06B-0253-B200
αi Series AC Servo Motor
Motor model 0253αiF 30/3000 Shaft & brake (△) 2Straight shaft with a key groove Fan / high-torque brake (○) 0Standard Pulse coder (▽) 0Pulsecoder αiA 1000 Specifications
ratedOutputKw 7 maxSpeedRpm 3000 stallTorqueNm 30 stallCurrentArms 39 rotorInertiaKgCm2 170 weightKg 40 Alarm codes (47)
Motor-related alarms are displayed by the connected amplifier / CNC. Full troubleshooting reference for this servo motor:
- Alarm SV0027 — Invalid digital servo parameter setting
- Alarm 417 — Invalid parameter
- Alarm SV0361 — Pulsecoder phase error (built-in)
- Alarm SV0364 — Soft phase alarm (built-in)
- Alarm SV0365 — LED error (built-in)
- Alarm SV0366 — Pulse error (built-in)
- Alarm SV0367 — Count error (built-in)
- Alarm SV0368 — Serial data error (built-in)
- Alarm SV0369 — Data transfer error (built-in)
- Alarm SV0380 — LED error (separate)
- Alarm SV0381 — Pulsecoder phase error (separate)
- Alarm SV0382 — Count error (separate)
See all 47 alarm codes for this series →
Documentation
Decoded from FANUC documentation (B-65262EN/05, B-65262EN/06, B-65270EN/08, B-65270EN/10). Questions? Call 877-727-8757 or email sales@iac.us.com.
-
