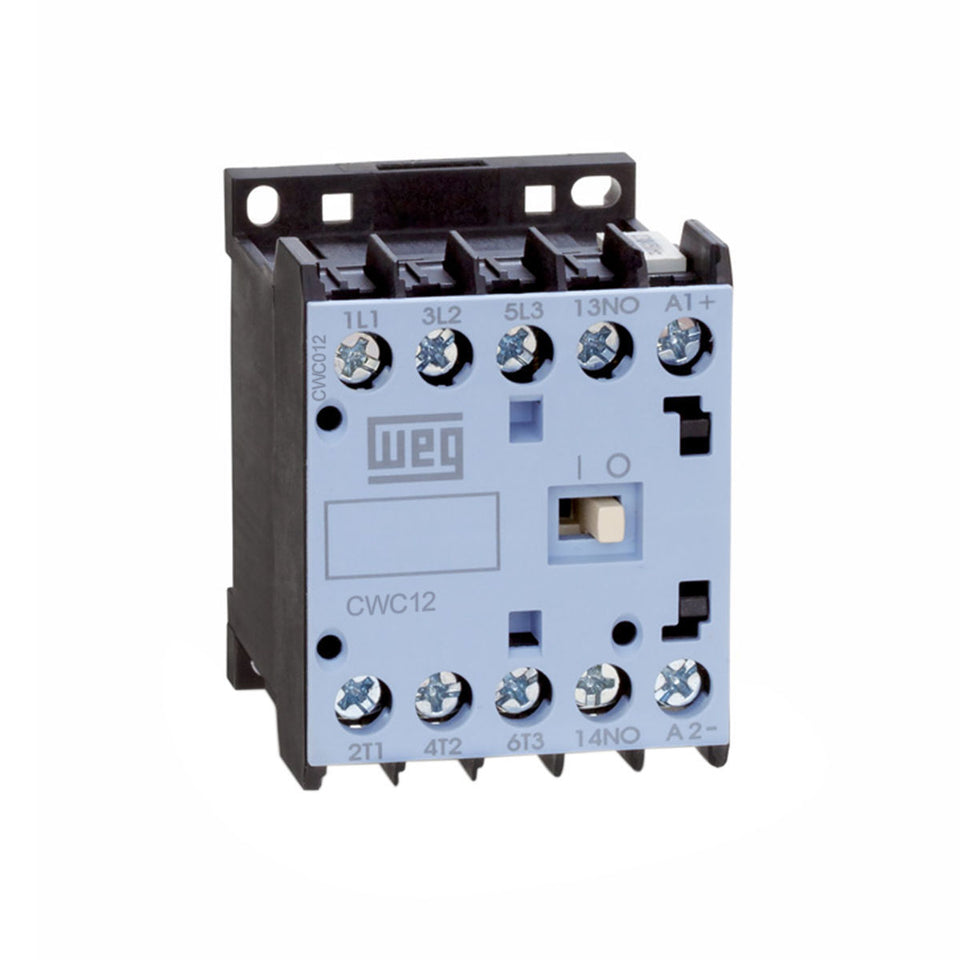

WEG CWC012-01-30V24-X50
SKU : CWC012-01-30V24-X50-FS
Ce produit n’est pas disponible à l’achat en ligne.
Utilisez « Demander un devis » pour obtenir le prix
Description
The WEG CWC012-01-30V24-X50 (WEG material number 15769769) is a minicontactor, a CWC-series compact power contactor. WEG lists it as “MINICONTACTOR BU CWC012-01-30V24-X50”. Key specifications: rated current 12 A, reference CWC0, main contact 3 NO.
Compact yet complete for circuit control and operation, the line comes with a broad accessory range for fast, space-saving assembly in many applications.
WEG CWC012-01-30V24-X50 Technical Specifications
| Manufacturer | WEG |
|---|---|
| Part number | CWC012-01-30V24-X50 |
| WEG material number | 15769769 |
| WEG designation | MINICONTACTOR BU CWC012-01-30V24-X50 |
| Product type | Contactor |
| Series | CWC |
| Rated insulation voltage Ui (pollution degree 3) - IEC 60947-4-1 | 690 V |
| Rated insulation voltage Ui (pollution degree 3) - UL, CSA | 600 V |
| Rated operational frequency - minimum | 25 Hz |
| Rated operational frequency - maximum | 400 Hz |
| Mechanical lifespan (AC) | 10 million |
| Mechanical lifespan (DC) | 12 million |
| Electrical lifespan | 1,2 million |
| Degree of protection IP (IEC 60529) - Main circuit | IP20 |
| Degree of protection IP (IEC 60529) - Control circuit | IP20 |
| Rated current | 12 A |
| Rated current In - AC-4 | 4,5 A |
| Rated operational current Ie AC-1 (θ = 55 °C) | 22 A |
| Rated operational voltage Ue - IEC 60947-4-1 | 690 V |
| Rated operational voltage Ue - UL/CSA | 600 V |
| Height | 58 mm (2.28 in) |
| Width | 45 mm (1.77 in) |
| Depth | 52 mm (2.05 in) |
| Gross weight | 194 g |
| Reference | CWC0 |
| Main contact | 3 NO |
| WEG catalog category | Controls > Contactors > Power contactors > CWC - Compact contactors |
Industrial Automation Co. offers the WEG CWC012-01-30V24-X50 in new condition. Request a quote for current pricing, availability, and lead time.
-
Options d’achat
-
Description
The WEG CWC012-01-30V24-X50 (WEG material number 15769769) is a minicontactor, a CWC-series compact power contactor. WEG lists it as “MINICONTACTOR BU CWC012-01-30V24-X50”. Key specifications: rated current 12 A, reference CWC0, main contact 3 NO.
Compact yet complete for circuit control and operation, the line comes with a broad accessory range for fast, space-saving assembly in many applications.
WEG CWC012-01-30V24-X50 Technical Specifications
Manufacturer WEG Part number CWC012-01-30V24-X50 WEG material number 15769769 WEG designation MINICONTACTOR BU CWC012-01-30V24-X50 Product type Contactor Series CWC Rated insulation voltage Ui (pollution degree 3) - IEC 60947-4-1 690 V Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V Rated operational frequency - minimum 25 Hz Rated operational frequency - maximum 400 Hz Mechanical lifespan (AC) 10 million Mechanical lifespan (DC) 12 million Electrical lifespan 1,2 million Degree of protection IP (IEC 60529) - Main circuit IP20 Degree of protection IP (IEC 60529) - Control circuit IP20 Rated current 12 A Rated current In - AC-4 4,5 A Rated operational current Ie AC-1 (θ = 55 °C) 22 A Rated operational voltage Ue - IEC 60947-4-1 690 V Rated operational voltage Ue - UL/CSA 600 V Height 58 mm (2.28 in) Width 45 mm (1.77 in) Depth 52 mm (2.05 in) Gross weight 194 g Reference CWC0 Main contact 3 NO WEG catalog category Controls > Contactors > Power contactors > CWC - Compact contactors Industrial Automation Co. offers the WEG CWC012-01-30V24-X50 in new condition. Request a quote for current pricing, availability, and lead time.
-
