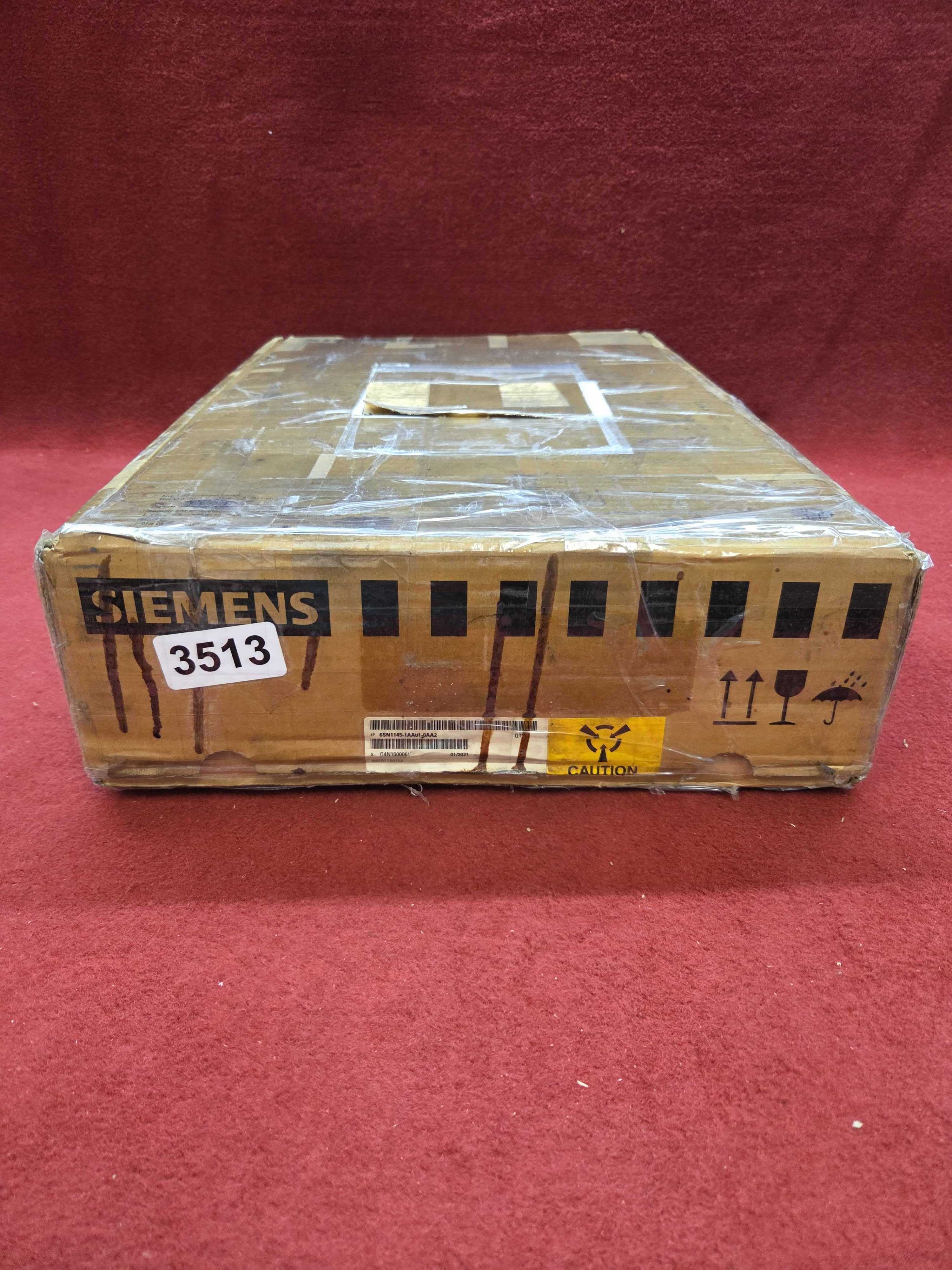

Siemens 6SN1145-1AA01-0AA2
SKU: 6SN1145-1AA01-0AA2-NSO
We have 1 in stock
Estimated delivery: August 28th - August 30th
Order for next-day shipment.
- Regular price
-
$4,114.64
- Sale price
- $4,114.64
New Open Box
$4,114.64
1 in stock
Ships today
IAC Certified Refurbished
$2,099.60
7 in stock
Ships today
Description
The Siemens 6SN1145-1AA01-0AA2 is a SIMODRIVE 611 unregulated infeed module (UE) rated 10 kW / 25 kW peak. It rectifies the 3-phase 400 V supply to the 600 V DC link that feeds the power modules of the drive group; braking energy is dissipated in a pulsed resistor rather than returned to the mains. The infeed module is the first module in every SIMODRIVE 611 drive group and is a standard service part on SINUMERIK-controlled CNC machine tools.
This is the later hardware revision of the 10/25 kW unregulated infeed module.
Technical Specifications
| Series | SIMODRIVE 611 |
| Type | Unregulated infeed module (UE) |
| Power rating | 10 kW / 25 kW peak |
| Supply voltage | 3-phase AC 400 V |
| DC link voltage | 600 V DC |
| Cooling | Internal/external cooling |
| Mains contactor | Integrated, with break (NC) contact |
| Typical application | SIMODRIVE 611 drive groups on CNC machine tools |
-
Buying Options
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $617/yr+3 yrs → 5 total $549/yr+5 yrs → 7 total $411/yrBEST VALUE+8 yrs → 10 total $309/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6SN1145-1AA01-0AA2 is a SIMODRIVE 611 unregulated infeed module (UE) rated 10 kW / 25 kW peak. It rectifies the 3-phase 400 V supply to the 600 V DC link that feeds the power modules of the drive group; braking energy is dissipated in a pulsed resistor rather than returned to the mains. The infeed module is the first module in every SIMODRIVE 611 drive group and is a standard service part on SINUMERIK-controlled CNC machine tools.
This is the later hardware revision of the 10/25 kW unregulated infeed module.
Technical Specifications
Series SIMODRIVE 611 Type Unregulated infeed module (UE) Power rating 10 kW / 25 kW peak Supply voltage 3-phase AC 400 V DC link voltage 600 V DC Cooling Internal/external cooling Mains contactor Integrated, with break (NC) contact Typical application SIMODRIVE 611 drive groups on CNC machine tools -
Part Number Breakdown
Part number reference — 6SN1145-1AA01-0AA2
SIMODRIVE 611 INFEED MODULE, 10/25 KW, UNREGULATED; INTERNAL/EXTERNAL COOLING, MAINS CONTACTOR WITH BREAK CONTACT
Official Siemens catalog description.
Product family SIMODRIVE 611 Infeed Module Series SIMODRIVE 611 Type infeed module Specifications
designation UI module 10 kW (internal/external cooling) moduleType UI (unregulated) infeed module ratedPowerKw 10 s6PowerKw 13 peakPowerKw 25 ratedInputCurrentA 24 pulsedResistorContinuousPowerKw 0.3 pulsedResistorPeakPowerKw 25 pulsedResistorMaxEnergyKws 7.5 maxConnectionCrossSectionMm2 16 moduleWidthMm 100 cooling universal cooling internal/external efficiency 0.98 weightKg 9.5 Source: Siemens catalog sios-103471998-pju.pdf.
Fault codes (96)
Troubleshooting reference for the SIMODRIVE 611 digital Drive System:
- Fault 300007 — Axis %1 drive %2 not present or inactive
- Fault 300008 — Axis %1 drive %2 measuring circuit %3 is not available
- Fault 300009 — Axis %1 drive %2 measuring circuit %3 wrong measuring circuit type (type %4 used)
- Fault 300010 — Axis %1 drive %2 active without NC axis assignment
- Fault 300011 — Axis %1 drive %2 hardware version of spindle not supported
- Fault 300012 — Axis %1 drive %2 hardware version of control module not supported
- Fault 300020 — Drive %1 removed for diagnostics
- Fault 300100 — Drive power failure
- Fault 300101 — Bus communications failure
- Fault 300200 — Drive bus hardware fault
- Fault 300201 — Axis %1 drive %2 timeout during access, error location %3
- Fault 300202 — Axis %1 drive %2 CRC error, error location %3
See all 96 fault codes for this series →
