Delta ECMA-JA1330S4
SKU: ECMA-JA1330S4
This product is not available for online purchase.
Use the Request a quote to get the pricing
Description

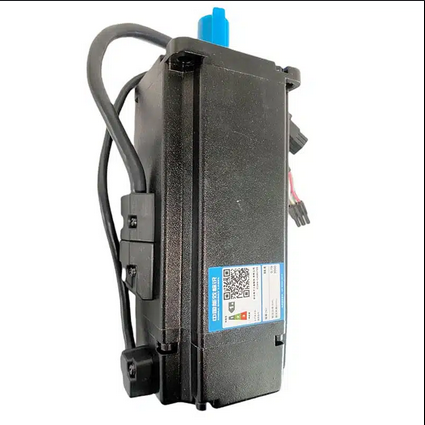

Delta ECMA-JA1330S4 AC Servo Motor
The Delta ECMA-JA1330S4 is a 3 kW AC servo motor designed for high-performance industrial applications. Operating at a rated speed of 3000 RPM, it delivers a rated torque of 9.55 Nm, ensuring precise and efficient motion control. This model features a 17-bit absolute encoder, integrated brake, and oil seal, enhancing its versatility and reliability.
- Rated Output Power: 3 kW
- Rated Speed: 3000 RPM
- Rated Torque: 9.55 Nm
- Voltage Rating: 400 VAC
- Frame Size: 130 mm
- Encoder Type: 17-bit Absolute
- Shaft Type: Keyway with Tap and Oil Seal
- Brake: Included
- Protection Level: IP65
- Weight: Approximately 12.7 kg
Ideal for CNC machinery, robotic arms, and other automation systems requiring high power, precise positioning, and reliable braking capabilities.
-
Buying Options
-
Description
Delta ECMA-JA1330S4 AC Servo Motor
The Delta ECMA-JA1330S4 is a 3 kW AC servo motor designed for high-performance industrial applications. Operating at a rated speed of 3000 RPM, it delivers a rated torque of 9.55 Nm, ensuring precise and efficient motion control. This model features a 17-bit absolute encoder, integrated brake, and oil seal, enhancing its versatility and reliability.
- Rated Output Power: 3 kW
- Rated Speed: 3000 RPM
- Rated Torque: 9.55 Nm
- Voltage Rating: 400 VAC
- Frame Size: 130 mm
- Encoder Type: 17-bit Absolute
- Shaft Type: Keyway with Tap and Oil Seal
- Brake: Included
- Protection Level: IP65
- Weight: Approximately 12.7 kg
Ideal for CNC machinery, robotic arms, and other automation systems requiring high power, precise positioning, and reliable braking capabilities.
-
