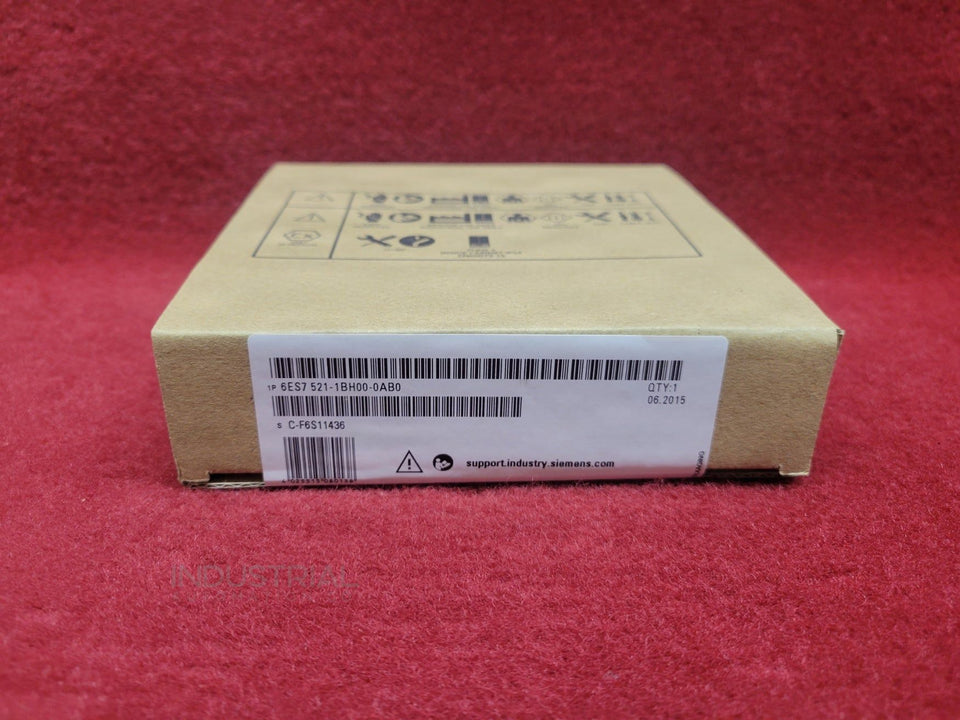

Siemens 6ES7521-1BH00-0AB0
SKU: 6ES7521-1BH00-0AB0-FS
Low stock
Voraussichtliche Lieferung: October 14th - October 16th
Jetzt bestellen für Versand am nächsten Tag.
- Normaler Preis
- €360,95
- Sonderpreis
- €360,95
New
€360,95
Low stock
Versand heute
Description
The Siemens 6ES7521-1BH00-0AB0 is a SIMATIC S7-1500 digital input module DI 16x24 V DC HF (High Feature). Two of its inputs can be used as counters, and the configurable input delay plus channel diagnostics and hardware interrupts make it suited to fast, diagnostics-heavy applications. The front connector is ordered separately.
Technical Specifications
| Series | SIMATIC S7-1500 |
| Type | Digital input module DI 16x24VDC HF |
| Channels | 16, in groups of 16 |
| Input voltage | 24 V DC, input type 3 (IEC 61131) |
| Counter function | 2 inputs usable as counters |
| Input delay | Configurable 0.05 to 20 ms |
| Diagnostics / interrupts | Yes / hardware interrupts supported |
| Front connector | 40-pole, screw or push-in, ordered separately |
| Module width | 35 mm |
-
Kaufoptionen
-
Extend your warranty coverage at checkout 2 yrs included freePricing for this item — you’ll pick a term on the checkout page.
Extended plans are available at checkout on items $200 and up.
+1 yr → 3 total $54/yr+3 yrs → 5 total $48/yr+5 yrs → 7 total $36/yrBEST VALUE+8 yrs → 10 total $27/yrFull defect protection · free RMA evaluation & repair · same‑day replacement when in stock -
Description
The Siemens 6ES7521-1BH00-0AB0 is a SIMATIC S7-1500 digital input module DI 16x24 V DC HF (High Feature). Two of its inputs can be used as counters, and the configurable input delay plus channel diagnostics and hardware interrupts make it suited to fast, diagnostics-heavy applications. The front connector is ordered separately.
Technical Specifications
Series SIMATIC S7-1500 Type Digital input module DI 16x24VDC HF Channels 16, in groups of 16 Input voltage 24 V DC, input type 3 (IEC 61131) Counter function 2 inputs usable as counters Input delay Configurable 0.05 to 20 ms Diagnostics / interrupts Yes / hardware interrupts supported Front connector 40-pole, screw or push-in, ordered separately Module width 35 mm -
Aufschlüsselung der Teilenummer
Part number reference — 6ES7521-1BH00-0AB0
SIMATIC S7-1500, digital input module DI 16xDC 24V HF, 16 channels in groups of 16; input delay 0.05..20 ms; Input type 3 (IEC 61131); Diagnostics, hardware interrupts: Front connector (screw terminals or push-in) to be ordered separately
Official Siemens catalog description.
