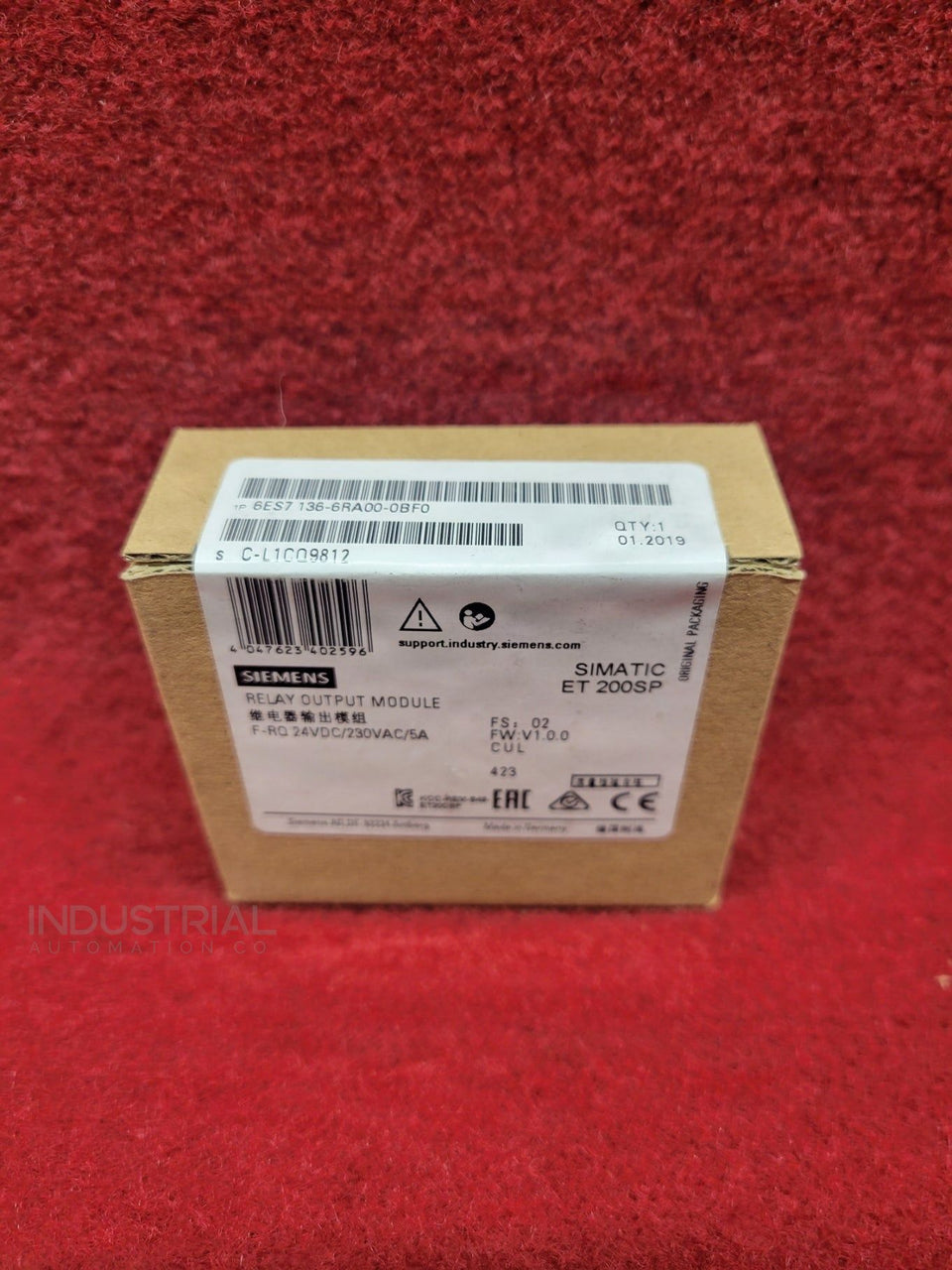

Siemens 6ES7136-6RA00-0BF0
SKU: 6ES7136-6RA00-0BF0-FS
Dieses Produkt ist nicht für den Online-Kauf verfügbar.
Verwenden Sie „Angebot anfordern“, um den Preis zu erhalten
Description
The Siemens 6ES7136-6RA00-0BF0 is a fail-safe relay module (F-RQ) for the SIMATIC ET 200SP distributed I/O system. It provides 1 relay output with 2 normally open contacts in series, rated for 24 V DC and 24 to 230 V AC load voltage with a summation output current of 5 A, in a 20 mm overall width. When controlled by a fail-safe digital output module (for example 6ES7136-6DB00-0CA0), the relay circuit can be used in safety functions up to PL e per ISO 13849-1 and SIL 3 per IEC 61508, providing galvanically isolated safe switching of AC and DC loads.
Technical Specifications
| Series | SIMATIC ET 200SP, fail-safe |
| Function | Fail-safe relay module F-RQ |
| Outputs | 1 relay output (2 NO contacts) |
| Load voltage | 24 V DC / 24-230 V AC |
| Summation current | 5 A |
| Width | 20 mm |
| Safety rating | Up to PL e (ISO 13849-1) / SIL 3 (IEC 61508) when driven by an F-DQ |
-
Kaufoptionen
-
Description
The Siemens 6ES7136-6RA00-0BF0 is a fail-safe relay module (F-RQ) for the SIMATIC ET 200SP distributed I/O system. It provides 1 relay output with 2 normally open contacts in series, rated for 24 V DC and 24 to 230 V AC load voltage with a summation output current of 5 A, in a 20 mm overall width. When controlled by a fail-safe digital output module (for example 6ES7136-6DB00-0CA0), the relay circuit can be used in safety functions up to PL e per ISO 13849-1 and SIL 3 per IEC 61508, providing galvanically isolated safe switching of AC and DC loads.
Technical Specifications
Series SIMATIC ET 200SP, fail-safe Function Fail-safe relay module F-RQ Outputs 1 relay output (2 NO contacts) Load voltage 24 V DC / 24-230 V AC Summation current 5 A Width 20 mm Safety rating Up to PL e (ISO 13849-1) / SIL 3 (IEC 61508) when driven by an F-DQ -
Aufschlüsselung der Teilenummer
Part number reference — 6ES7136-6RA00-0BF0
SIMATIC DP, Electronics module f. ET200SP, F-RQ 1x 24 V DC/24..230VAC/5A ST, 20 mm overall width, 1 relay output (2 NO) Summation output current 5 A, load voltage 24 V DC and 24.. 230 V AC, Can be used up to PL E (ISO 13849-1: 2008)/ SIL 3 (IEC 61508: 2010) if control takes place by (e.g. 6ES7136-6DB00-0CA0) F-DQ
Official Siemens catalog description.
